mechanism will index the first available full cup stack to the dispense position and
drop the cup stack into the cup drop mechanism. Fill the remaining empty cup
stack with cups and replace the turret cap.
5. While the machine is powering up, the LCD will
display the message as shown opposite.
As the machine initializes a small amount of
water is pumped through the system and is
discharged into the waste tray. When the
machine enters standby mode remove the tray and empty the contents. Refit the
waste tray to the machine.
Before using the machine for the first time it is necessary to purge the water
system to ensure any water left in the system during transport is dispensed. Press
button 9 on the Service Keypad fitted inside the door (see page 56). The machine
will pump approximately 14 oz (400ml) of water through the system which will
be heated to operating temperature. Ensure that a suitable container is placed
under the dispense head. Remove the container and empty the contents before
proceeding.
Important: Should the machine fail to fill correctly or leak, turn off the water
and the power to the machine before investigating the fault.

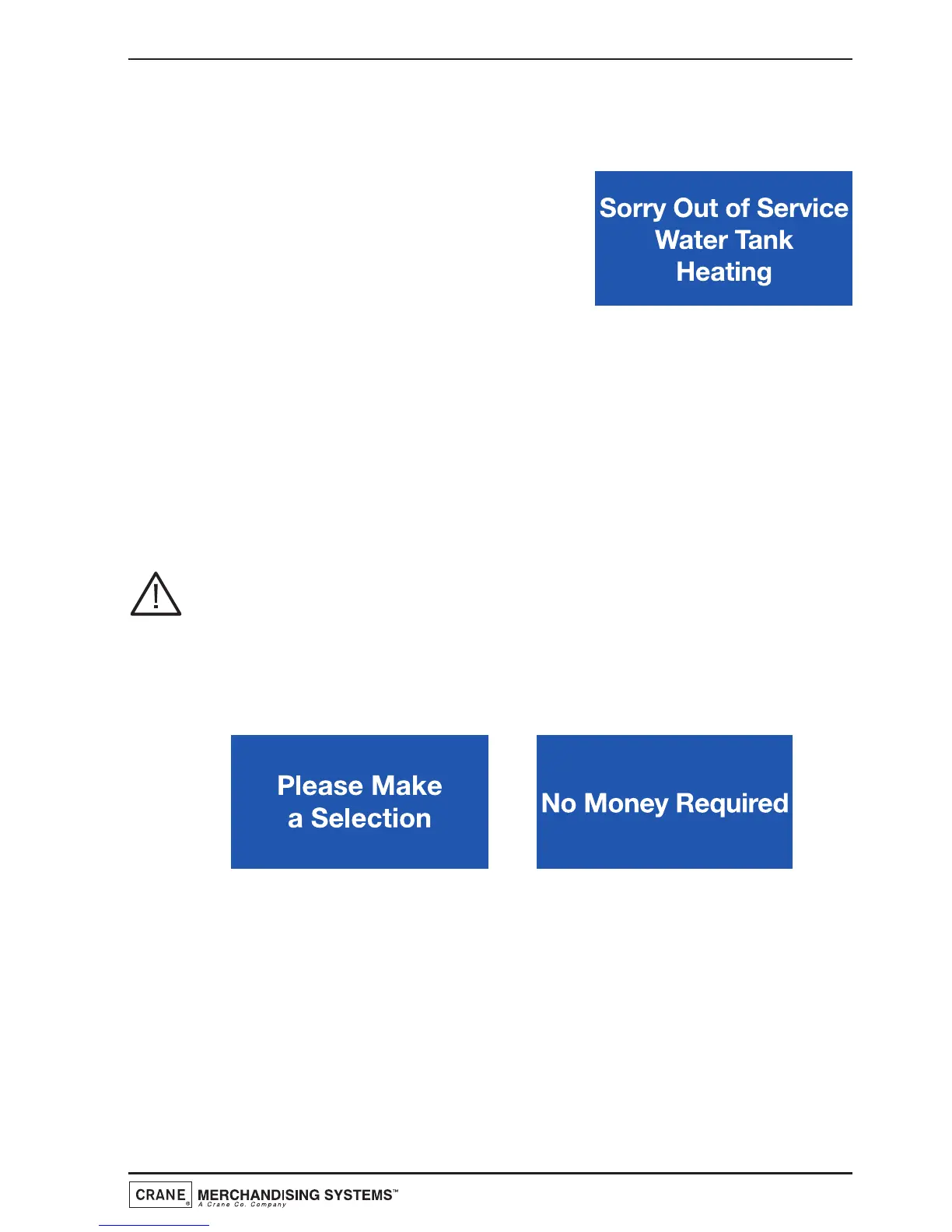

6. Check the LCD display on the front of the machine to ensure that the water has
heated to the correct temperature and that the machine is in standby mode. A
machine set to free vend mode will alternate the messages:
Note: Messages displayed in standby mode will change depending upon the
monetary device fitted and set up during programming.
7. Ensure that the cup drop mechanism operates correctly. Press the Cup Test
switch (7), located in the Service Keypad on the rear of the door and ensure that
a cup is ejected cleanly from the cup drop unit.
8. Ensure that the dispense head mechanism operates correctly. Press the Park
Head switch (8), located in the Service Keypad on the rear of the door and
ensure that the dispense head moves to its fully extended position. Press the
switch again to return the dispense head to its correct (homed) position.
