10.11 Input/Output Board Connections - 1

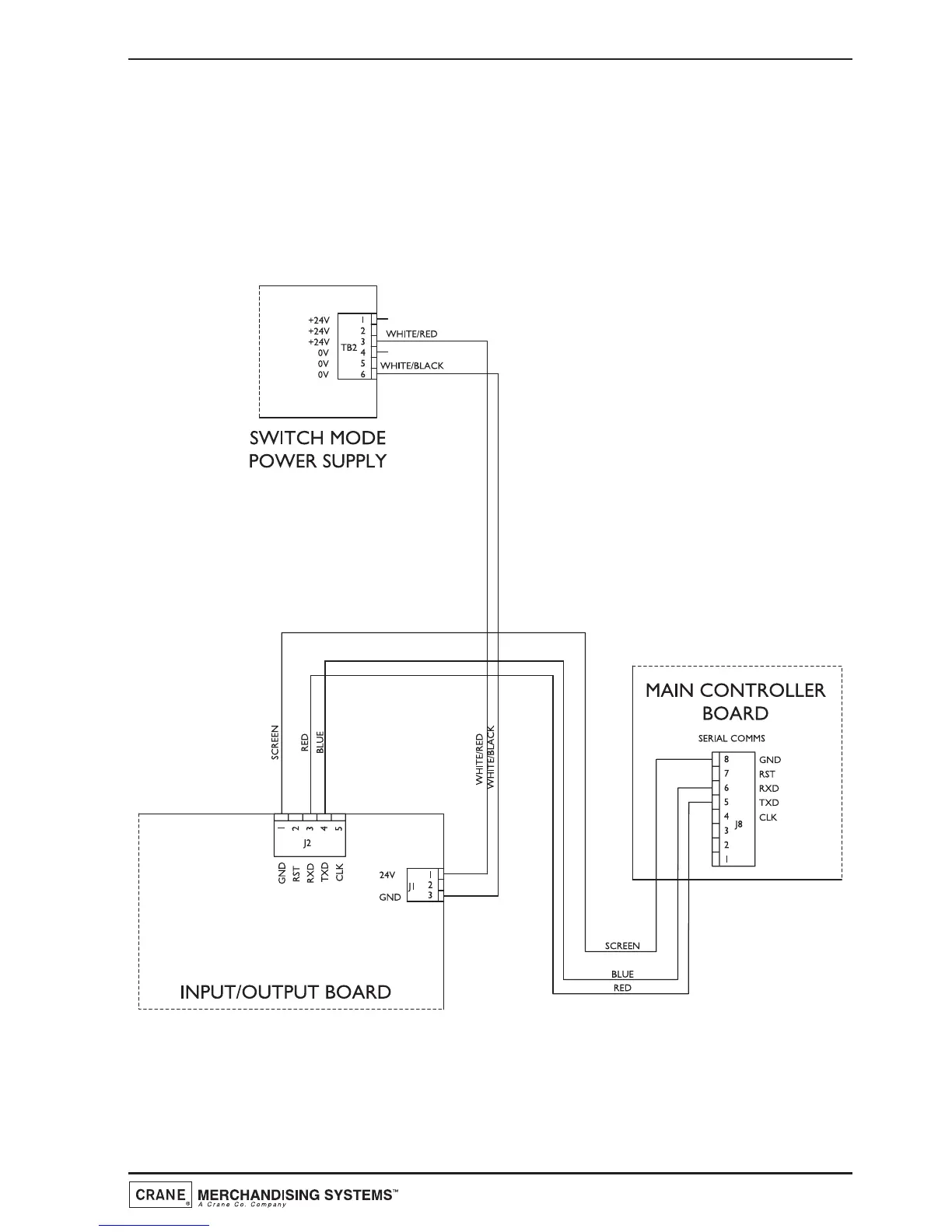

The diagram below illustrates the connections between the I/O board and the main
controller board serial comms link and switch mode power supply.
