15. Moving to the machine, remove the ‘O’ ring (a)
from the water inlet pipe and discard. Fit the ‘O’
ring included in the service kit onto the inlet pipe.
Ensure that the new ‘O’ ring is seated correctly.
Refit the CoEx® brewer unit into the machine. Slide
the unit into place until it ‘clicks’ into position. Refit
the coffee dispense pipe to the brewer outlet.

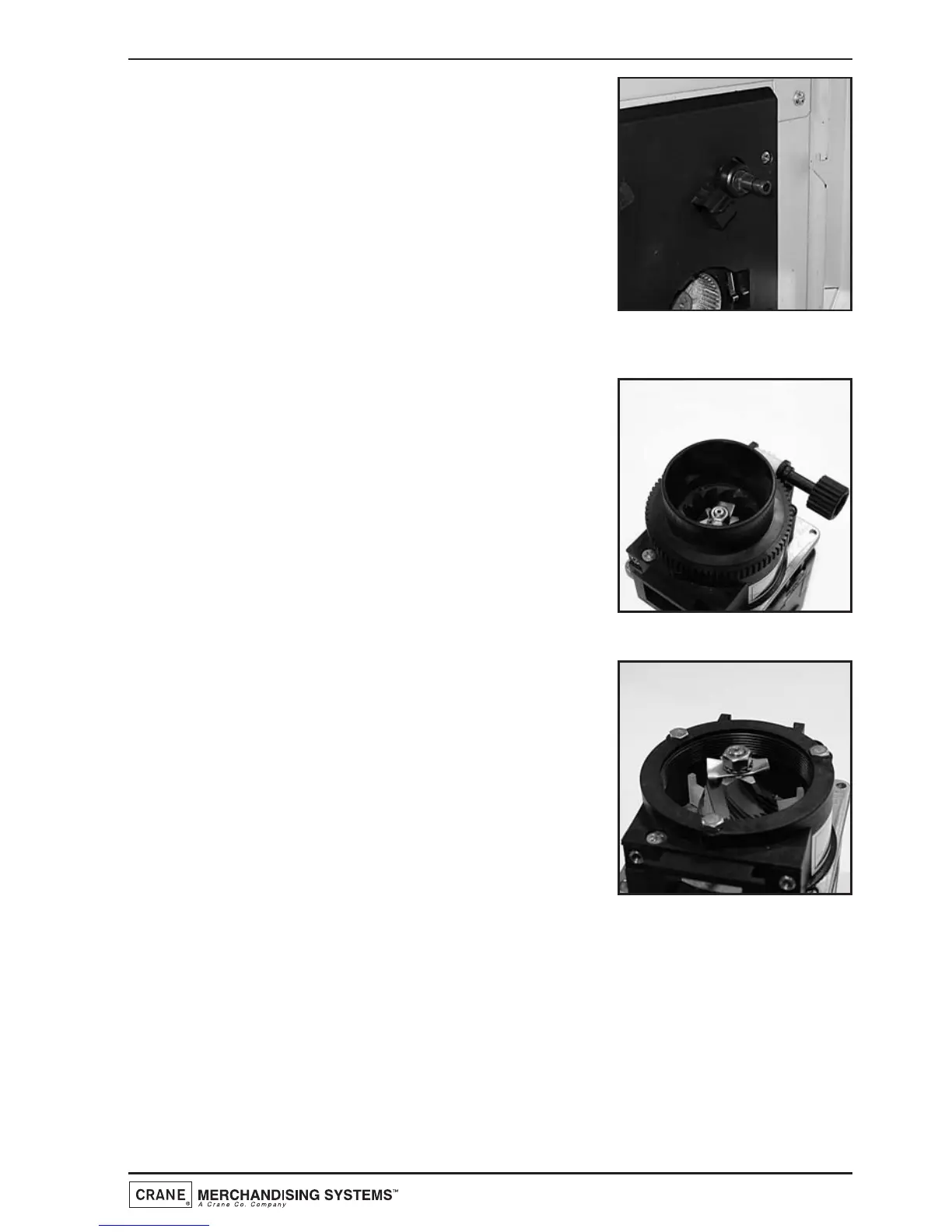

16. Replacing The Grinder Blades.
Push in the bean canister shut-off to close the fresh
beans outlet. Carefully remove the fresh beans
canister from the machine and place it to one side.
Pull up and remove the grinder adjusting wheel
assembly (b) from the rear of the grinder body.
Unscrew the grinder body (c) anti-clockwise and
remove it from the blade housing.
Note: Grinder mechanism removed from the
machine for clarity
17. Unscrew and remove the nut, star washer and
agitator (d) from the drive shaft.
Note: Nut is fitted with a left hand thread.
Remove the grinder blade block (e) and discard.
Replace with the new grinder blade block included
with the service kit.
Refit the agitator, star washer and nut. Ensure that
the nut is tightened securely.
18. Take the new grinder body complete with inner grinder ring from the service kit.
Screw the grinder body clockwise into the blade housing until it stops.
Re-set the grinder blades. An approximate starting position is achieved by turning
the grinder body back one full turn anti-clockwise.
Re-assemble the grinder adjuster wheel assembly to the grinder unit.
19. Refit the fresh beans container to the machine. Pull the bean canister shut-off to
its fully extended position.
