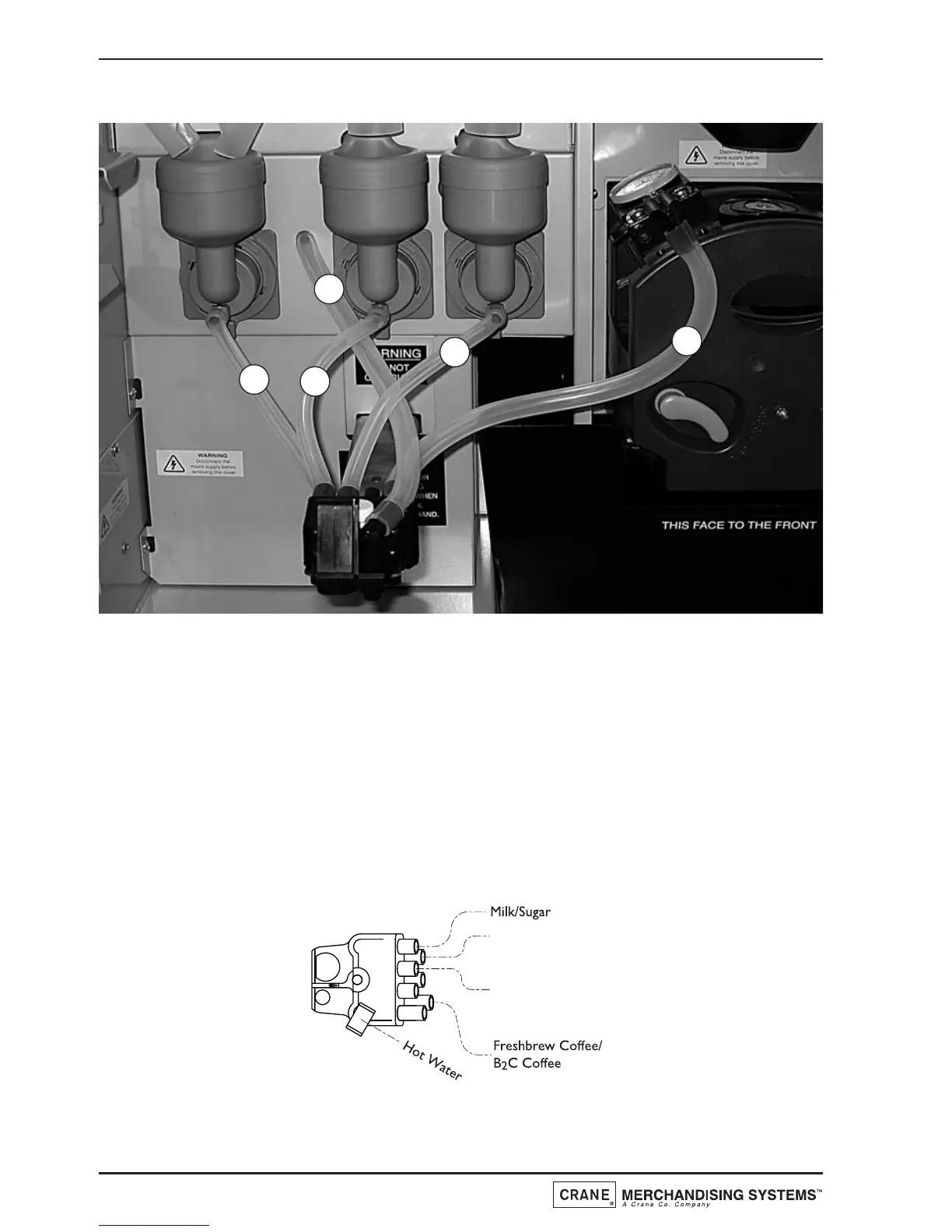

Section 9 - Dispense Tube Lengths
Tube No Diameter Length
1 0.236 in (6 mm) I.D. x 0.394 in (10 mm) O.D. 6.693 in (170 mm)
2 0.236 in (6 mm) I.D. x 0.394 in (10 mm) O.D. 6.299 in (160 mm)
3 0.236 in (6 mm) I.D. x 0.394 in (10 mm) O.D. 6.693 in (170 mm)
4 0.315 in (8 mm) I.D. x 0.512 in (13 mm) O.D. 14.173 in (360 mm)
H = Hot Water Dispense Tube
