10. Grinder Mechanism (Not Shown On Water Flow Diagram)
The grind mechanism consists of a 115V ac conical grinder with a manual adjustment.
When an espresso based drink is selected the grinder will run for the required time,
grinding beans and feeding the brewer at the same time. The grinder is fitted with a
manual adjusting mechanism which allows the engineer to vary the size of the ground
coffee in order to satisfy customers’ taste preferences.
11. CoEx® Brewer (Not Shown On Water Flow Diagram)
The brewer unit is capable of receiving between 5 and 9 grams of ground coffee. Once
the coffee has been ground and dispensed into the brewer unit, the 24V dc brewer
motor drives the brewer to the vend position using the current sensing as control.
Once the coffee has been compressed into a round cake, water is pumped through
the brewer.
When the required amount of water has passed through the brewer, the now wet
coffee ‘cake’ is squeezed, removing most of the water from the ‘cake’, preventing the
brewer becoming unnecessarily dirty. After the ‘cake’ has been squeezed the brewer
will deposit the cake into the dry waste container and return to the stand-by position.

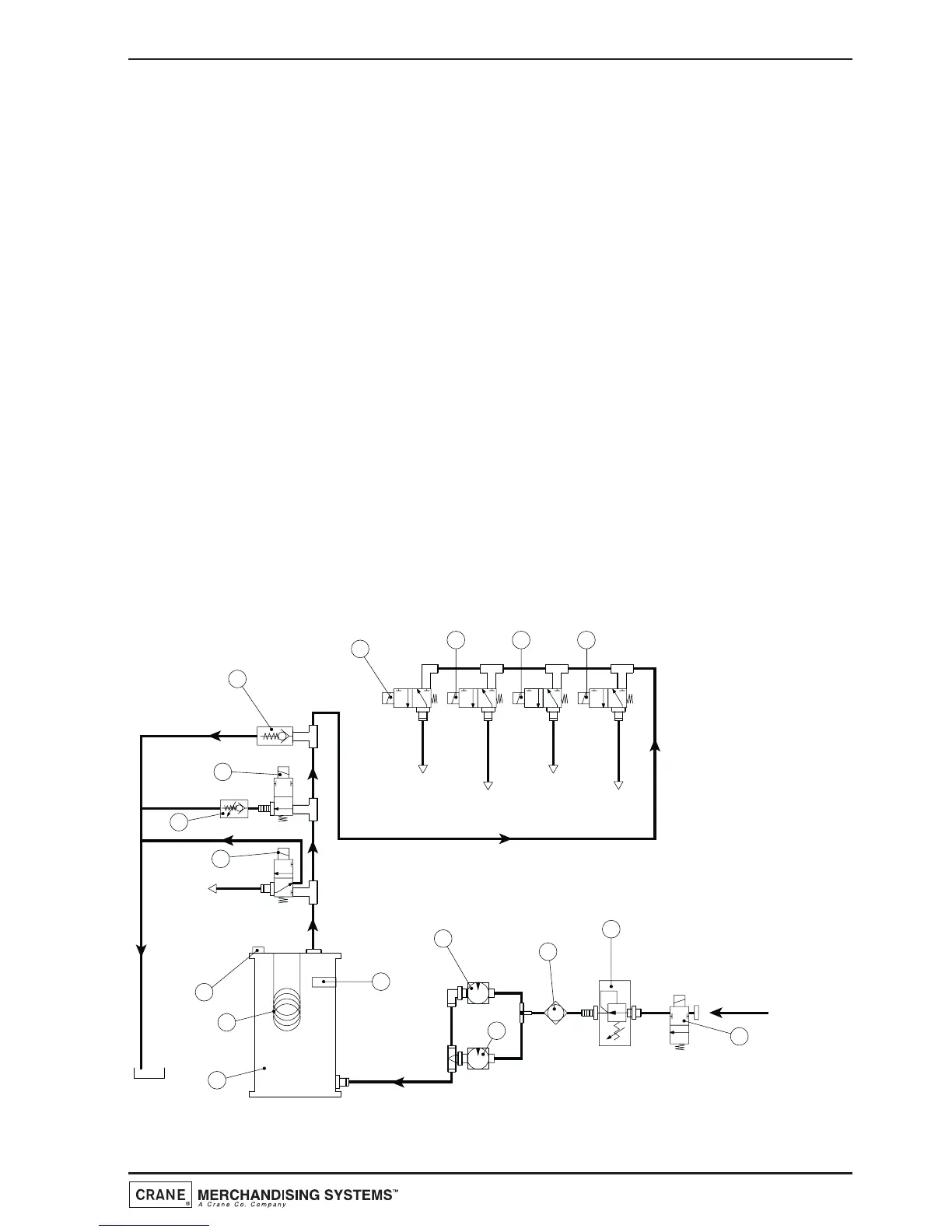

8.3 Genesis B2C Water Flow Diagram
71
Technical Manual
2
4
11
4
5
6
7
8
1
12
10
MILK/SUGAR
BREWER
9
13
N/O
13 1313
HOT WATER
CHOCOLATE
TOPPING
VALVE 1 VALVE 2 VALVE 4VALVE 3
PRESSURE VALVE
PUMP 1
PUMP 2
3
DRIPTRAY
KEY:
1. INLET VALVE
2. REDUCING VALVE
3. FLOW METER
4. PUMPS
5. PRESSURE BOILER
6. ELEMENT
7. THERMISTER
8. THERMAL CUT-OUT
9. ESPRESSO VALVE - 3 WAY
10. PRESSURE VALVE - 2 WAY
11. RELIEF VALVE - 3 BAR
12. SAFETY VALVE - 12 BAR
13. 3 WAY VALVE
NOTE:
System shown in idle state
WATER
SUPPLY
