10.4 Control Board Connections - 2

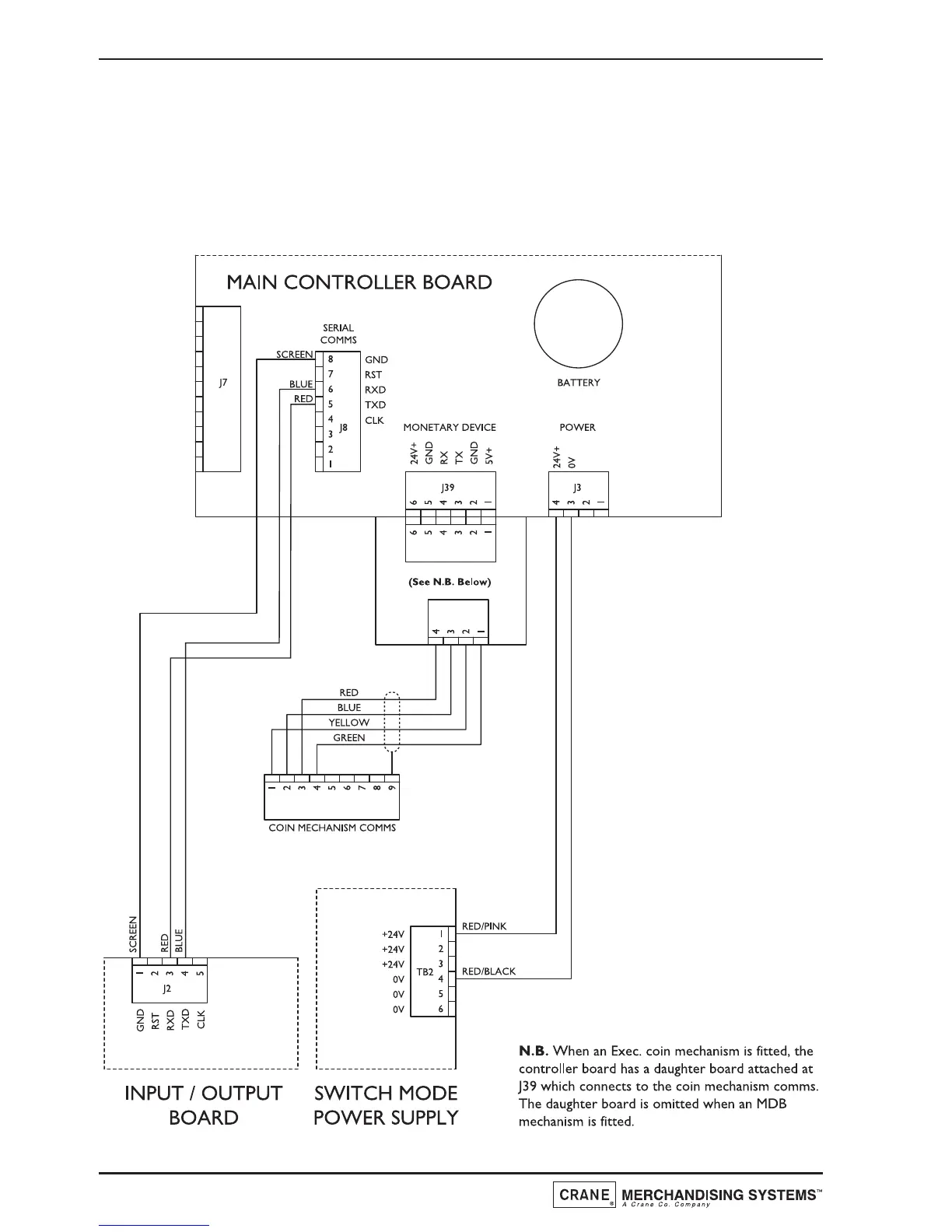

The diagram below illustrates the connections between the control board and the
input/output board, coin mechanism communications and the switch mode power
supply.
