12

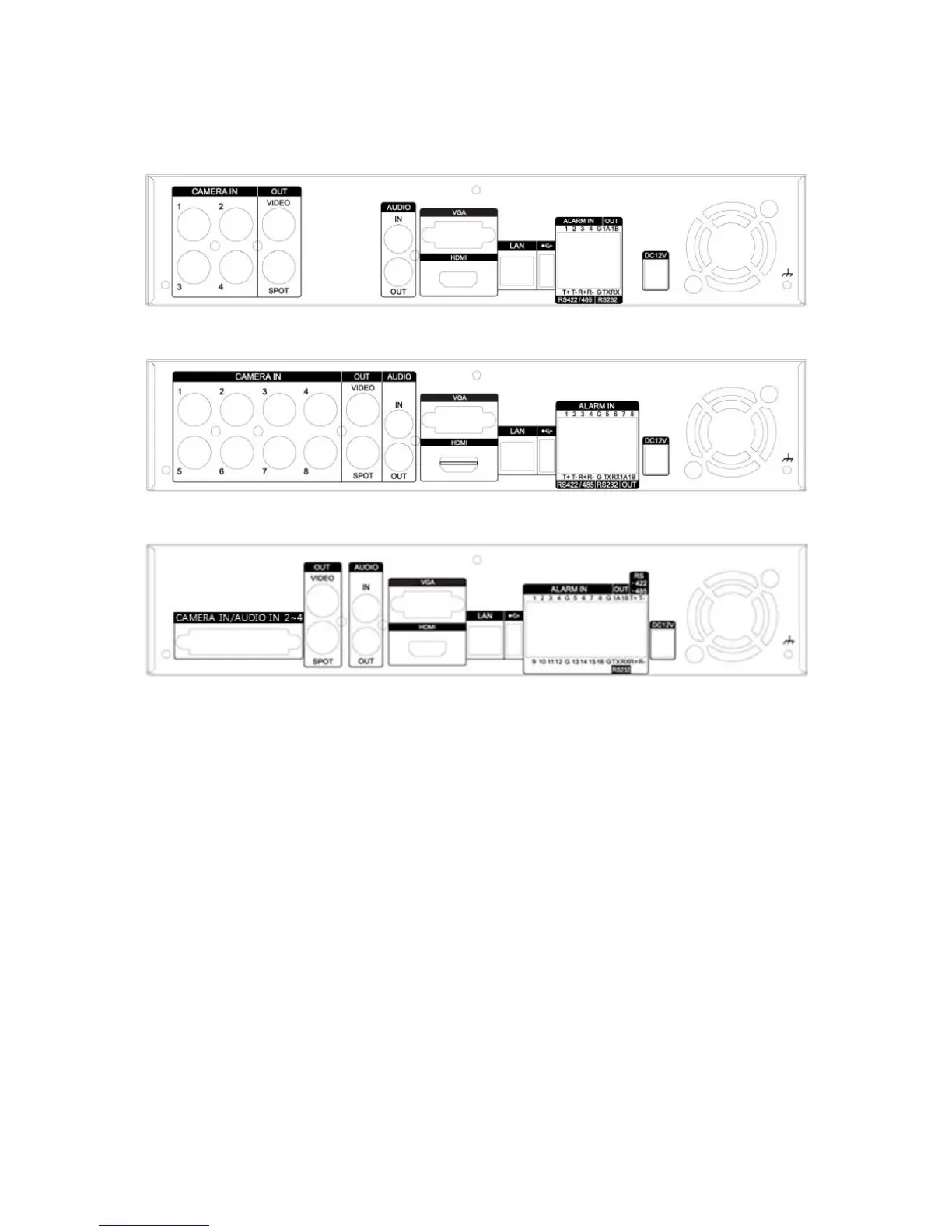

2. Rear Panel Connectors
<4ch>
<8ch>
<16ch>
1) CAMERA IN (4-Ch/8-Ch): BNC Input (Camera 1~4, 1~8).
CAMERA IN/AUDIO IN 2~4 (1-Ch): Video / Audio Input with the connector
enclosed. 16-Channel Video In & 2-Ch~4-Ch Audio In.
2) OUT: VIDEO - BNC standard composite video out, SPOT - Spot Out.
3) AUDIO: IN – 1-Ch Audio In, OUT – 1-Ch Audio Out.
4) VGA: VGA Monitor Out.
5) HDMI: HDMI Monitor Out.
6) LAN: RJ45 Ethernet Port.
7) USB: USB Memory or Mouse.
8) ALARM IN: Alarm input of 1-Ch through 16-Ch.
9) OUT: Alarm Relay Out.
10) RS-422/485: Control of PTZ camera.
11) RS-232C: Development purposes only.
12) POWER: DC Power Jack
