Getinge 9125 User Manual

DOORS

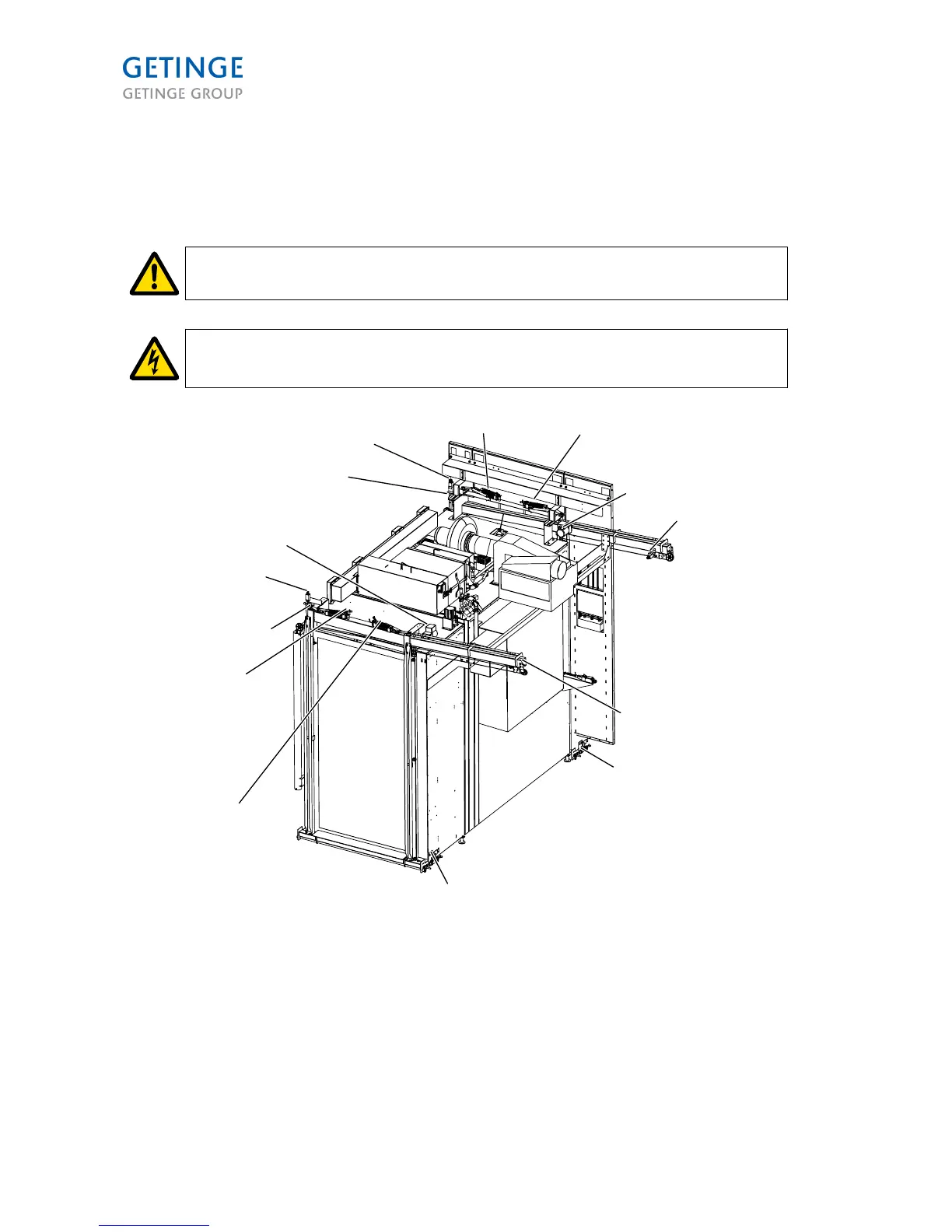

Door switches, position and operation
This must only be done by authorized personnel.
Before starting work, make sure that the machine is disconnected from the
electric power supply.
5
3
6
6
7
7
5
1
1
2
2
3
4
4
001798
1. Lock cylinder 1
Limit switch, Unlocked 1
Limit switch, Locked 1
2. Lock cylinder 2
Limit switch, Unlocked 2
Limit switch, Locked 2
3. Door motor
4. Limit switch, Door open
5. Crush protection
6. Limit Switch, Door Close
7. Cylinder, Threshold
Limit switch, Threshold out
Page 140 of 166
<Doc_TEC><Doc_6001341502><Rel.A><Lang_en>
