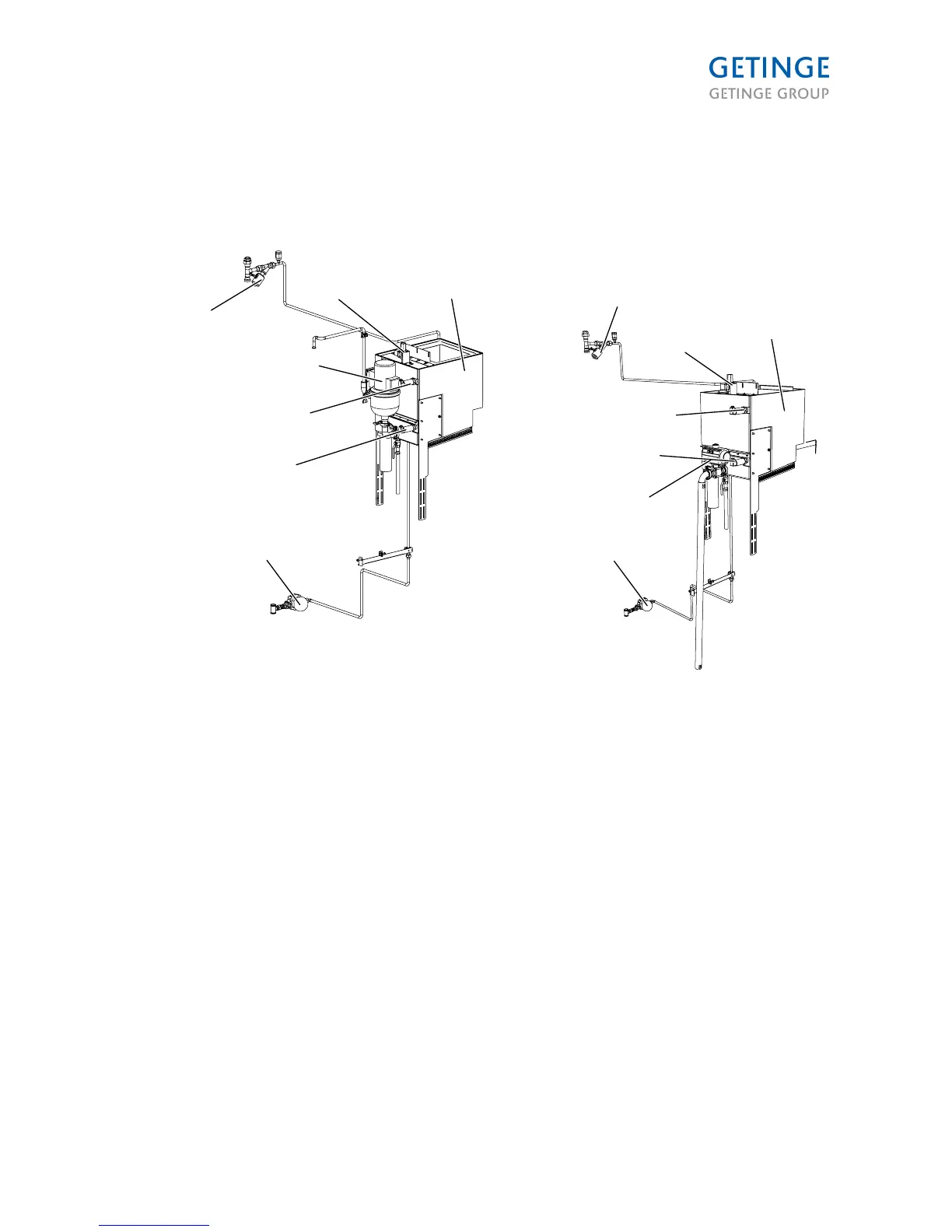

Booster tank
The machine can be equipped with an extra tank for using preheated water in the process.
The following equipment is included:
6
6
1
1
3
3
2
2
5
5
4
7
8
8
001793
1.
Steam valve
2.
Filling valve
3.
Booster tank
4.
Auxiliary pump
5.
Level switch, high
6.
Level switch, low
7.
Booster valve
8.
Condensate drain
Page 17 of 166
