Adjusting door locking switch
Two cylinders are used for door locking. The cylinders are fitted with two sensors, which indicate when
the door is locked or unlocked.

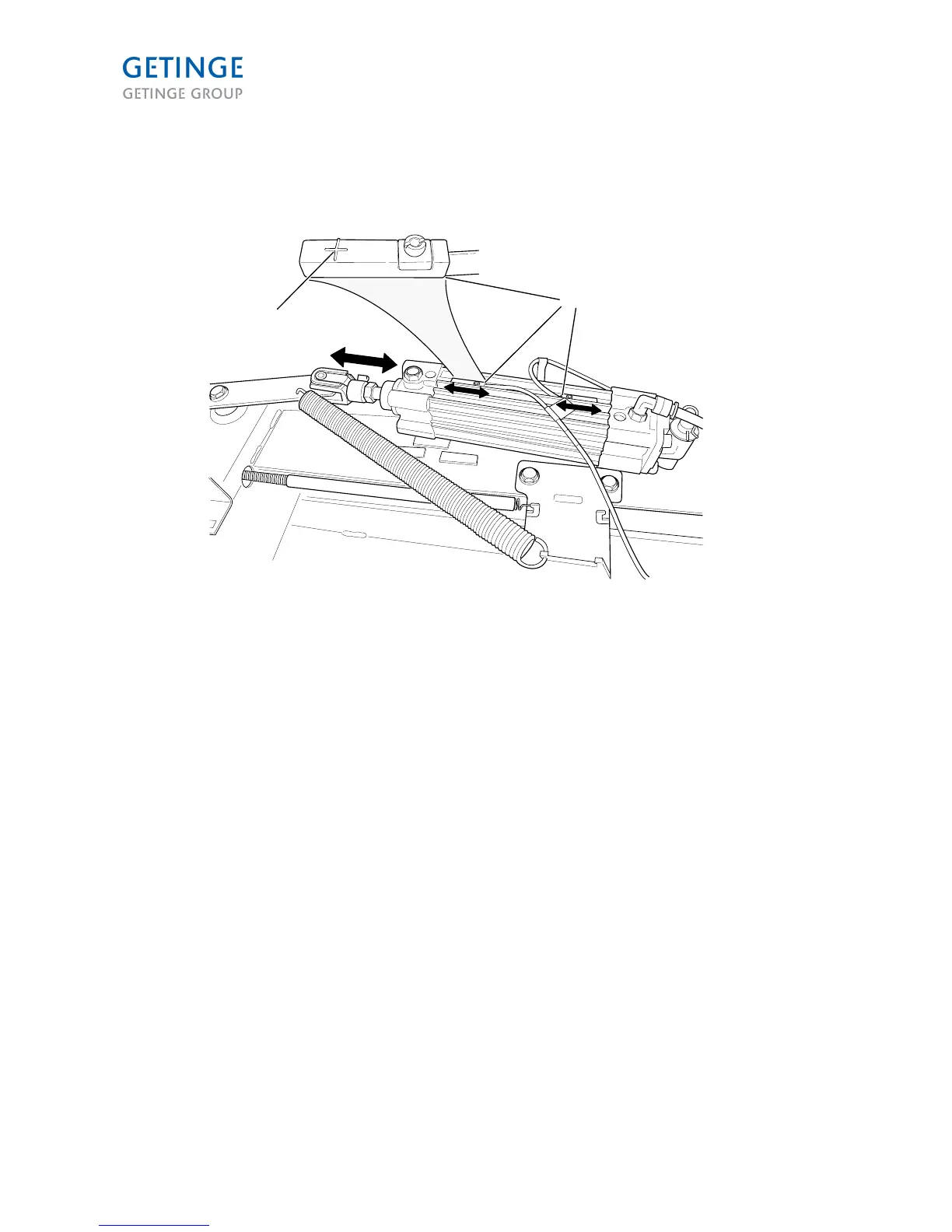

1. Sensitivity point
2. Sensor
Place the cylinder in its retracted position and move the sensor outward from the center until the sensor
is activated. Any activation is indicated by a built-in LED.
Mark the position on the cylinder at the sensor's sensitivity point.
Continue to move the sensor until the sensor again becomes non-activated, and mark the position.
Position and fasten the sensor so the sensitivity point is centered between the marks.
Place the cylinder in its fully extended position and repeat the marking step and adjustment of the sensor
for the unlocked position.
Make the same adjustment with the other cylinder.
