Printer (optional)
Printer
Replacing paper roll

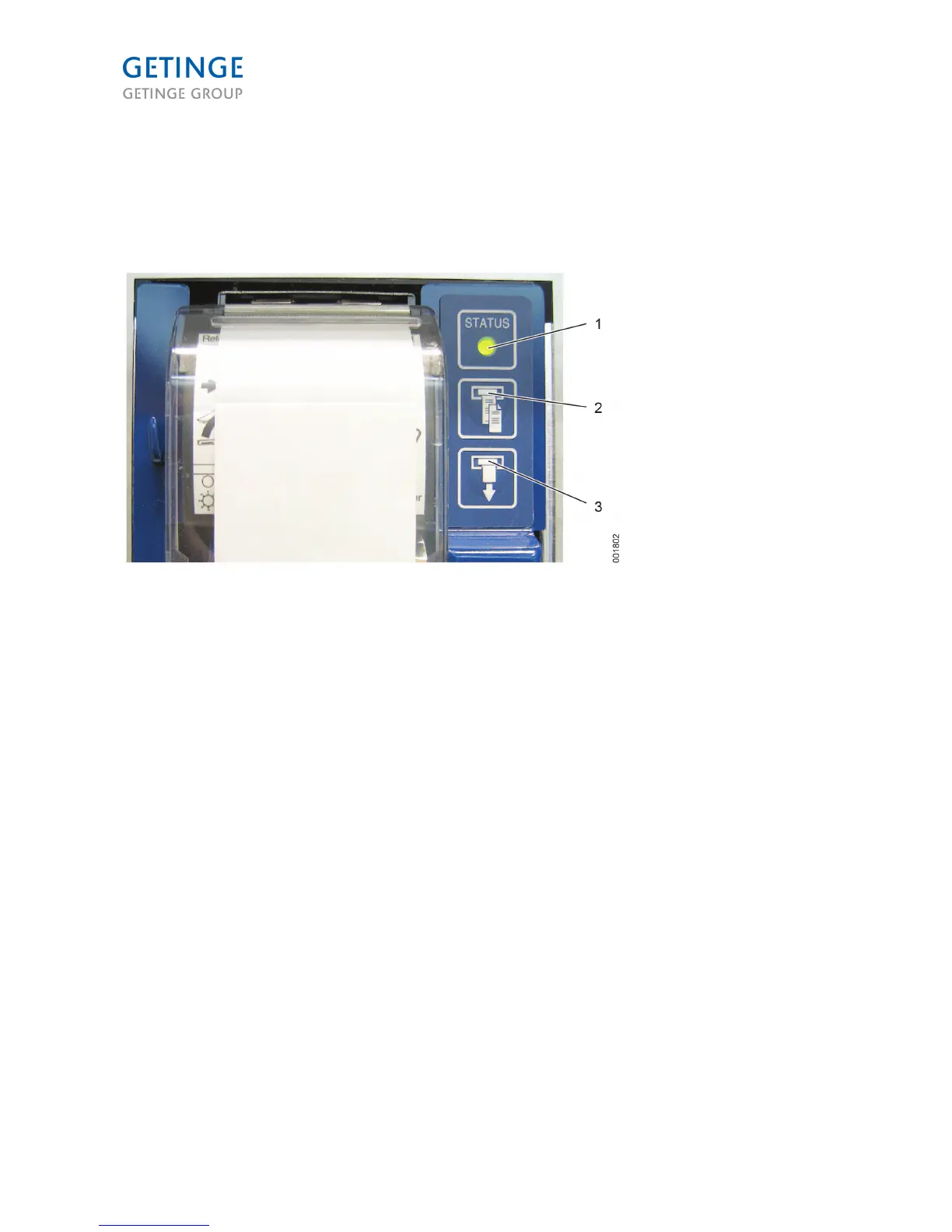

1. "Status" blinks - see the manual
2. "Print"
3. "Supply"
1. Open the glass door by pressing the lower, right corner.
2. Open the front of the printer.
3. Remove the rolled up paper on the paper bobbin by pressing the blue lever to the right. It is on
the left side of the printer.
4. Move the paper cutter up and open the black front cover towards you. Remove the old paper
roll.
5. Take out a new roll of paper and insert it in the space.
6. Pull out the roll of paper 10 cm and close the black front cover.
7. Attach the end of the paper to the paper spool.
8. Press the feed button and release and then press it again for one rotation.
9. Close the front of the printer.
10. Close the glass door.
Page 150 of 166
