GW Instek PSW Series User Manual

GETTING STARTED
11

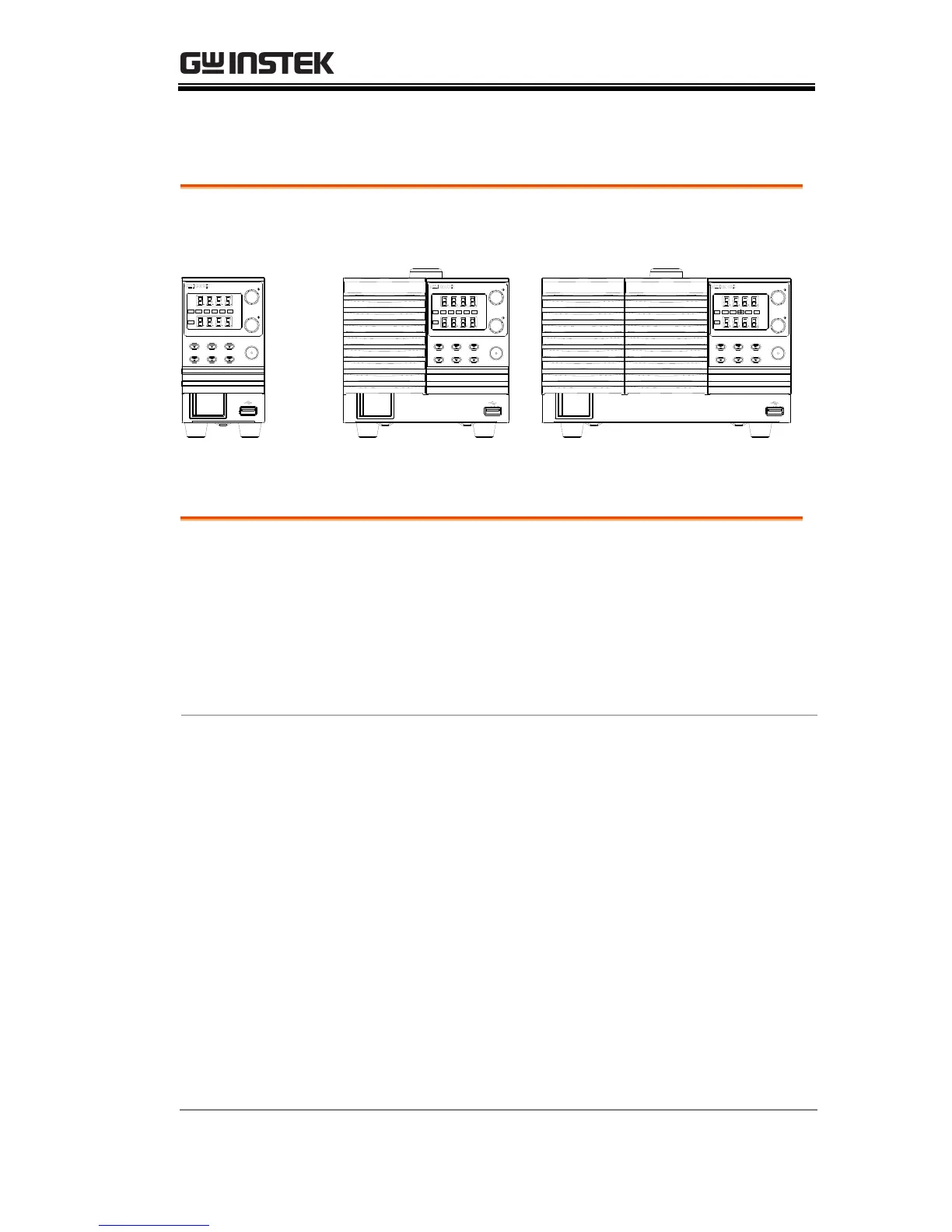

Apart from the differences in output, each unit differs in size. The
720 and 1080 watt models are larger than the 360 watt models to
accommodate the increase in power.
360 Watt models
Type I
A
W
V
W
%W10080604020
ISR
C C
DLY
ALM
RMT
C V
VSR
Function OVP/OCP Set
Output
PWR DSPLLock/LocalTest
PS W 3 0-3 6
360W
Multi-Range DC Power Supply
Voltage
Current
720 Watt models
Type II
A
W
V
W
%W10080604020
ISR
C C
DLY
ALM
RMT
C V
VSR
Function OVP/OCP Set
Output
PWR DSPLLock/LocalTest
PS W 3 0-7 2
720W
Voltage
Current
Multi-Range DC Power Supply
1080 Watt models
Type III
A
W
V
W
%W10080604020
ISR
C C
DLY
ALM
RMT
C V
VSR
Function OVP/OCP Set
Output
PWR DSPLLock/LocalTest
PS W 3 0-1 08
1080W
Voltage
Current
Multi-Range DC Power Supply
Main Features
Performance
 High performance/power
 Power efficient switching type power supply
 Low impact on load devices
 Fast transient recovery time of 1ms
 Fast output response time
Features
 OVP, OCP and OTP protection
 Adjustable voltage and current slew rates
 User adjustable bleeder control to quickly
dissipate the power after shutdown to safe
levels.
 Extensive remote monitoring and control
options
 Support for serial* and parallel connections.
*(30, 80, 160 volt models only)
 Power on configuration settings.
 Supports test scripts
 Web server monitoring and control

GW Instek PSW Series Specifications

General

Ripple & Noise (CC)	≤ 3mArms
Protections	OVP, OCP, OTP
Remote Sense	Yes
Programmable	Yes
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Voltage Resolution	1mV
Current Resolution	1mA
Current Accuracy	±0.1% + 10mA
Ripple & Noise (CV)	≤1mVrms
Load Regulation (CC)	≤0.1% + 5mA
Line Regulation (CC)	≤0.1% + 5mA
Remote Interface	USB, RS232
Display	LCD
