GW Instek PSW Series User Manual

PSW Series User Manual
112

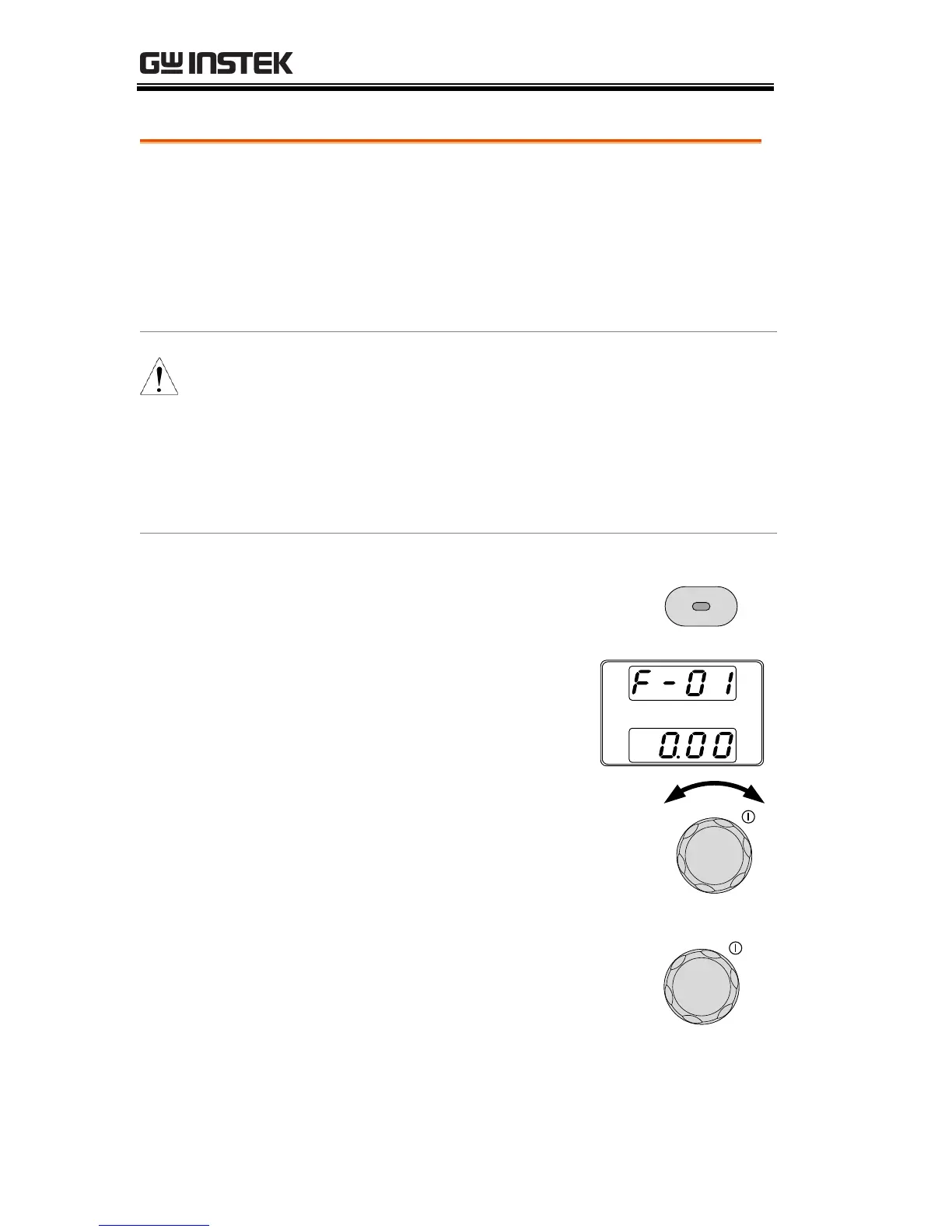

Setting Normal Function Settings
The normal function settings (F-01~F-61, F-
88~F-89) can be easily configured with the
Function key.
 Ensure the load is not connected.
 Ensure the output is off.
Note
Function setting F-89 (Show Version) can only be
viewed, not edited.
Configuration settings F-90~F-95 cannot be edited
in the Normal Function Settings. Use the Power
On Configuration Settings. See page 114 for
details.
Steps
1. Press the Function key. The
function key will light up.
Function
2. The display will show F-01
on the top and the
configuration setting for
F-01 on the bottom.
3. Rotate the Voltage knob to change
the F setting.
Voltage
Range
F-00~ F-61, F-88~F-89
4. Use the Current knob to set the
parameter for the chosen F setting.
Current

GW Instek PSW Series Specifications

General

Ripple & Noise (CC)	≤ 3mArms
Protections	OVP, OCP, OTP
Remote Sense	Yes
Programmable	Yes
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Voltage Resolution	1mV
Current Resolution	1mA
Current Accuracy	±0.1% + 10mA
Ripple & Noise (CV)	≤1mVrms
Load Regulation (CC)	≤0.1% + 5mA
Line Regulation (CC)	≤0.1% + 5mA
Remote Interface	USB, RS232
Display	LCD
