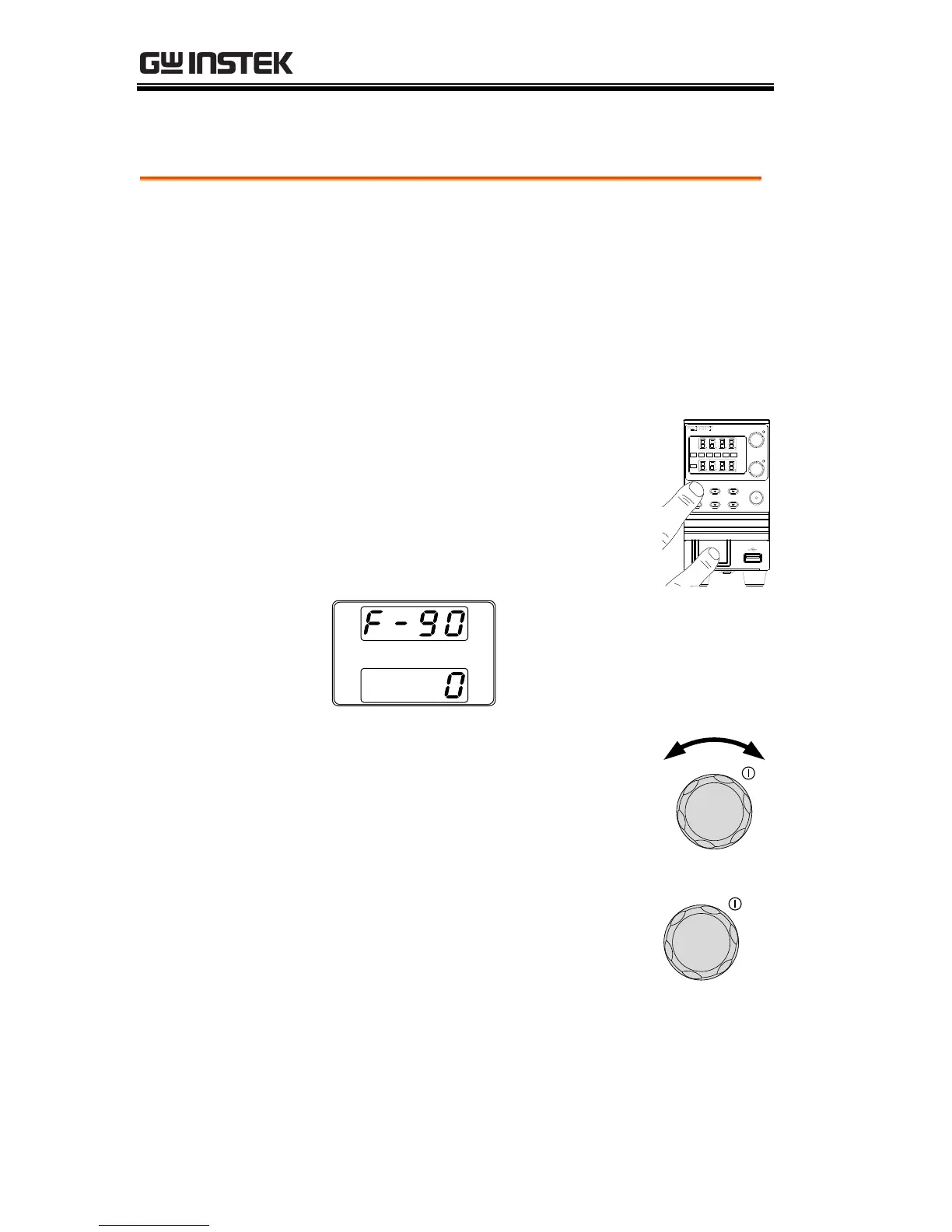

Setting Power On Configuration Settings
Background
The Power On configuration settings can only
be changed during power up to prevent the
configuration settings being inadvertently
changed.
 Ensure the load is not connected.
 Ensure the power supply is off.
Steps
1. Hold the Function key whilst
turning the power on.
2. The display will show F-90 on the
top and the configuration setting
for F-90 on the bottom.
A
W
V
W
%W10080604020
ISR
C C
DLY
ALM
RMT
C V
VSR
Function OVP/OCP Set
Output
PWR DSPLLock/LocalTest
PS W 3 0-3 6
360W
Voltage
Current
Multi-Range DC Power Supply
3. Rotate the Voltage knob to change
the F setting.
Voltage
Range
F-90~ F-95
4. Use the Current knob to set the
parameter for the chosen F setting.
Current

GW Instek PSW Series Specifications

General

Ripple & Noise (CC)	≤ 3mArms
Protections	OVP, OCP, OTP
Remote Sense	Yes
Programmable	Yes
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Voltage Resolution	1mV
Current Resolution	1mA
Current Accuracy	±0.1% + 10mA
Ripple & Noise (CV)	≤1mVrms
Load Regulation (CC)	≤0.1% + 5mA
Line Regulation (CC)	≤0.1% + 5mA
Remote Interface	USB, RS232
Display	LCD
