GW Instek PSW Series User Manual

GETTING STARTED
15
Appearance

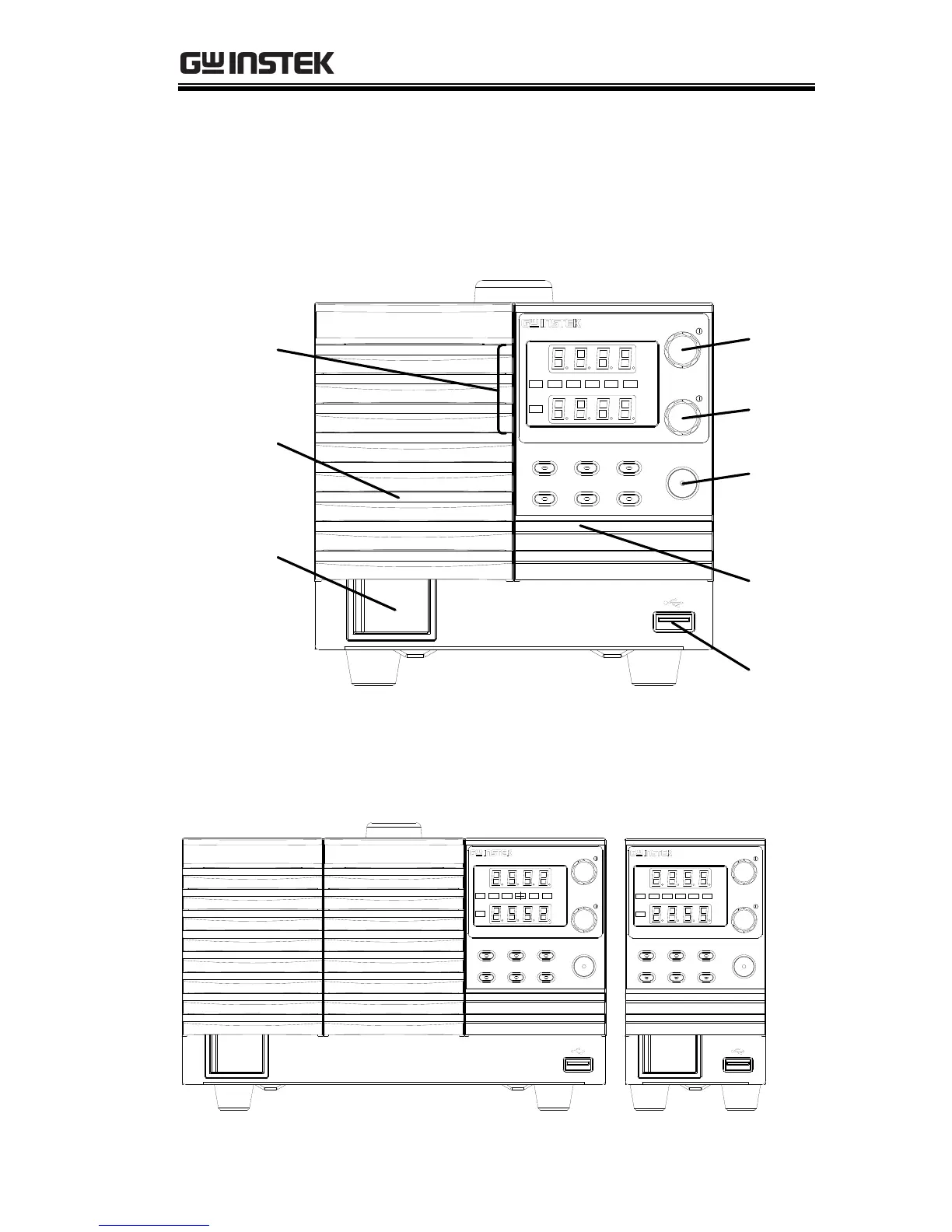

PSW Front Panel
720W: PSW 30-72, 80-27, 160-14.4, 250-9, 800-2.88
A
W
V
W
%W10080604020
ISR
C C
DLY
ALM
RMT
C V
VSR
Function OVP/OCP Set
Output
PWR DSPLLock/LocalTest
PSW 30 - 7 2
720W
Voltage
Current
Multi-Range DC Power Supply
Current
knob
Output
key
Power
switch
Voltage
knob
USB A
port
Display
Cover
panel
Function
keys
1080W: PSW 30-108, 80-40.5, 160-21.6,
250-13.5, 800-4.32
360W: PSW 30-36,
80-13.5, 160-7.2,
250-4.5, 800-1.44
A
W
V
W
%W10080604020
ISR
C C
DLY
ALM
RMT
C V
VSR
Function OVP/OCP Set
Output
PWR DSPLLock/LocalTest
PS W 3 0 -10 8
1080W
Voltage
Current
Multi-Range DC Power Supply
A
W
V
W
%W10080604020
ISR
C C
DLY
ALM
RMT
C V
VSR
Function OVP/OCP Set
Output
PWR DSPLLock/LocalTest
PS W 3 0 -36
360W
Multi-Range DC Power Supply
Voltage
Current

GW Instek PSW Series Specifications

General

Ripple & Noise (CC)	≤ 3mArms
Protections	OVP, OCP, OTP
Remote Sense	Yes
Programmable	Yes
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Voltage Resolution	1mV
Current Resolution	1mA
Current Accuracy	±0.1% + 10mA
Ripple & Noise (CV)	≤1mVrms
Load Regulation (CC)	≤0.1% + 5mA
Line Regulation (CC)	≤0.1% + 5mA
Remote Interface	USB, RS232
Display	LCD
