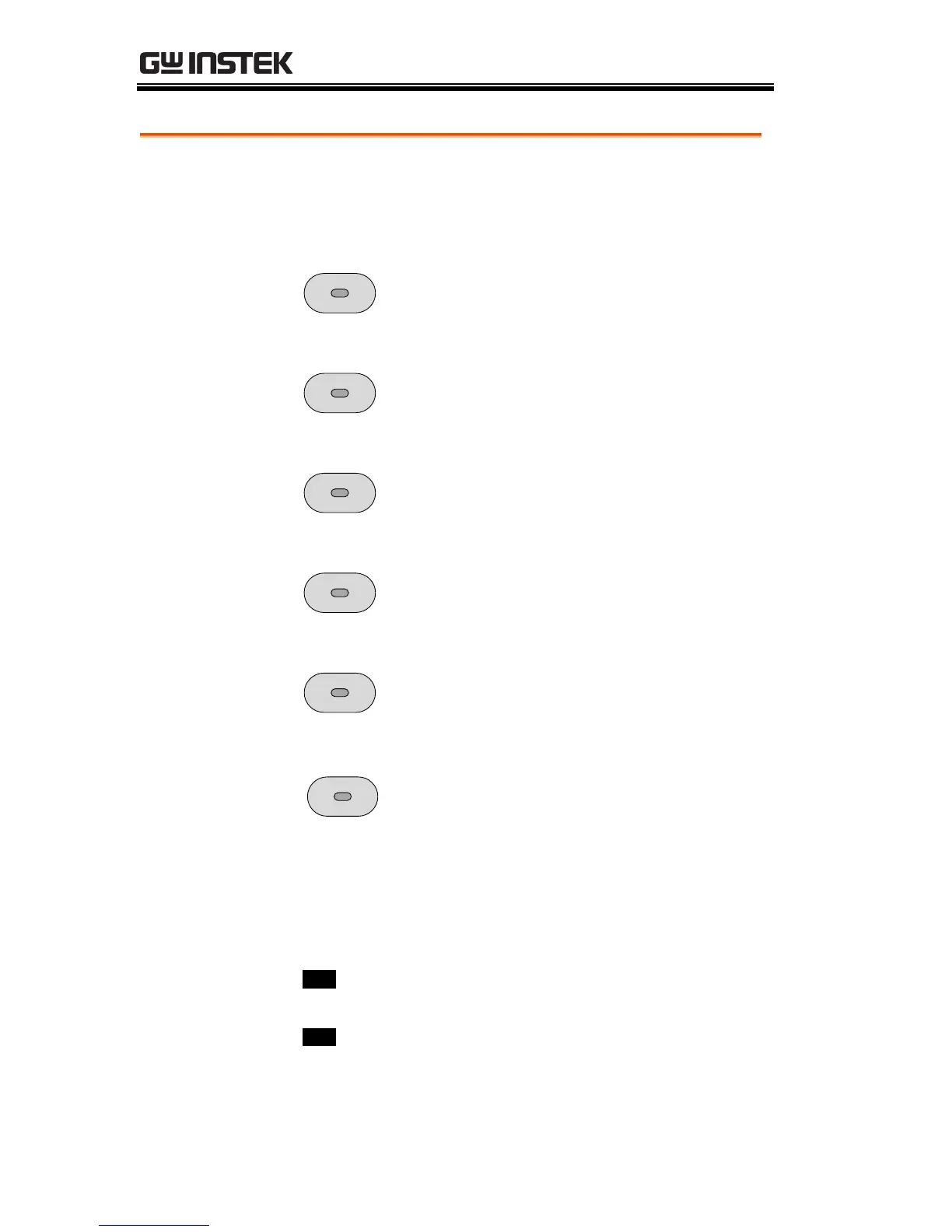

Function Keys
The Function keys along with the Output key will
light up when a key is active.
Function
The Function key is used to
configure the power supply.
OVP/OCP
Set the over current or over
voltage protection levels.
Set
Sets the current and voltage limits.
Test
Used to run customized scripts for
testing.
Lock/Local
Locks or unlocks the panel keys to
prevent accidentally changing
panel settings.
PWR DSPL
Toggles the display from viewing
V/A  V/W or A/W*.
*Press the Voltage knob for V/W,
press the Current knob for A/W.
Display
Indicators
VSR
Voltage Slew Rate
C V
Constant Voltage Mode
RMT
Remote Control Mode
ALM
Alarm on
DLY
Delay Output
C C
Constant Current Mode
ISR
Current Slew Rate

GW Instek PSW Series Specifications

General

Ripple & Noise (CC)	≤ 3mArms
Protections	OVP, OCP, OTP
Remote Sense	Yes
Programmable	Yes
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Voltage Resolution	1mV
Current Resolution	1mA
Current Accuracy	±0.1% + 10mA
Ripple & Noise (CV)	≤1mVrms
Load Regulation (CC)	≤0.1% + 5mA
Line Regulation (CC)	≤0.1% + 5mA
Remote Interface	USB, RS232
Display	LCD
