BASIC HOOK-UP
is organ has a built-in speaker system, so you can start playing immediately after
connecting to the power source by inserting the AC plug to the AC outlet.
CONNECTING THE LESLIE SPEAKER
is organ is equipped with a 11-pin Leslie connector, so you can directly connect
the Leslie Speaker.
Make this connection with the Organ power OFF.
Connect the Leslie Speaker to the 11-pin terminal on the or-
gan, with the exclusive 11-pin Leslie Cable (to be separately
purchased - with the other Leslie Speaker accessories).
Adjust the setting of the “EXT. LESLIE CH”, in accordance
with the Leslie Speaker connected. (P. 72)
eg. Typical Leslie Speaker Channel
122XB, 3300/W -- 1CH
2101/mk2, 3300/3300W with Stationary Unit -- 3CH
Please carefully read the User’s Guide of the Leslie Speaker.
CAUTION
Do not expose this organ to any ex-
cessive heat sources such as direct
sunlight or ames.

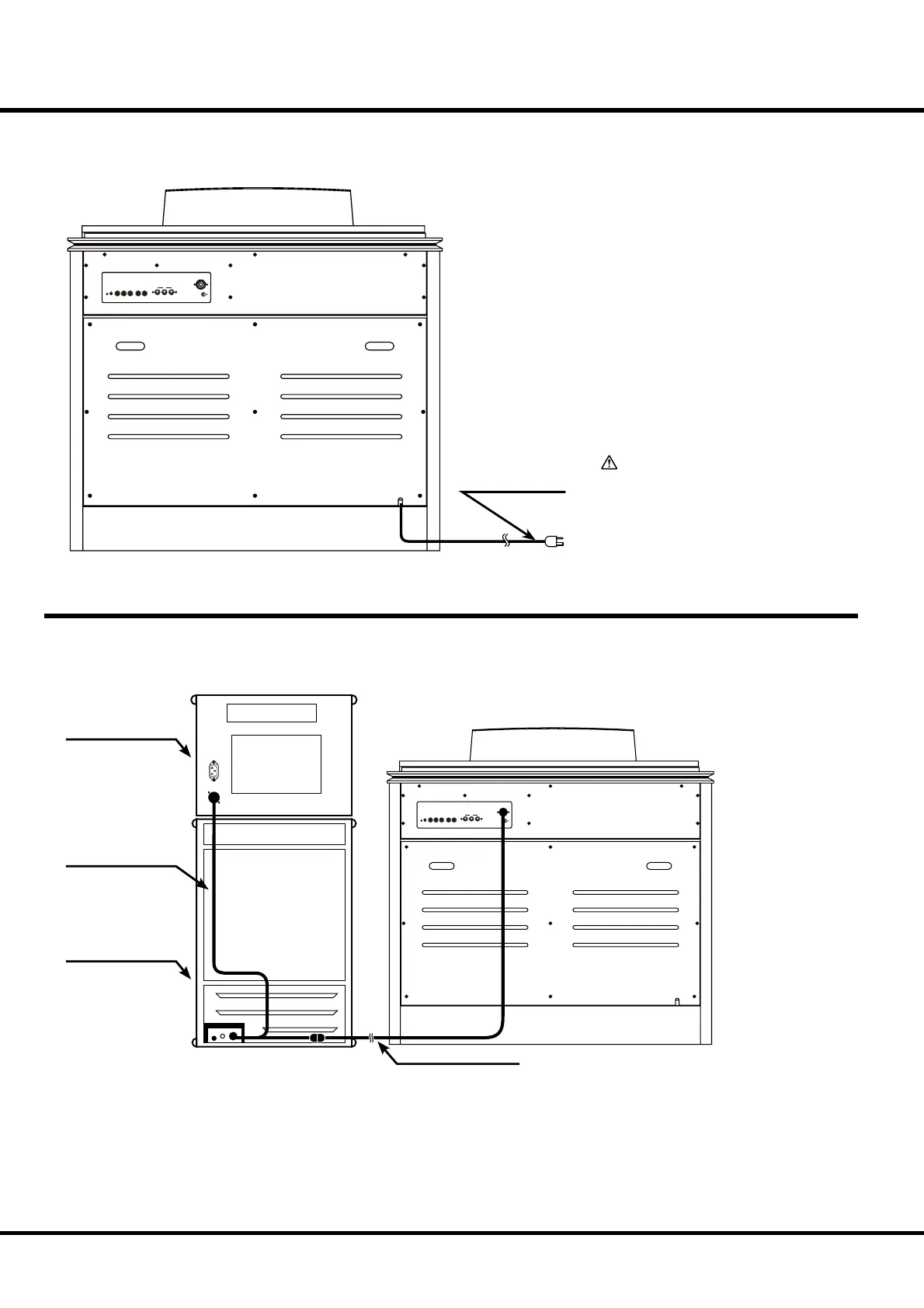

MIN. MAX.
VOLUME IN L R L / MONO R
OUT INTHRU
MICROPHONE LINE IN LINE OUT
LESLIE 11PIN
MIDI
MIN. MAX.
VOLUME IN L R L / MONO R
OUT INTHRU
MICROPHONE LINE IN LINE OUT
LESLIE 11PIN
MIDI
to AC outlet
Leslie Rotary Unit
Leslie “Y” Cable
Leslie Stationary Unit
Standard 11-pin Cable
