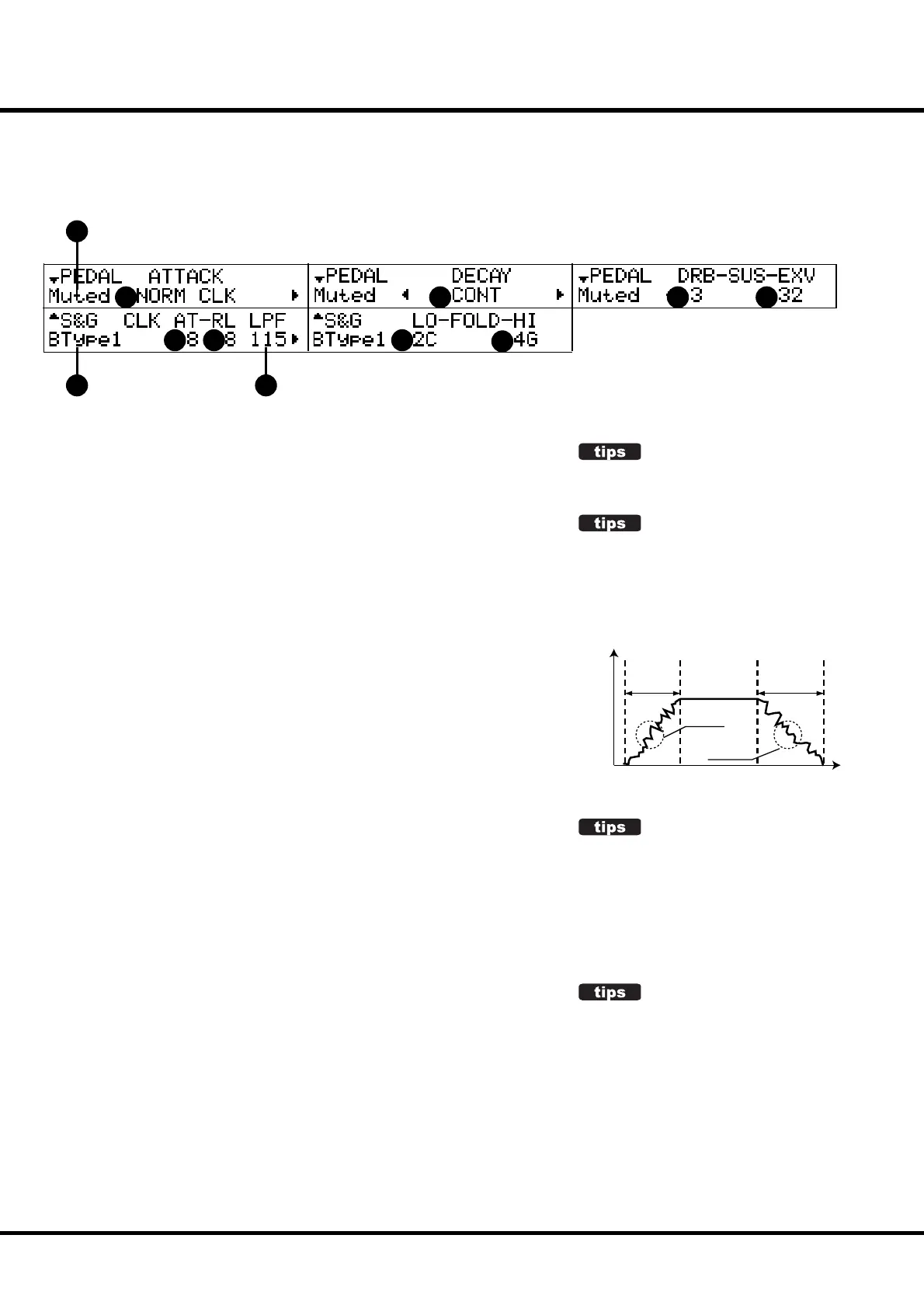

DRAWBAR
In this mode, you can set the Parameter relating to the Drawbar sound of each key-
board.
To locate this mode:
Touch the [MENU] button and display MENU, touch the [PAGE] button and select
page A and choose [1] DRAWBAR.
MANUAL DRAWBARS (SWELL and GREAT)
1. TONEWHEELS
Select the Virtual TONEWHEEL set (waveform) for the manual drawbars.
BType1: The traditional Tonewheel sound of B-3/C-3.
BType2: This sound includes more leakage noise and utter.
Mellow: Transparent sine wave.
Brite: The analog-oscillating sound of the Vintage Hammond X-5.
Saw: Sawtooth waveform (Non-Hammond “Combo Organ” Style).
2. CLICK - ATTACK LEVEL
e higher the value, the louder the click volume. At 4 no key click is pronounced.
Also, when the value is below 4, the attack speed of the drawbar voices slows.
3. CLICK - RELEASE LEVEL
e higher the value, the louder the click volume. At 4 no key click is pronounced.
Also, when the value is below 4, the release rate slows.
4. CLICK - LPF
is allows you to set the tone of the Key-Click.
e setting range is 0 - 127. e larger the value, the brighter the Key-Click.
5. FOLD-BACK - LOW
is allows you to set at which key the 16´ Drawbars starts to FOLD-BACK. (Fold-
back: Repeating the same octave in a certain range on the keyboard.)
e fi rst key (= the far left key on the manual) is displayed as “1C”. e setting range
is 1C - 2C.
6. FOLD-BACK - HIGH
is allows you to set at which key the 1´ Drawbar starts to FOLD-BACK (repeat
the same octave) in the upper-most range. e set range is 4G - 5C.
NOTE: The FOLD-BACK sets not only the 1´ but also 1⁄´, 1⁄´, 2´ and 2⁄´ Drawbars.
TONE-WHEEL SET
Each Tone-wheel set allow you to make ner ad-
justment. (P. 66)
KEY-CLICK
The “Key Click” is the noise heard every time the
key is touched or released on the B-3/C-3, as the
voice is generated by mechanically switching ON
and OFF on these models. The function on this
model simulates the good old noise.
Time
Loudness
Attack
Rate
Release
Rate
Attack
Click
Release
Click
Note On Note Off
EXAMPLE OF CLICK
Simulating the multi-contact keyboard represent-
ed by the B-3/C-3: AT=8, RL=8
Simulating the PCM synthesizer that only attack
pronounces the key click: AT=8, RL=4
Simulating the single-contact keyboard repre-
sented by the X-66: AT=4, RL=4
The slow envelope like the pipe organ: AT=0, RL=0
FOLD-BACK
As the number of the tonewheels was limited on
the B-3/C-3, the organs were designed to repeat
the same octave in the upper-most or lower-most
range. This feature of this model reproduces that.
1
2 3
4
5
6
7
8 9 10 11
