NAMES AND FUNCTIONS

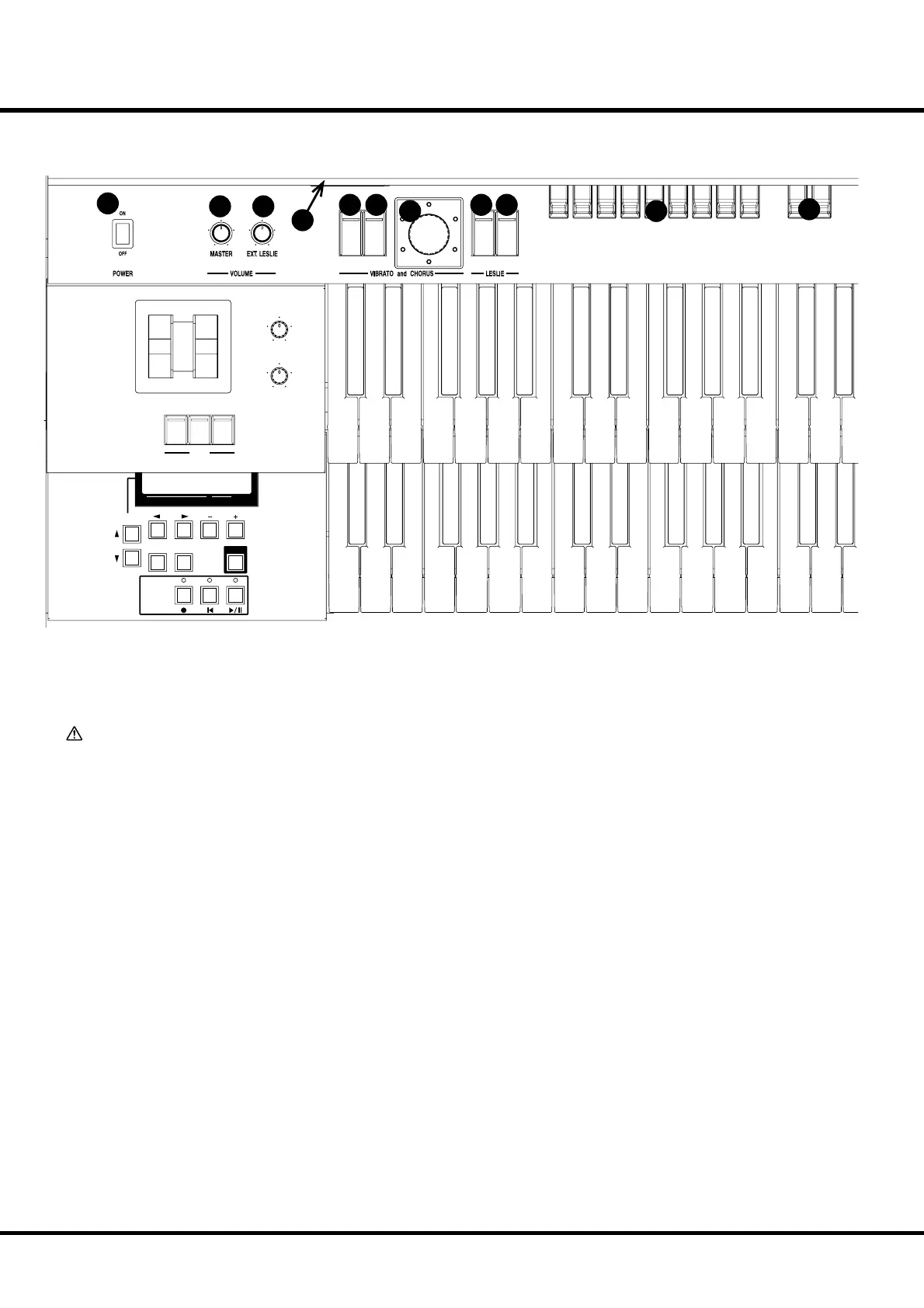

Top Panel
UPPER LEFT
1. POWER Switch
 is switch turns the power ON and OFF. (P. 22)
CAUTION
Even when the POWER switch is turned o , electricity
is still  owing to the instrument at the minimum level.
When you are not using the instrument for a long time,
make sure you unplug the power cord from the wall AC
outlet.
2. MASTER VOLUME Knob
Controls the total volume of internal speaker, headphones and
line out jack. (P. 22)
3. EXT. LESLIE VOLUME Knob
Controls the total volume of external Leslie Speaker.
4. CF Card Slot
Insert the CompactFlash™ Card here.
 is is used to store the song and recall the rhythm style of this
organ. Use required CompactFlash™ Card. (P. 96)
VIBRATO & CHORUS
5. SWELL ON Button
Switches on and off the Vibrato & Chorus Eff ects on the
SWELL Drawbar part. (P. 40)
6. GREAT ON Button
Switches on and off the Vibrato & Chorus Eff ects on the
GREAT Drawbar part. (P. 40)
7. VIBRATO & CHORUS MODE Knob
Changes the depth of Vibrato & Chorus Eff ects. (P. 40)
LESLIE
8. LESLIE ON Button
When it is turned ON, the rotor turns and the sound come
from the Rotor.
When the lamp is lighting, it is “ON”. (P. 41)
9. LESLIE FAST Button
Changes the speed of the Rotor from Slow to Fast and vice
versa. When the lamp is lighting, it is “Fast”. (P. 41)
DRAWBARS
10. SWELL DRAWBARS
Controls SWELL keyboard harmonics. (P. 34)
11. PEDAL DRAWBARS
Controls PEDAL keyboard harmonics. (P. 34)
12. GREAT DRAWBARS
Controls GREAT keyboard harmonics. (P. 34)
PERCUSSION
13. SECOND ON Button
Adds 4´ Percussion (decay sound) to SWELL keyboard. (P. 39)
14. THIRD ON Button
Adds 2⅔ ΄ Percussion (decay sound) to SWELL keyboard. (P. 39)
15. DECAY FAST Button
Changes decay time of Percussion. (P. 39)
SWELL
PRESET
TRANSPOSE
PEDAL GREAT
ON
SWELL
ON
GREAT
LESLIE
ON
LESLIE
FAST
GREAT
TO
PEDAL
PEDAL
TO
GREAT
SUSTAIN
PEDAL
REVERB
EXTRA VOICE
VOLUME
V-3
C-1
C-3C-2
V-1V-2
VIBRATO
CHORUS
AND
PITCH BEND MODULATION
PEDAL
PLAYJUMPMENU
SEQUENCER
PAGE/ PARAM.
1234
VALUE
SONG
1
2 3
5 6
7
8 9
10
11
4
