Owner’s Manual
90
ZONES
To control external MIDI equipment, You must dedicate any por-
tion or all of a keyboard to that control. ese are called “EXTER-
NAL ZONES”
You are also able to play the Drawbar Voices simultaneously with
the EXTERNAL ZONES.
e Swell, Great and Pedal Zones that play the Drawbar Voices are
pre-set at the factory to play all notes of the keyboard.
To locate this mode:
Touch the [MENU] button to display the MENU, select page D by
the [PAGE] button, and then touch [3] ZONES.

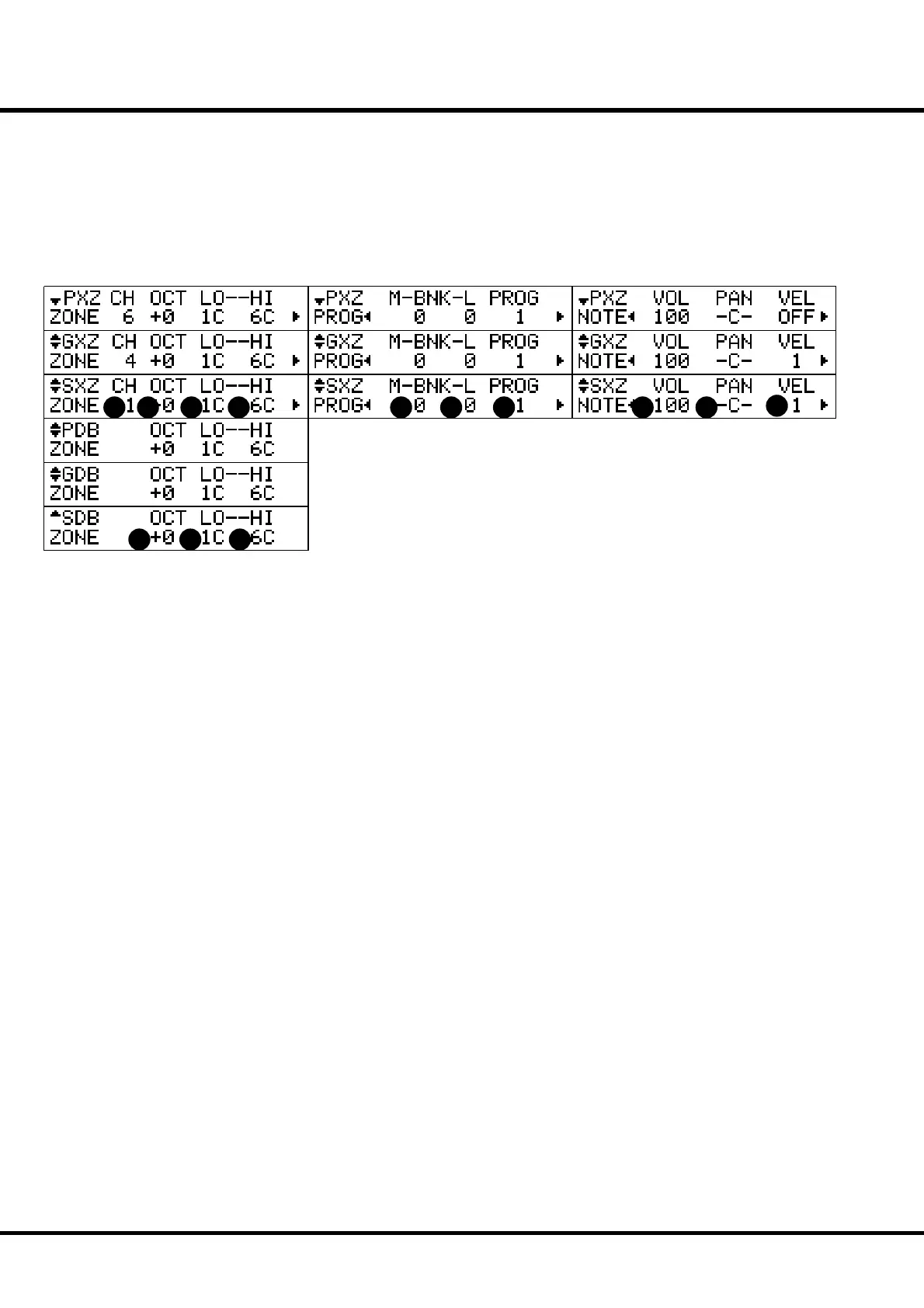

Items in the top left corner
e current ZONE you are editing is displayed in the top left
corner of the Zone mode.
SDB: Swell Drawbars
GDB: Great Drawbars
PDB: Pedal Drawbars
SXZ: Swell External Zone
GXZ: Great External Zone
PXZ: Pedal External Zone
DRAWBARS
1. ZONE - OCTAVE
is sets the octave the Drawbar sound engine produces.
Setting Range: -2 to +2.
2. ZONE - LO
3. ZONE - HI
ese are for setting the zone the Drawbar sound engine pro-
duces on each manual; the lowest by LO and the highest by HI.
Setting can also be made by touching the desired key holding
down the [JUMP] button, instead of pressing the [VALUE]
button.
EXTERNAL ZONES
4. MIDI CHANNEL
is is the choosing the External Zone’s transmitting MIDI
channel.
e range is 1 - 16, and OFF.
5. NOTE - OCTAVE
is is for selecting the octave to be transmitted by this zone.
e octave that is transmitted may be set to be diff erent than
the octave that you may be playing.
6. ZONE - LO
7. ZONE - HI
ese set the playing range of the chosen External Zone on
each of the Swell, Great manuals and Pedalboard.
Set the lowest note at LO and the highest one at HI. To forbid
sending note data, set the HI parameter to “OFF”.
NOTE: For 5 and 6, you can set the value by pressing [JUMP] but-
ton, while holding down the desired note on the manual (or
pedalboard).
8. PROGRAM - BANK MSB
9. PROGRAM - BANK LSB
10. PROGRAM - PROGRAM CHANGE
ese are for setting the Bank Select and the Program Change
data to be transmitted by this zone.
Please consult the users guide/manual for your specifi c piece of
outboard gear that you wish to control for the exact combina-
tion of commands that allow bank and program change.
You can choose 0 - 127 in the Bank MSB and the Bank LSB,
and 1 - 128 in the Program Change.
11. NOTE - VOLUME
is is for setting the volume (= Control Change #7) of this
zone. However, the set value will null, if the CC# (item #16)
is at “7.VOL”.
12. NOTE - PAN
is is for setting the Pan (= Control Change #10) of this zone.
13. NOTE - VELOCITY
is is for setting the Velocity Curve to send to this zone.
e setting range is OFF, 1 - 4. e velocity of OFF is fi xed at
100. At 1 - 4, the higher the value increases, the higher velocity
is transmitted regardless how the key is played.
NOTE: As the Pedalboard of this organ has no velocity sensing func-
tion, the velocity of PXZ is xed at OFF.
1 2 3
4 5 6 7 8 9 10 11 12
13
To Next Page
