19
Hook-Up

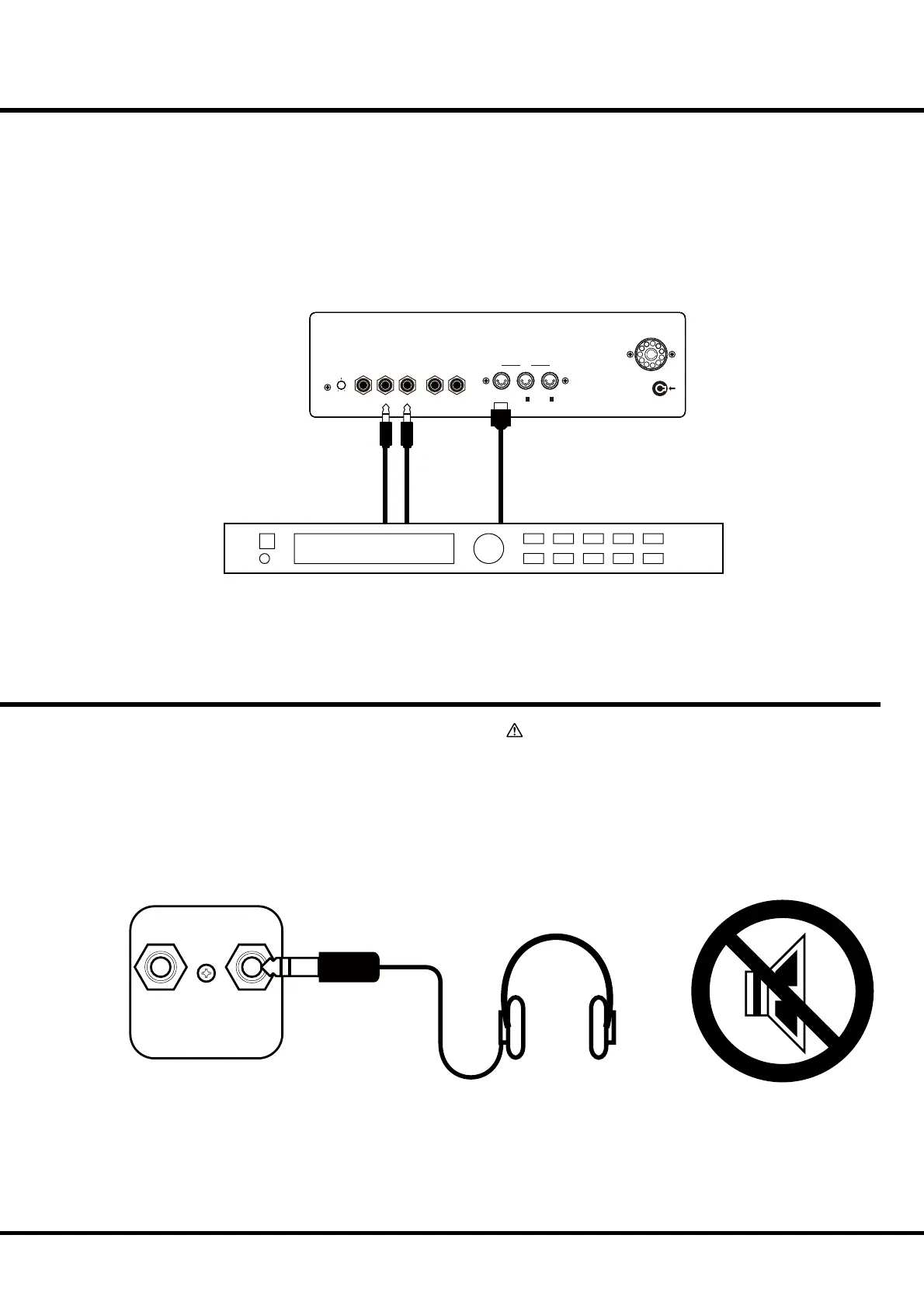

USING A MIDI SOUND MODULE
Each Manual and the Pedalboard on this organ has a External Zone for controlling exter-
nal MIDI sound modules. When Connected to the LINE IN jacks, the external MIDI
sound module output is sent to the built in speakers, stationary channel of the Leslie
terminal (on a so-equipped Leslie), the LINE OUT jack and the headphone jack.
NOTE: Adjust the volume of the equipment connected to the LINE IN jack on the external equip-
ment itself.
USING HEADPHONES
You can practice silently by connecting the stereo headphones
to the HEADPHONE jack of this organ.
When the plug is inserted to the HEADPHONE jack, the
built-in / external Leslie speakers are silenced.
ATTENTION
Hold the molded part of the plug of the cord when you
connect or disconnect it to avoid the risk of breaking
the cable.
Do not use excessive volume with headphones, due to
risk hearing damage.
HEAD
PHONE
FOOT
SWITCH 2
MIDI Sound Module
MIN. MAX.
VOLUME IN L R L / MONO R
(KEYBOARD) (MULTI)
OUT
MICROPHONE LINE IN LINE OUT
LESLIE 11PIN
MIDI
IN 1 IN 2
LINE OUT MIDI IN
To Next Page
