Appendix B

Troubleshooting

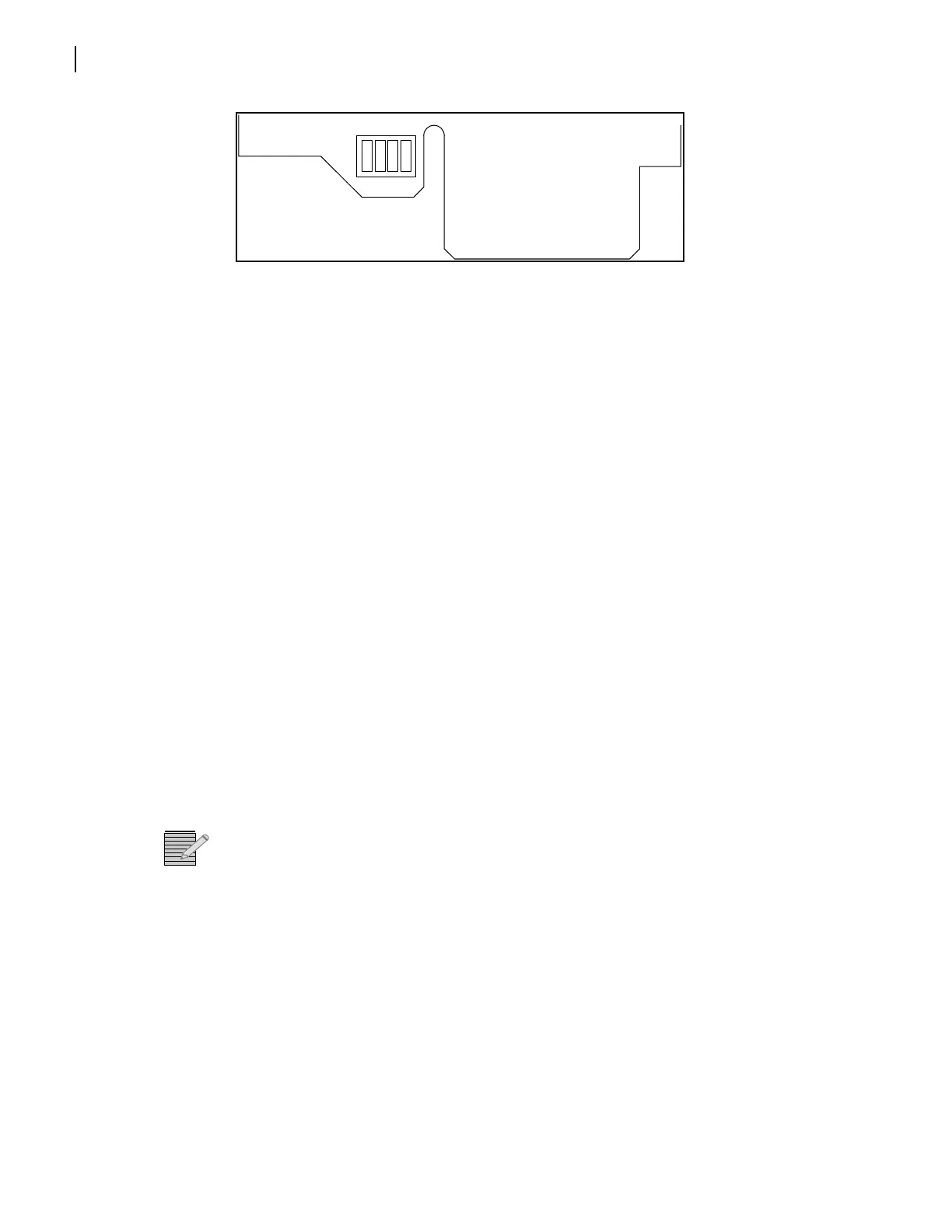

Figure B-1 Location of DIP Switches on 6800+ETH Module

3 Using a sharp object, set DIP switch 2 to the On (down) position.

The default IP address is 192.168.100.250.

4 Reinstall the 6800+ETH module in the frame, following the instructions in Installing a

Resource Module on page 15.

5 Wait ten seconds for the 6800+ETH module to power up and initialize.

6 Configure or program your module with a new IP address.

 To change the IP address using Telnet, see Establishing a Telnet Session on page 70,

and then follow the instructions for setting an IP address as described in setipaddr on

page 72.

 To change the IP address using remote control parameters in Navigator, see the topic

“Setting the Device Tab” in your CCS documentation for more information.

7 Remove the 6800+ETH module from the frame, and then set DIP switch 2 to the Off (up)

position.

8 Reinstall the 6800+ETH module.

When the 6800+ETH module powers up and initializes, it will have the newly configured IP

address. If you are using CCS software such as Navigator, you should rediscover the frame

with the new IP address.

Pinging an Installed 6800+ETH Module

If you cannot discover the 6800+ETH module with a CCS application, ping the module’s IP

address to see if it is connected to the network. If the IP address is verified, run another

discovery.

Note: You can ping a 6800+ETH module 10 to 20 seconds after turning on all connected

frames. However, it may take up to four minutes for an 6800+ETH module to become

available for Navigator discovery.

To verify the 6800+ETH module’s network connection, ping its IP address by following these

steps:

1 Open a DOS command prompt window and type the following:

ping 192.168.100.250

In the DOS entry above, “192.168.100.250” is the factory default IP address. If you have

changed the IP address of your 6800+ETH module since receiving it, use the new IP address

instead at the DOS prompt.

2 Press ENTER.

You will get one of two possible responses:

4 3 2 1
