FR6822+ Frames
Installation and Operation Manual
33
Copyright © 2008-2011, Harris Corporation

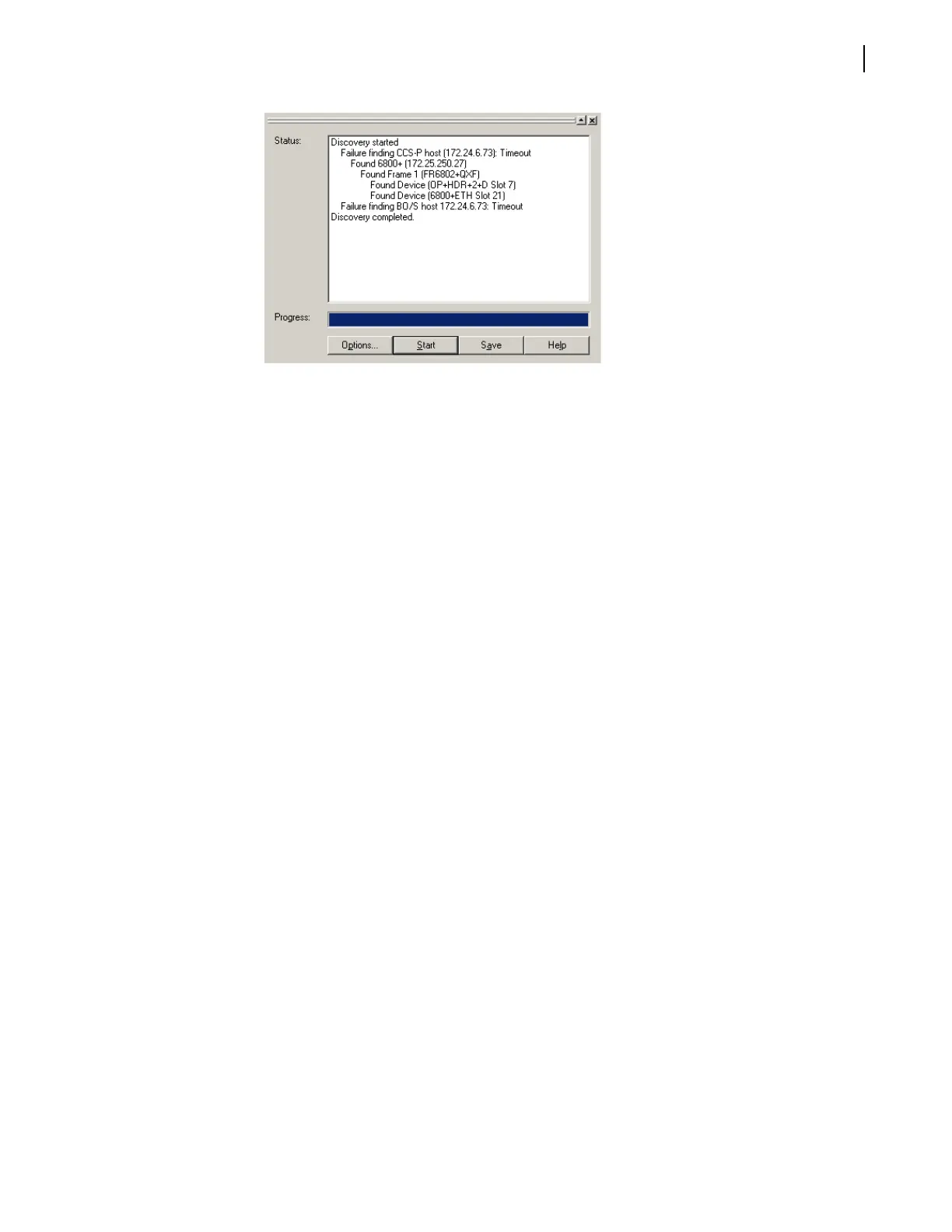

Figure 4-1 Discovering FR6822+QXFE Frames
8 In the Discovery pane, click Save to transfer the discovery results to the Discovery folder in
the Navigation pane.
If the frame and/or modules do not appear in the Discovery pane, refer to Discovering,
Controlling, and Monitoring Devices on page 87 for troubleshooting information. Your
CCS software online Help also has extensive information on discovering devices.
Monitoring 6800+ Modules in CCS Navigator
Once you have discovered your FR6822+QXFE frame in CCS Navigator and saved the results
of the discovery, the frame and modules will appear in the Navigation pane.
Switch Navigator to Control mode (File > Operational Mode > Control), and then
double-click on a module in the Navigation pane to open a Control dialog box. Control
dialog boxes provide navigation tools to monitor read-only parameters and adjust control
parameters.
The Diagnostics pane, which appears across the bottom of the screen in Control mode,
provides alarm information if and when errors appear.
See Volume 1: Chapter 15 of your CCS Navigator User Manual for more information about
configuring and controlling 6800+ modules using CCS software.
Using Q-SEE Compliant Modules in FR6822+QXFE Frames
A 6800+ETH module can transmit monitoring thumbnails to Navigator at up to three
frames per second for all the Q-SEE compliant modules that are installed in the host
FR6822+QXFE frame. In addition, Q-SEE compliant modules have enhanced alarm
functionality. See your Navigator documentation for more information.
Not all modules are Q-SEE compliant. To find out if any particular module is compliant,
consult our website. Some modules may require a firmware upgrade for Q-SEE compliance.
Extra System Requirements for Thumbnails
When displaying thumbnails, Navigator’s system requirements may exceed those listed in
the manual. For best results, your system should at least meet the following requirements:
P4 / 3 GHz, dual hyperthreading CPU with 1 GB of RAM
