Chapter 2
Installation
16
Copyright © 2008-2011, Harris Corporation
2 Locate the resource module on the left side of the frame, beside the power supply. (See
Figure 2-6.)

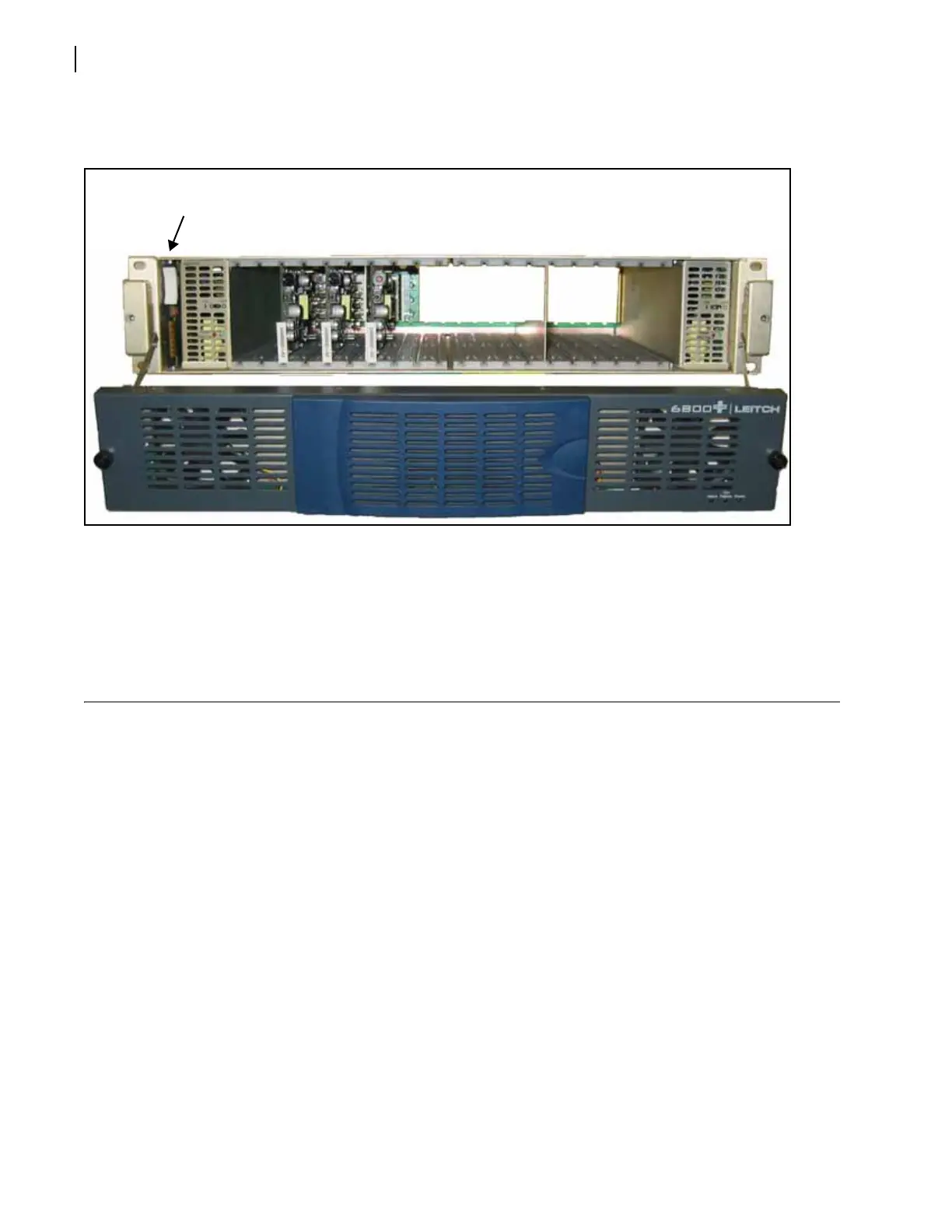

Figure 2-6 Location of Resource Module within a FR6822+ Frame
3 Grasp the extractor handle on the installed module, and then pull the module out of its slot
using the handle as a lever.
4 Close the front panel to ensure proper frame ventilation.
Installing and Removing 6800+ Modules
There are different module and connector types that may require installation:
Triple-slot back connectors
Double-slot back connectors
Single-slot back connectors
Front modules
Depending on the product type, there are various back connectors, front modules, and
frame types that are available, interchangeable, and compatible. For example, module back
connectors can come in either triple-slot, double-slot, or single-slot sizes; and certain 6800+
modules and/or back connectors can be installed in either an FR6822+, FR6802+QXF,
FR6802+DM, FR6822+, or 6800/7000 series frame. Check the individual module manual
that comes with your product to identify which back connector types work with your
module, and which frames are compatible with the module.
Up to 20 front modules connected to single-slot back connectors fit in an FR6822+ frame.
Up to 10 front modules can fit in an FR6822+ frame if they are connected to double-slot
back connectors (2 spaces are required to accommodate the extra width of the back
connector).
This slot must contain a 6800+ETH
resource module if you intend to
operate the frame remotely.
