Chapter 4
FR6822+QXFE Configuration, Monitoring, and Control
52
Copyright © 2008-2011, Harris Corporation
Streaming
Video
With 6800+ ETH firmware version 4.2 and higher, you can stream video to the HTTP page
for the 6800+ frame.
When viewing alarm streaming, the border of the thumbnail indicates if the source card has
an alarm.
A red border indicates a critical alarm, and a yellow border indicates a warning alarm.
See the following sections for more information:
 Streaming From Modules to the 6800+ETH Resource Module on page 52
 Streaming From the QSEE6800+ Module on page 53
Streaming From Modules to the 6800+ETH Resource Module
For modules that are QSEE-compliant and thumbnail-enabled, you can view a module
thumbnail within the HTTP control interface in two ways:
 By clicking the Video Streaming option below the 6800+ module in the Navigation
pane, as in Figure 4-20. (Devices that do not support video streaming do not have this
item in the Navigation pane.)

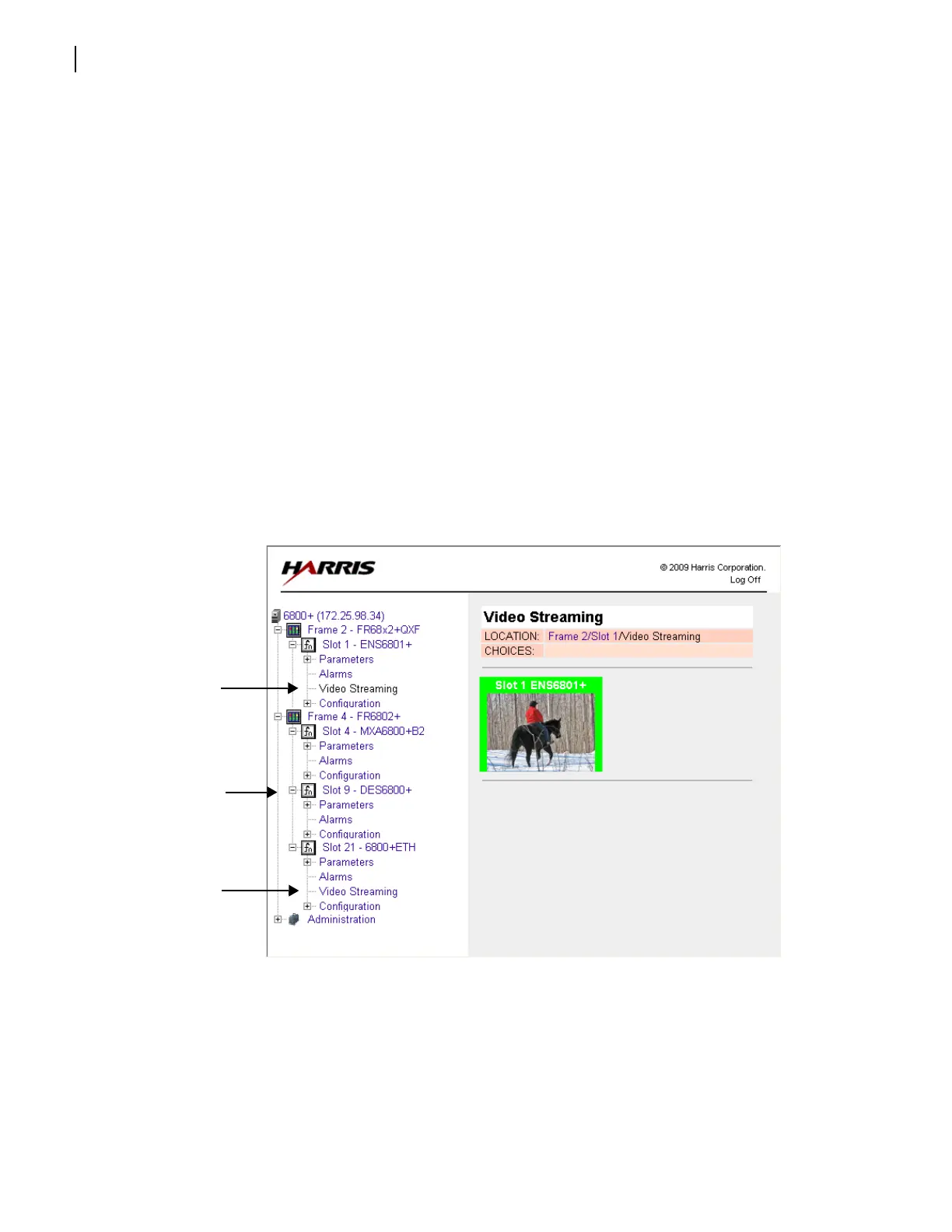

Figure 4-20 Streaming from a Single QSEE-Compliant Device
Module capable of
streaming a
thumbnail
Module not capable
of streaming
thumbnails
Resource module
capable of
streaming
thumbnails
