Installing 6800+ Modules in an FR6822+ Series Frame
Follow these steps to install modules into an FR6822+ frame. All front modules are
hot-swappable and can be installed with the power supply either turned on or turned off.
1 Remove a blank back connector from the frame. See Figure 2-7.
Do not discard the blank back connectors. They may be needed for future configurations.

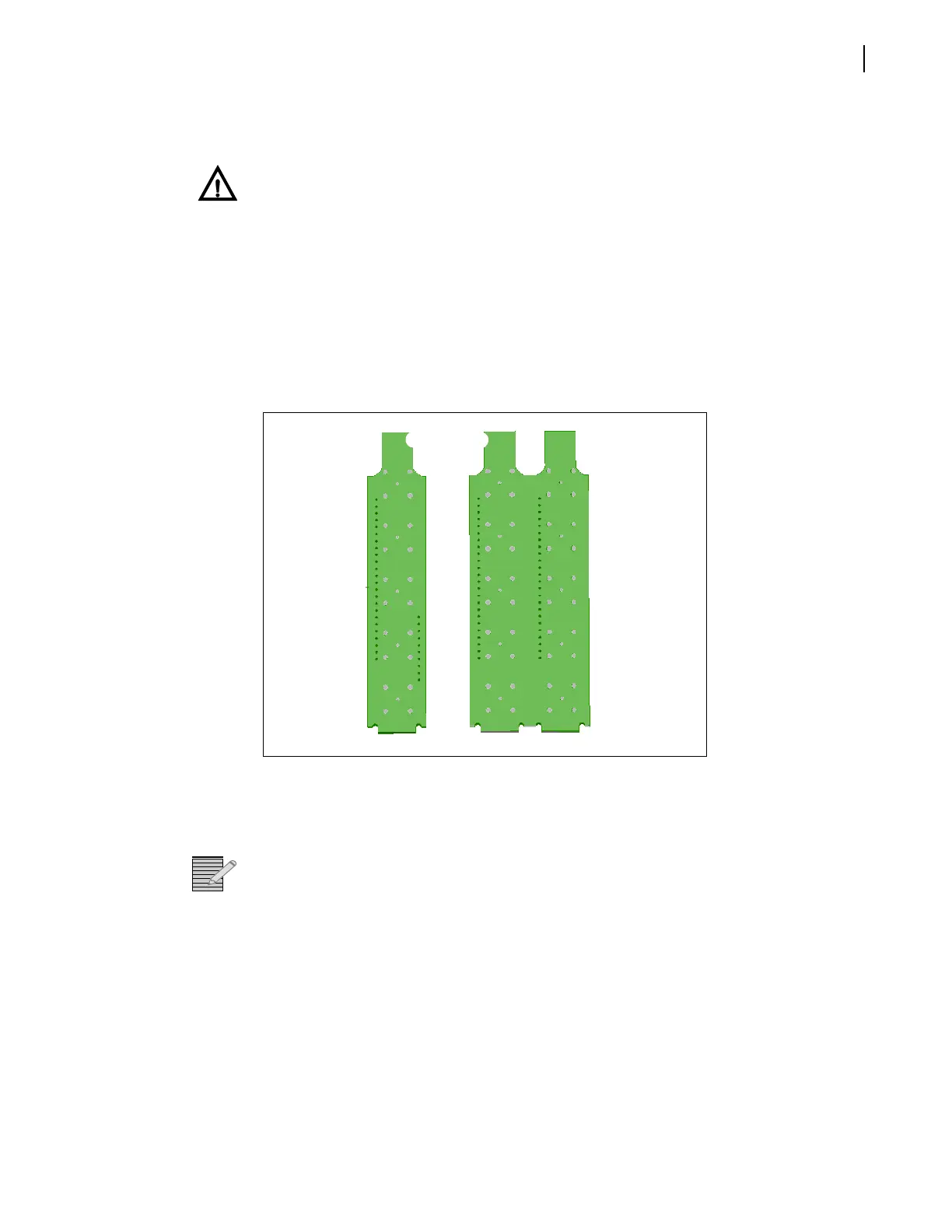

Figure 2-7 Blank Back Connectors
2 Install the new back connector by inserting the bottom lip into the required frame slot and
then screwing it into place. See Figure 2-8 on page 18.
Note: The module lip must be inserted fully and securely into the bottom frame slot to
ensure proper module operation.
Single-slot
back
connector
Double-slot
back
connector
