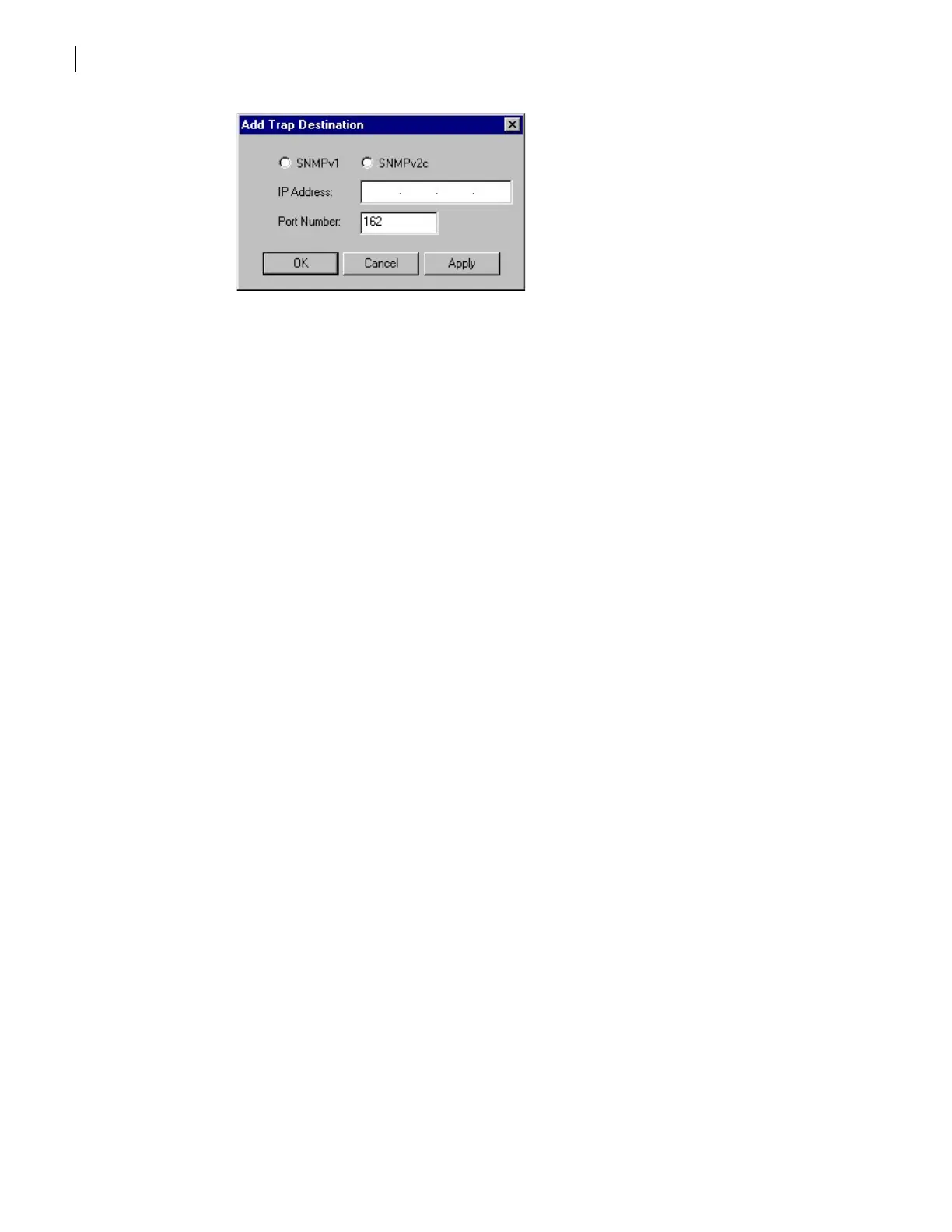

Figure 4-32 Add Trap Destination Dialog Box
2 Choose the SNMP version that the receiving device uses.
3 Enter the IP address of that trap destination.
4 Choose the port number.
The default is 162. You may need to change this depending on how your network servers
are configured. The available range is from 0 to 65535.
5 Click Apply.
A new line is added in the Trap Destination IP Addresses field.
6 Repeat steps 2 through 5 to add more rows to the dialog box.
7 Click OK to return to the SNMP tab of the Configuration dialog box.
Modifying a Trap Destination in CCS Navigator
To modify a trap destination, follow this procedure:
1 In the Trap Destinations IP Addresses list, click on the item you would like to modify.
2 Click the Modify button.
The Modify Trap Destination dialog box appears.
3 Make changes to the fields, which are described in Adding New Destination IP
Addresses for SNMP Traps in CCS Navigator on page 65, and then click Apply.
The selected entry in the Trap Destination IP Addresses field is updated.
4 Click OK to close the Modify Trap Destination dialog box.
Configuring Third-Party SNMP Software Control
Each device to be monitored and controlled via SNMP has a MIB file that defines the
controls and traps (alarms) for that device. These MIB files are available for download from
our website. There are also two general MIB files (leitch.mib and ccsAlarm.mib) that set up
a structure to help define parameters (objects) and alarms (traps).
To set up your 6800+ETH with optional SNMP to communicate with SNMP MIB browsing
software, follow these steps:
1 Make the required network connections between the 6800+ ETH module(s) and your PC
with installed SNMP browser/control software.
2 Ensure that your 6800+ETH module is configured to send traps to the computer that
contains your MIB browsing software.
