FR6822+ Frames
Installation and Operation Manual
65
Copyright © 2008-2011, Harris Corporation

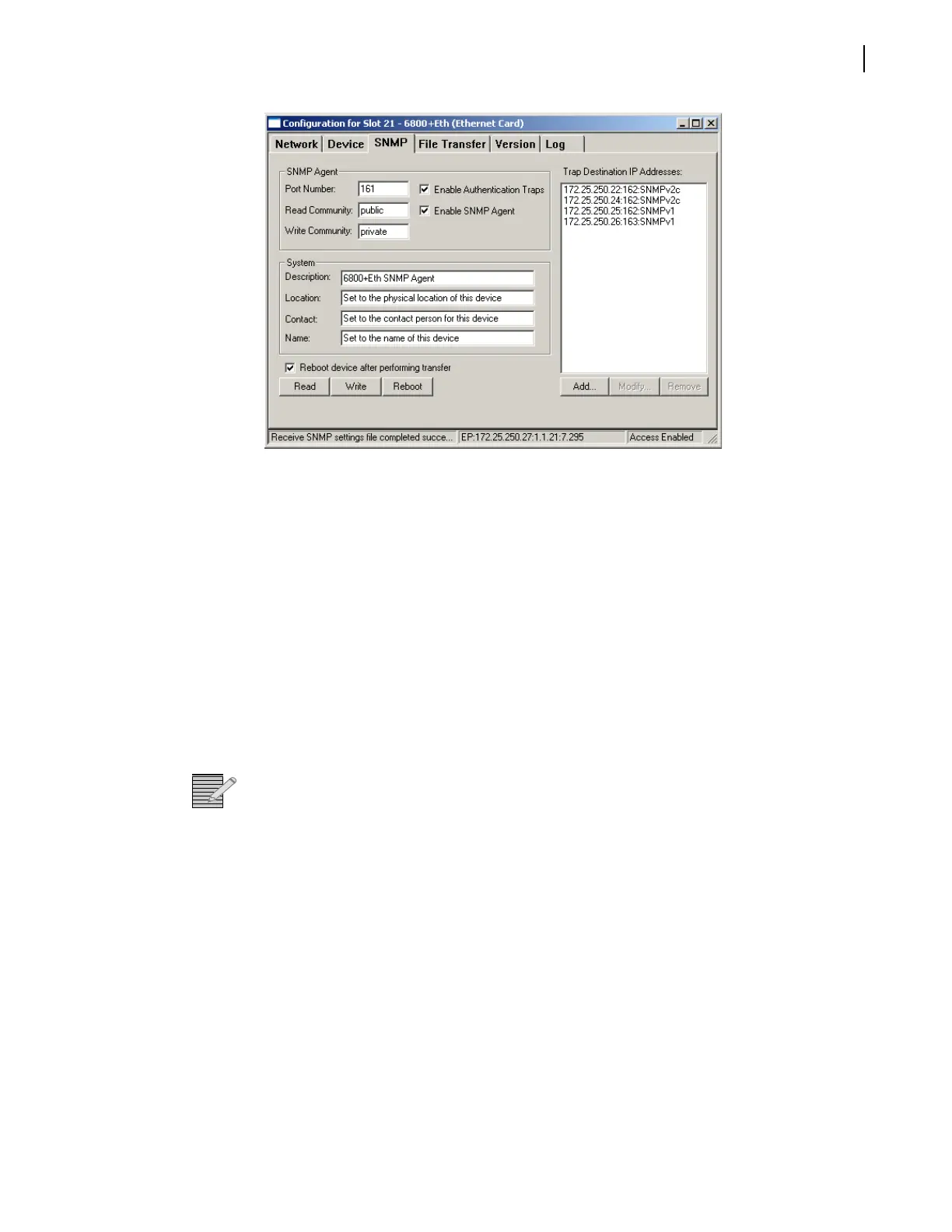

Figure 4-31 SNMP Tab For a 6800+ETH Module
If the Read function fails, your license key may not be entered correctly. See Activating a
6800+ETH License in CCS Software on page 43.
4 Make changes to the SNMP configuration settings.
See the following topics:
Adding New Destination IP Addresses for SNMP Traps in CCS Navigator on
page 65
Adding New Destination IP Addresses for SNMP Traps in CCS Navigator on
page 65
Modifying a Trap Destination in CCS Navigator on page 66
5 (Optional) If you wish the 6800+ETH to reboot automatically when you send the new
configuration to it, place a check beside Reboot device after performing transfer.
Note: The 6800+ETH must be rebooted before changes will take effect.
6 Click Write to send the new configuration to the 6800+ETH card.
7 If you did not place a check beside Reboot device after performing transfer in step 4,
click Reboot now and your changes to the configuration will take effect.
Adding New Destination IP Addresses for SNMP Traps in CCS
Navigator
SNMP trap destinations are the IP addresses and other configuration information for the
computer(s) that will receive alarms from the 6800+ETH module.
To add a new SNMP trap destination, follow this procedure:
1 Click Add beneath the Trap Destination IP Addresses field.
The Add Trap Destination dialog box appears.
