FR6822+ Frames
Installation and Operation Manual
53
Copyright © 2008-2011, Harris Corporation
By clicking the Video Streaming item under the 6800+ETH module in the Navigation
pane, as in Figure 4-21.

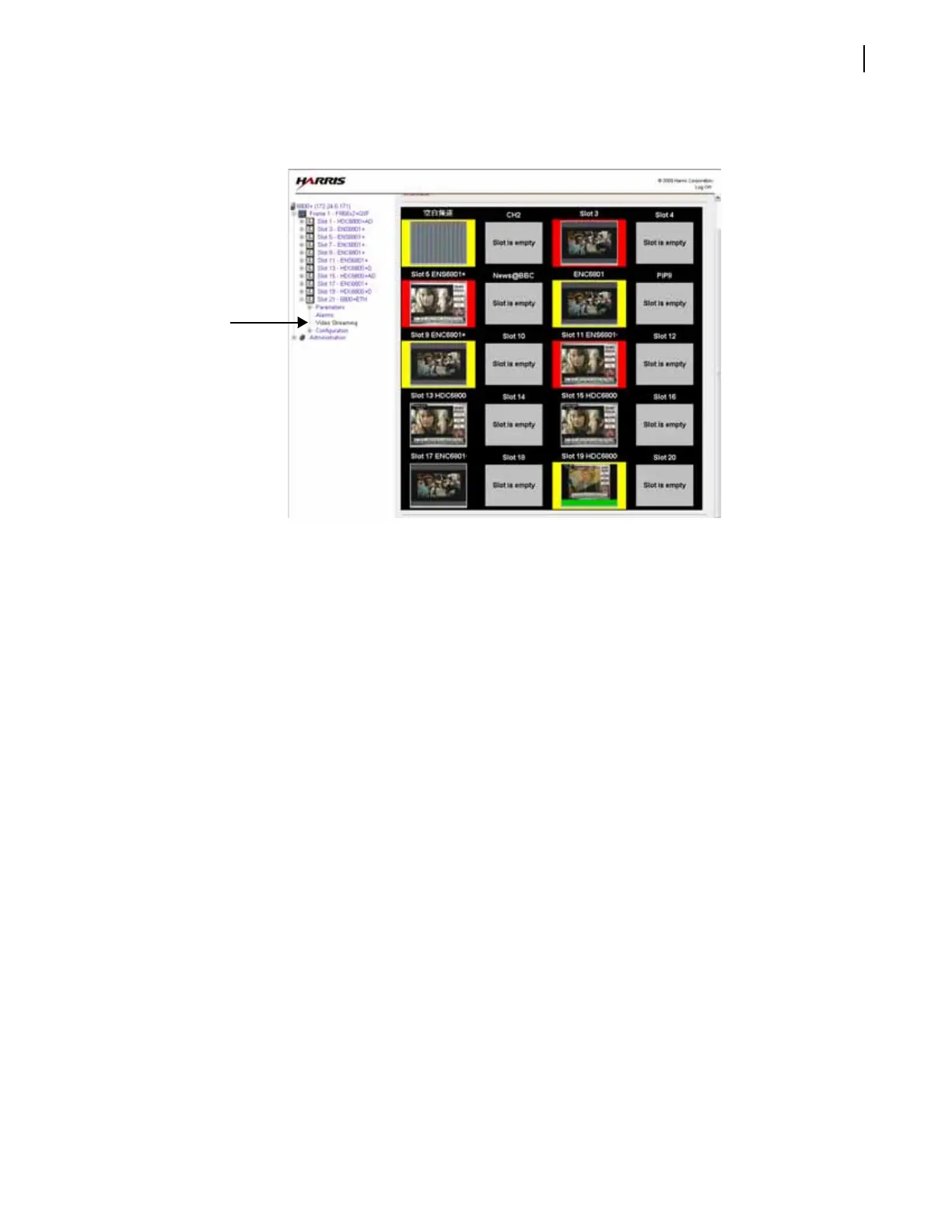

Figure 4-21 6800+ETH Streaming in the HTTP Control Interface
Thumbnails are provided for all Q-SEE compliant modules installed in slots in the
FR6822+QXFE frame that contains the 6800+ETH. To determine if a module is Q-SEE
compliant, see that module’s documentation or visit our website.
To change the name of a slot for a thumbnail, click in the name, and then type a new name.
This only changes the name locally.
To go to the control screen for a card, click on the thumbnail for that card.
Streaming From the QSEE6800+ Module
The QSEE6800+ module does not output video to the 6800+ETH. When viewing the
6800+ETH video streaming page of the HTTP control interface, frame slots that contain a
QSEE6800+ module will display Streaming not supported.
To view video streams out of the QSEE6800+ on the HTTP control interface, select the
QSEE6800+ module itself.
When you select the Video Streaming option under the QSEE6800+ module, a page
similar to Figure 4-23 appears.
Resource module
capable of
streaming
thumbnails
To Next Page
