Chapter 4
FR6822+QXFE Configuration, Monitoring, and Control
34
Copyright © 2008-2011, Harris Corporation
Windows 2000 or Windows XP operating system
Isolated 100Base-T network
You need CCS 3.2.1 or higher to view thumbnails from a FR6822+ frame.
Viewing Thumbnails in a Control Dialog Box
You can view thumbnails in a Navigator (version 3.2.1 or higher) Control dialog box for a
6800+ETH module. To open a Control dialog box, double click on the 6800+ETH module
in the Navigation pane.
A dialog box appears:

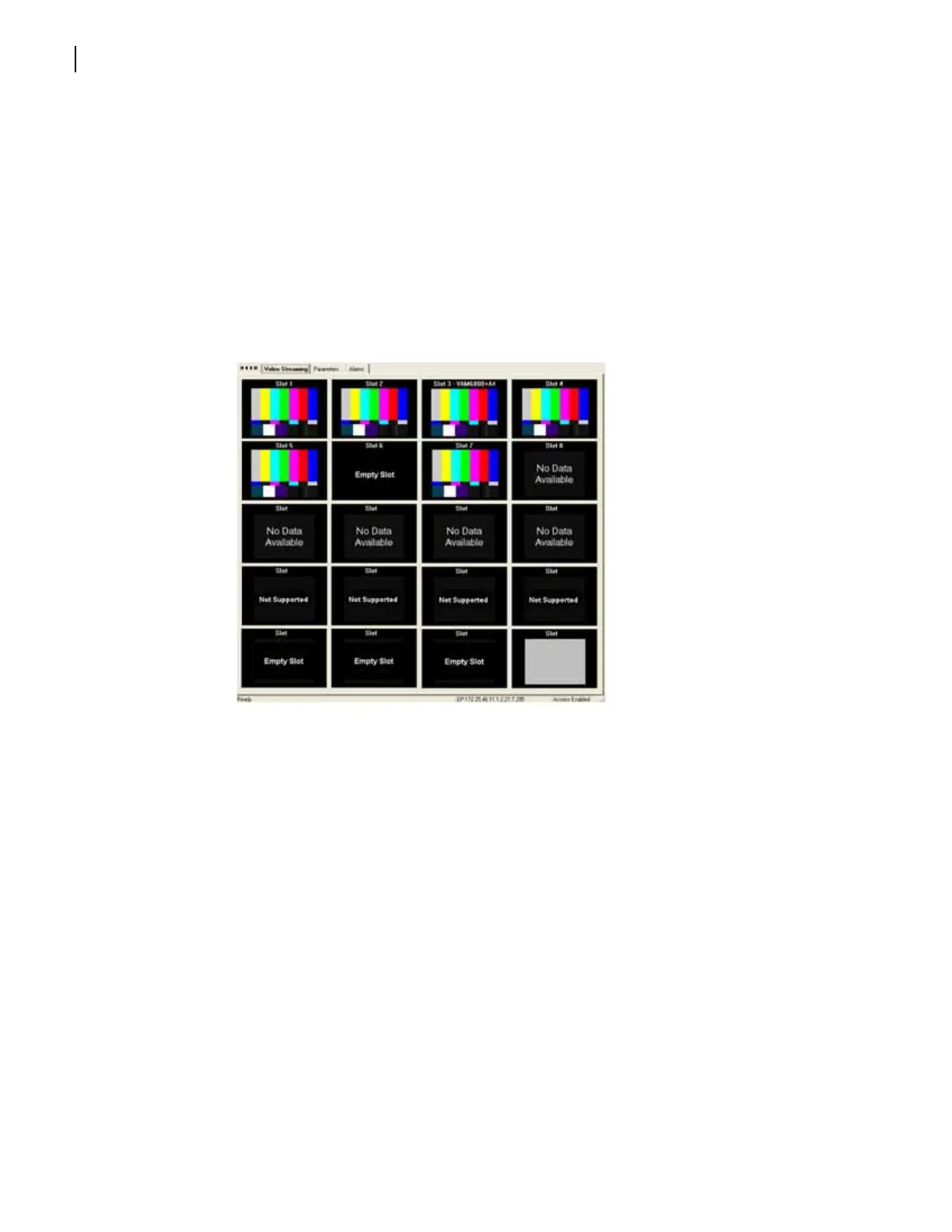

Figure 4-2 Thumbnail Control Dialog Box for 6800+ETH
Thumbnails are provided for all Q-SEE compliant modules installed in slots in the
FR6822+QXFE frame that contains the 6800+ETH.
To determine if a module is Q-SEE compliant, see that module’s documentation or visit our
website.
Thumbnails are 128×96 pixels in size.
Thumbnails in a Module Control Dialog Box
Each Q-SEE compliant module will have an additional Video Streaming tab in its Control
dialog box when installed in a FR6822+QXFE frame with a 6800+ETH module.
Thumbnails on Graphical Navigation Pages
Graphical Navigation pages are available in Navigator only, and for Navigator 4.0 or later
require a Graphical Navigation license. You cannot create or use them in Pilot. Thumbnails
on a Graphical Navigation page display alarm information and video that updates at up to
three frames per second.
