The 6800+ Control Interface appears.

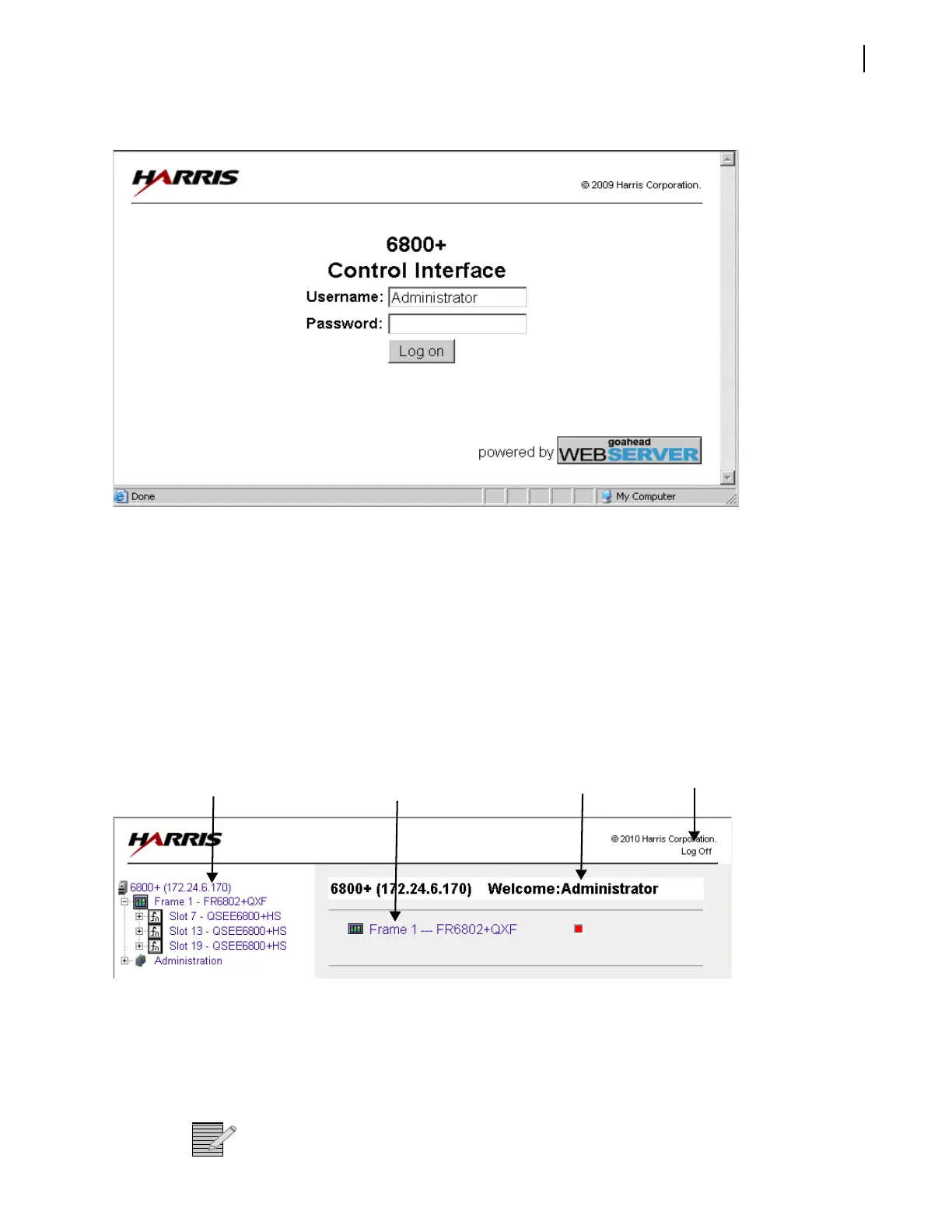

Figure 4-11 6800+ Control Interface Screen
If the 6800+ETH module is off or in a failed state (i.e., disconnected), then you will see a
“file not found” message.
2 Enter a defined user name and password.
The default user name is Administrator, and by default there is no password (leave the field
blank).
3 Click Enter.
4 A screen similar to the following appears:
Figure 4-12 Initial Frame View for 6800+ETH HTTP Browser
The left side of the screen displays a nested menu of all the sub-devices found at that IP
address. Click the + to the left of a module to open folders containing the parameters,
alarms and configuration information available for that device. Click on any nested item to
go straight to the options on that page of the interface.
Note: Names of items in the navigation tree cannot be changed within the HTTP interface.
Navigation pane Click to open a
frame view
Log in ID Click to log out
