Creating a Preset
You cannot create presets for multiple modules at the same time, or for the entire contents
of a frame. To create a preset using the 6800+ HTTP control interface, follow these steps:
1 Browse to the module for which you want to create a preset.
2 Open the + beside that module so that the Configuration folder is visible, and then open
the + beside the Configuration folder so that the contents of the Configuration folder
are visible.

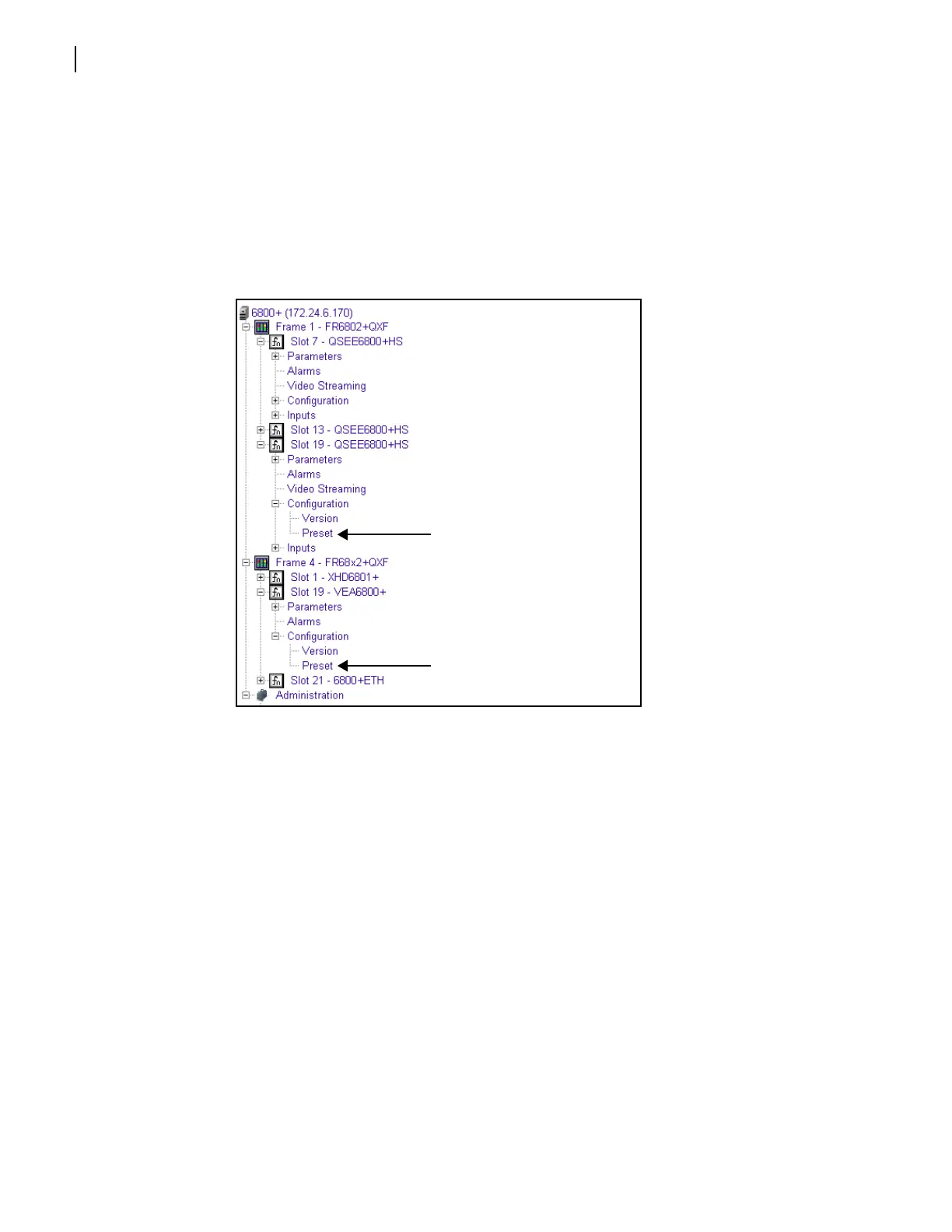

Figure 4-24 Preset Folders in the 6800+ Control Interface
3 Click Preset in the Configuration folder of the module.
In the main screen, there are two buttons, Load Preset and Save Preset.
If your module is a QSEE6800+ module only (not an input to a QSEE6800+, but the parent
module only) two extra options appear in this pane (see Figure 4-25 on page 57).
Root Device - Created preset will contain settings for the QSEE6800+ module only,
with no sub-device parameters or settings
Root and Sub Devices - Created preset will contain settings for the QSEE6800+
module and all sub-devices
4 Click Save Preset.
Depending on your browser configuration, another browser may open. This browser
contains the contents of your preset file. A File Download dialog box also appears.
5 Click Save.
6 In the Save As dialog box that appears, either accept the default save location, or use the
browsing tools to choose a new location, and then click Save.
By default, your preset file will inherit the name of the frame connected to the 6800+ETH
module followed by the name of the module.
Your preset is saved.
