20.4.4 Door and Hinge
C
D
E
F
G
H
A
B

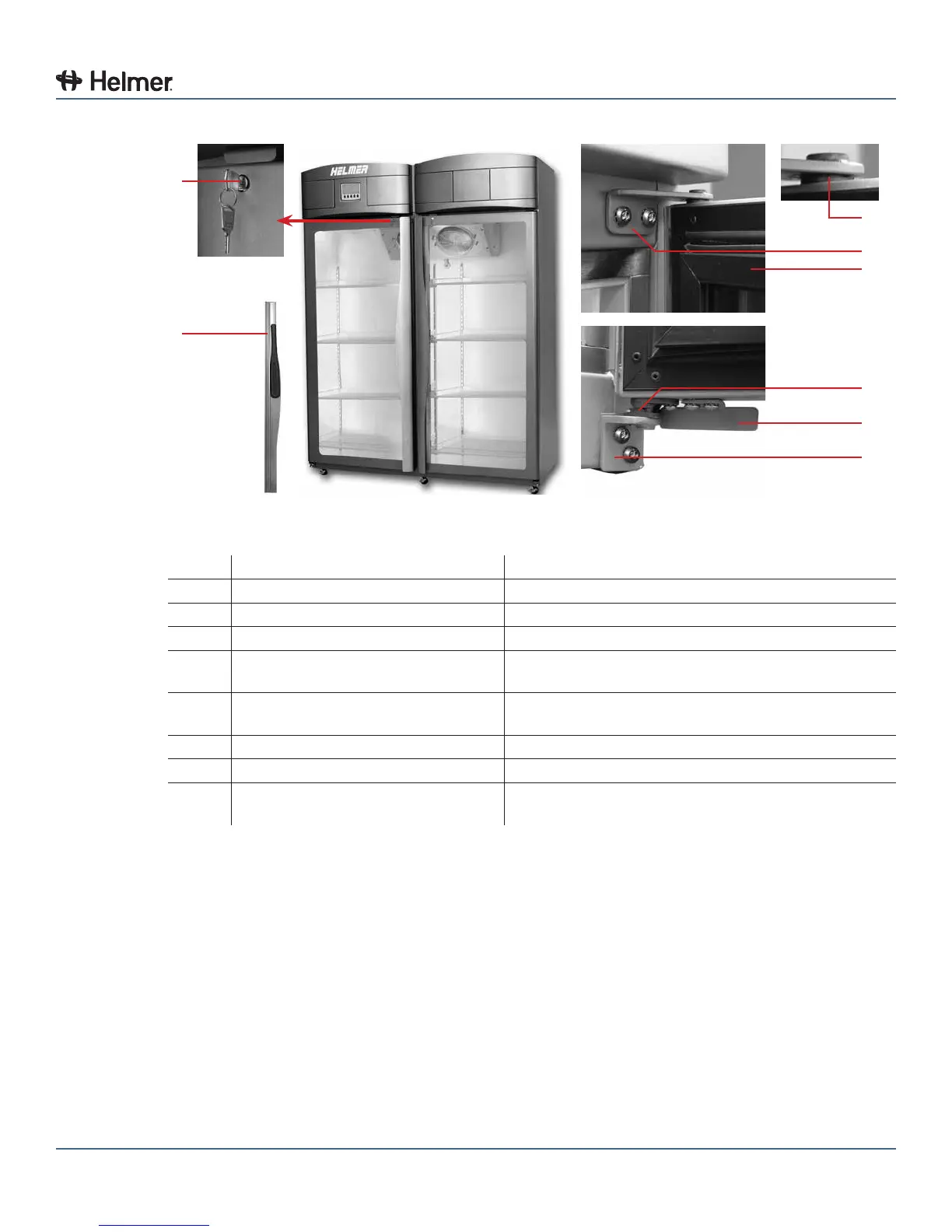

Door and hinge parts.
Label Description Part Number
A Door lock 220374
B Door handle pad 320684-1
C Hinge bearing 220375
D Upper hinge bracket Right hinge: 400376-1
Left hinge: 400376-2
E Door gasket 111 models: 321082-1
120, 125, 245, and 256 models: 320726-1
F Hinge cam 320742-1
G Door stop 320763-1
H Lower hinge bracket Right hinge: 400377-1
Left hinge: 400377-2
