360077-1/O 52
i.Series® - All Models
12 Parts
NOTICE ► Before replacing parts, protect items in refrigerator from extended exposure to
adverse temperature.
► Allow refrigerator temperature to stabilize at setpoint after replacing parts or after
extended door opening.

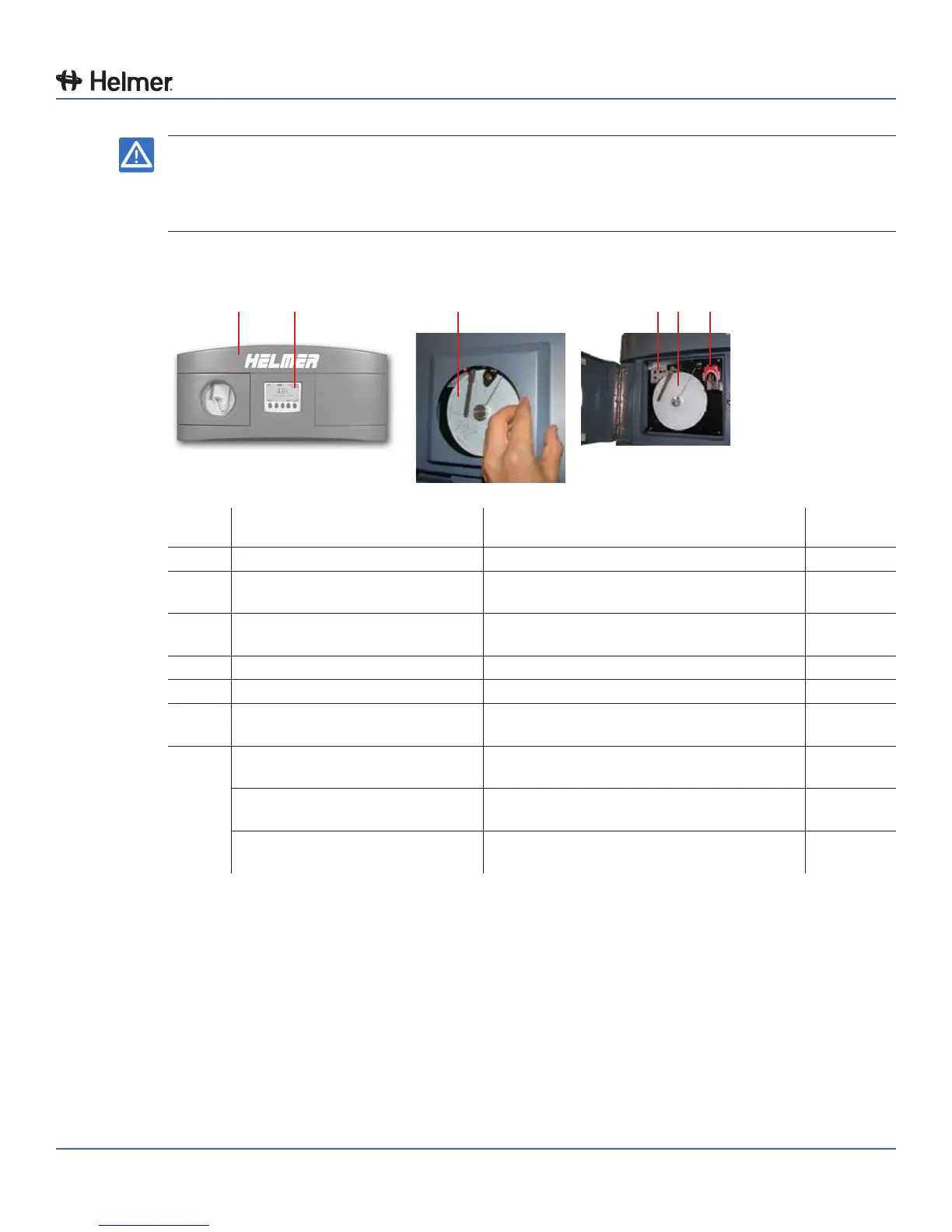

12.1 Front
A B C D E F
Label Description Part Number
Schematic
Label
A Bezel with chart recorder door iB models (except 111 models): 800112-2 -
B i.Center display Refer to subsequent section(s) for part
numbers
K
C Chart recorder and chart recorder
door
iB111 and iHB models: 400409-2 X
D Chart recorder 400409-3 X
E Chart paper 220366 (package of 52 sheets) -
F Chart recorder backup battery
(9 V alkaline, non-rechargeable)
120218 AD
Not
shown
Bezel without chart recorder door iLR and iPR models (except 111 models):
800112-1
-
Bezel without temperature monitor
or chart recorder door
800112-4 -
Caster (swivel with brake) Serial number 974891 and earlier: 220380
Serial number 947892 and later: 220467
-
