360077-1/O 95
Horizon Series™ - Blood Bank Models
20.1.1 Horizon Display
A
B
C
D

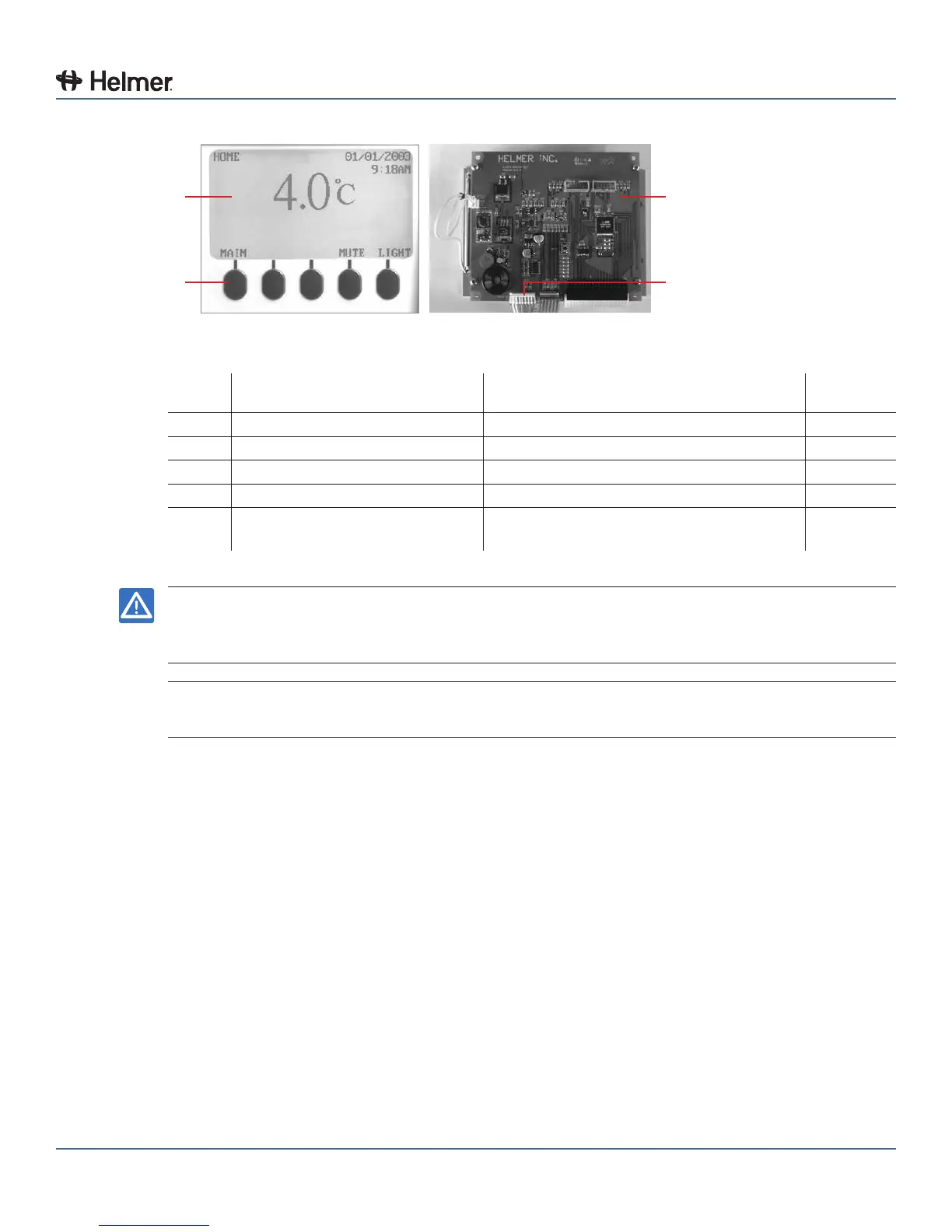

Left: Display assembly showing LCD and touchpad. Right: Display board.
Label Description Part Number
Schematic
Label
A LCD board 120452 K
B Touchpad 320722-1 K
C Display board Included in the control and display board kit K
D Interface cable 400502-1 AF
Not
shown
Display assembly 400509-1 (Includes LCD board and
touchpad)
K
NOTICE The Horizon display assembly is sensitive to static electricity and can be damaged
by electrostatic discharge. Use proper ESD precautions when handling the display
assembly.
NOTE Although the LCD display and touchpad may be replaced individually, Helmer
recommends replacing the entire display assembly.
