i.Series® - All Models
12.3.1 Electrical Box
A
B
C
D E F
G

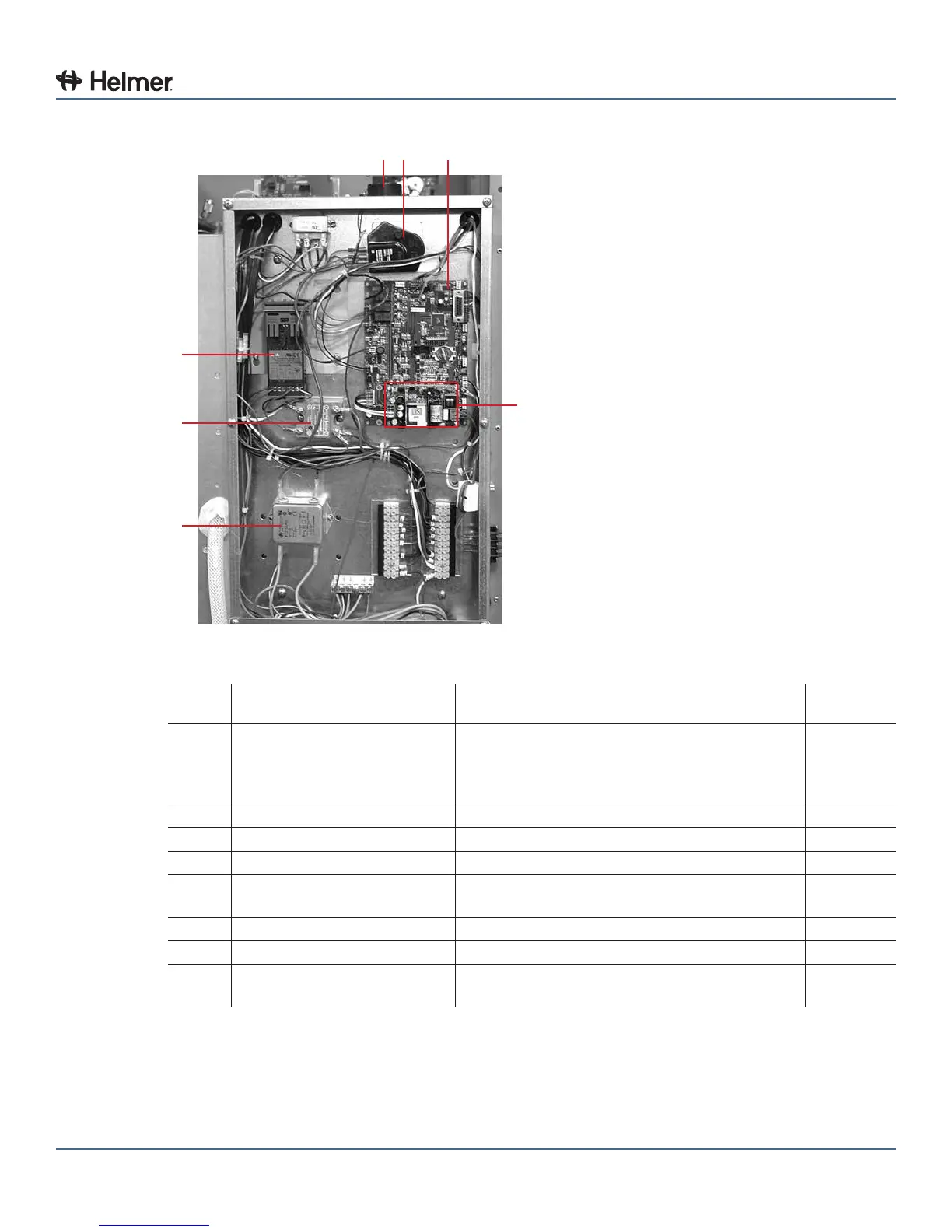

Electrical box features (iLR120 model shown).
Label Description Part Number
Schematic
Label
A Temperature controller
(programmed)
iB models: 400422-1
iLR111 and iPR111 models: 400422-2
iLR and iPR 120, 125, 245, and 256 models:
400422-1
B
B Compressor relay 120426 AA
C Powerlinelter 120400 AK
D Alarm buzzer 120457 D
E Defrost timer (iLR and iPR
models only)
111 models: 120556
120, 125, 245, and 245 models: 800127-1
F
F Control board Included in the control and display board kit E
G Power supply board 400633-1 AH
Not
shown
Control and display board kit 400651-1 (Includes control board, display board,
power supply board, and interface cable)
K,E
