Horizon Series™ - Laboratory, Pharmacy, and International Blood Bank Models
27 Parts
NOTICE ► Before replacing parts, protect items in refrigerator from extended exposure to
adverse temperature.
► Allow refrigerator temperature to stabilize at setpoint after replacing parts or after
extended door opening.
27.1 Front
A B C D

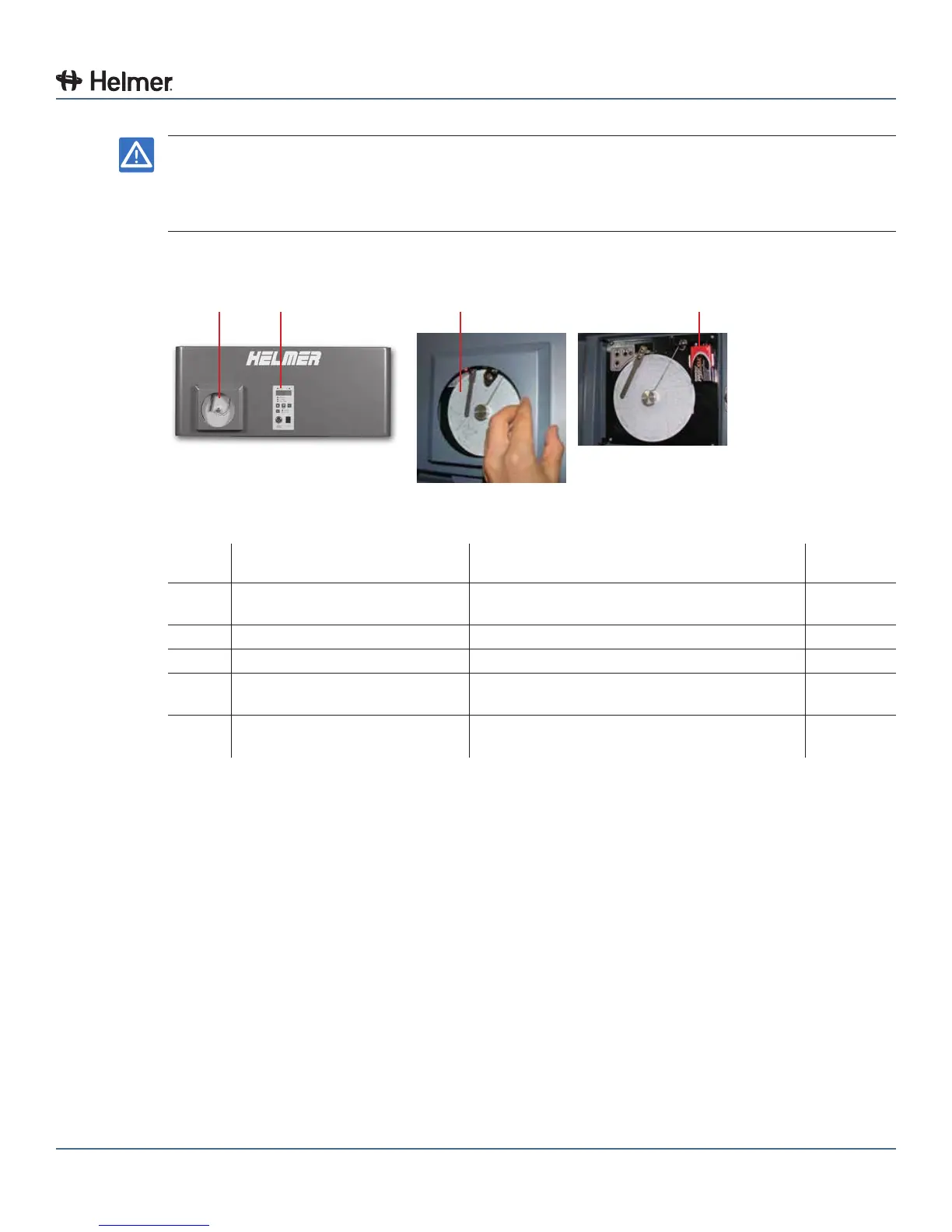

Front features.
Label Description Part Number
Schematic
Label
A Chart recorder and chart
recorder door
400409-2 X
B Laboratory display Refer to subsequent section(s) for part numbers L
C Chart paper 220366 (package of 52 sheets) -
D Chart recorder backup battery
(9 V alkaline, non-rechargeable)
120218 AD
Not
shown
Caster (swivel with brake) Serial number 974891 and earlier: 220380
Serial number 947892 and later: 220467
-
