Helmer iB111 (Version A) - Interior

360077-1/O 57
i.Series® - All Models
12.4 Interior
A
B
C
D
E F G
H
I

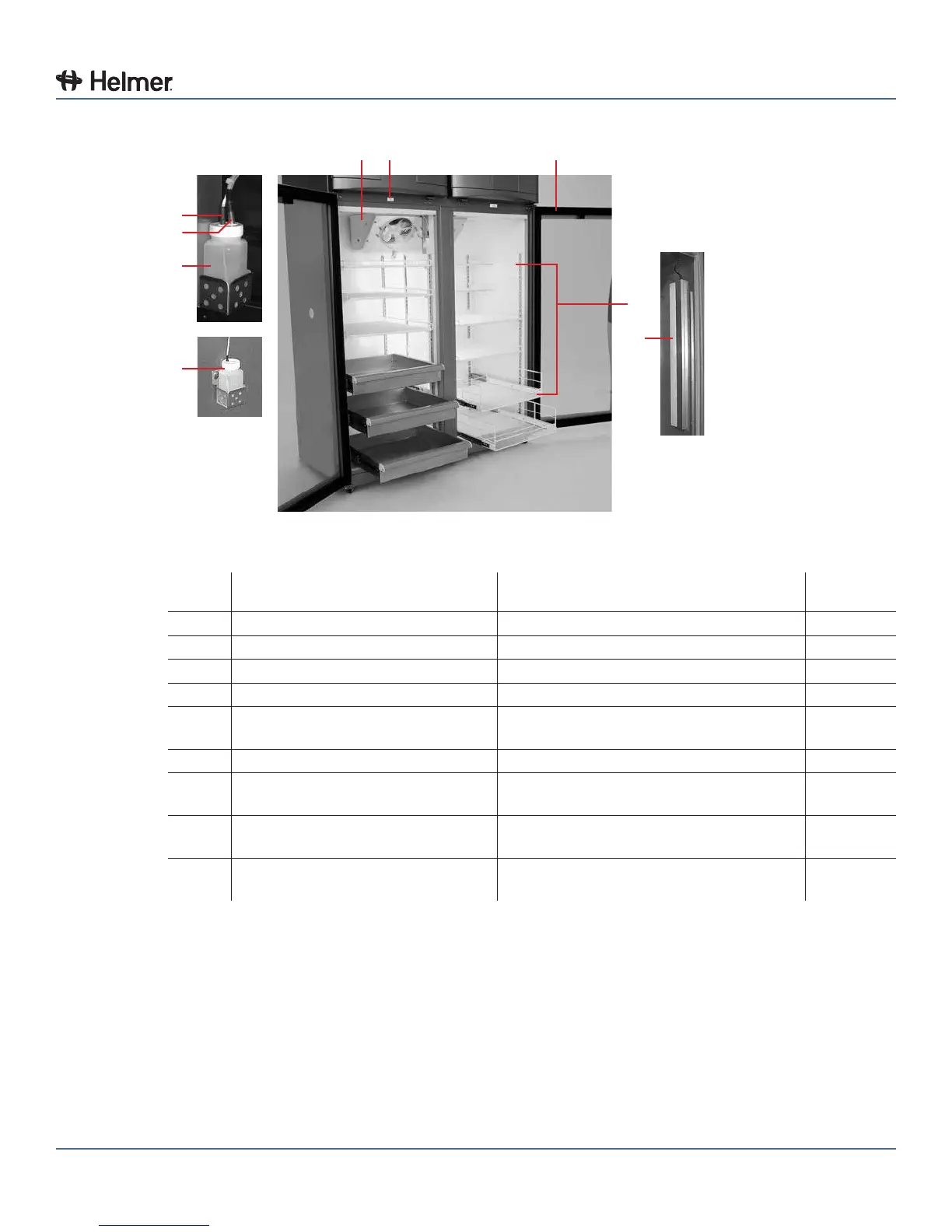

Interior features.
Label Description Part Number
Schematic
Label
A Chart recorder probe 400855-1 AI
B Upper chamber probe 400510-1 AB
C Probe bottle and glycerin kit 400922-1 -
D Lower chamber probe 800117-1 (except 111 model) N
E Unit cooler Refer to subsequent section(s) for part
numbers
AG
F Door switch 120380 I
G Door Refer to subsequent section(s) for part
numbers
-
H Storage parts Refer to subsequent section(s) for part
numbers
-
I Lamp assemblies Refer to subsequent section(s) for part
numbers
