Helmer iB111 (Version A) - Electrical Box

360077-1/O 98
Horizon Series™ - Blood Bank Models
20.3.1 Electrical Box
A
B
C
D E
F

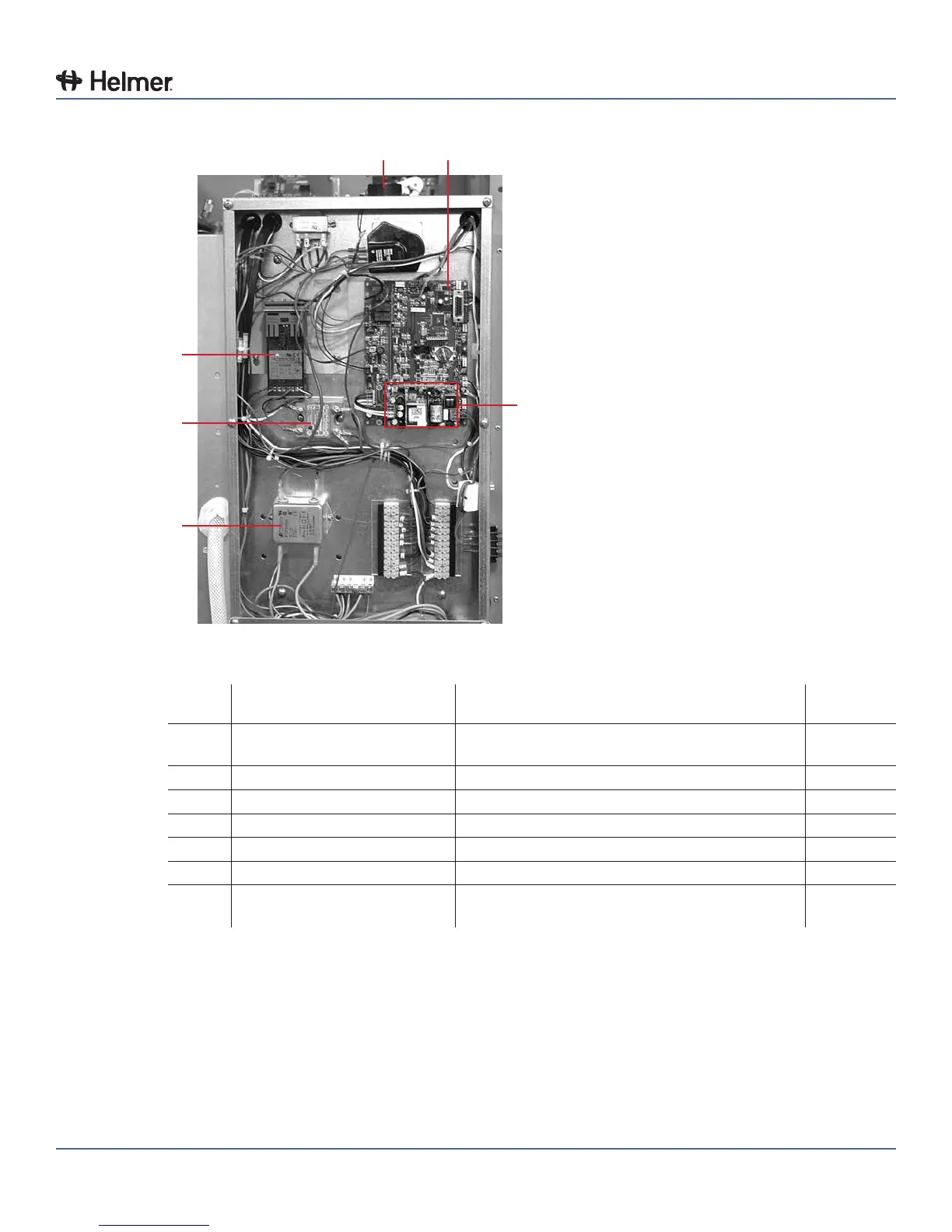

Electrical box features.
Label Description Part Number
Schematic
Label
A Temperature controller
(programmed)
400422-1 B
B Compressor relay 120426 AA
C Powerlinelter 120400 AK
D Alarm buzzer 120457 D
E Control board Included in the control and display board kit E
F Power supply board 400633-1 AH
Not
shown
Control and display board kit 400651-2 (Includes the control board, display
board, power supply board, and interface cable)
K,E
