Horizon Series™ - Blood Bank Models
20 Parts
NOTICE ► Before replacing parts, protect items in refrigerator from extended exposure to
adverse temperature.
► Allow refrigerator temperature to stabilize at setpoint after replacing parts or after
extended door opening.
20.1 Front
A B C D E F G

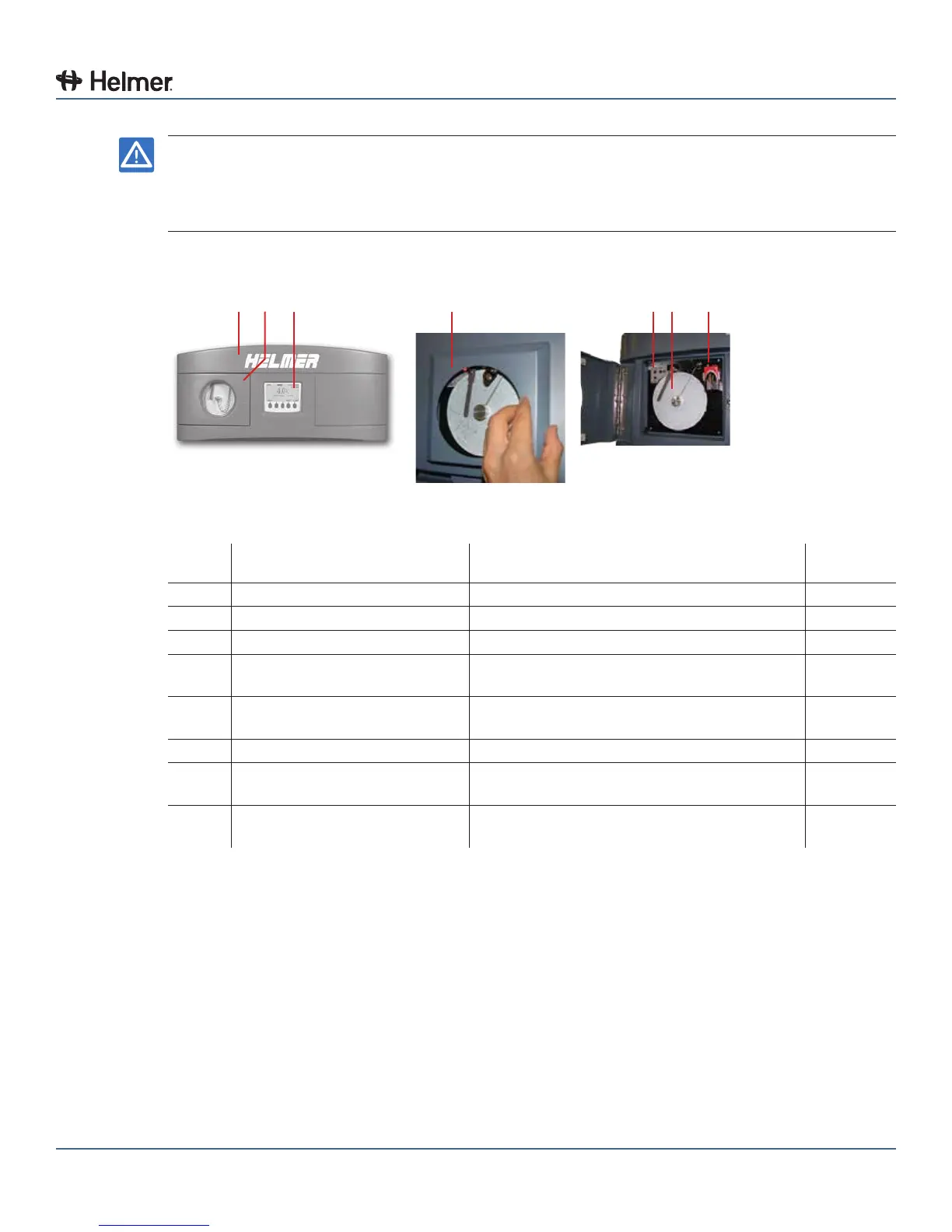

Front features.
Label Description Part Number
Schematic
Label
A Bezel with chart recorder door Contact Helmer Technical Service -
B Chart recorder door Contact Helmer Technical Service -
C Horizon Series display Refer to subsequent section(s) for part numbers K
D Chart recorder and chart
recorder door
111 model: 400409-2 X
E Chart recorder and chart
recorder door
120, 125, 245, and 256 models: 400409-2 X
F Chart paper 220366 (package of 52 sheets) -
G Chart recorder backup battery
(9 V alkaline, non-rechargeable)
120218 AD
Not
shown
Caster (swivel with brake) Serial number 974891 and earlier: 220380
Serial number 947892 and later: 220467
-
