360077-1/O 12
General Information
3.2.3 Horizon Series Laboratory Monitoring and Control System
NOTE This section applies to HPR, HLR, and HHB models.
Horizon Series laboratory and pharmacy refrigerators, and international Horizon Series blood bank
refrigerators are equipped with the laboratory monitor and temperature controller. The combined
laboratory system controls chamber temperature and monitors and displays operational information.

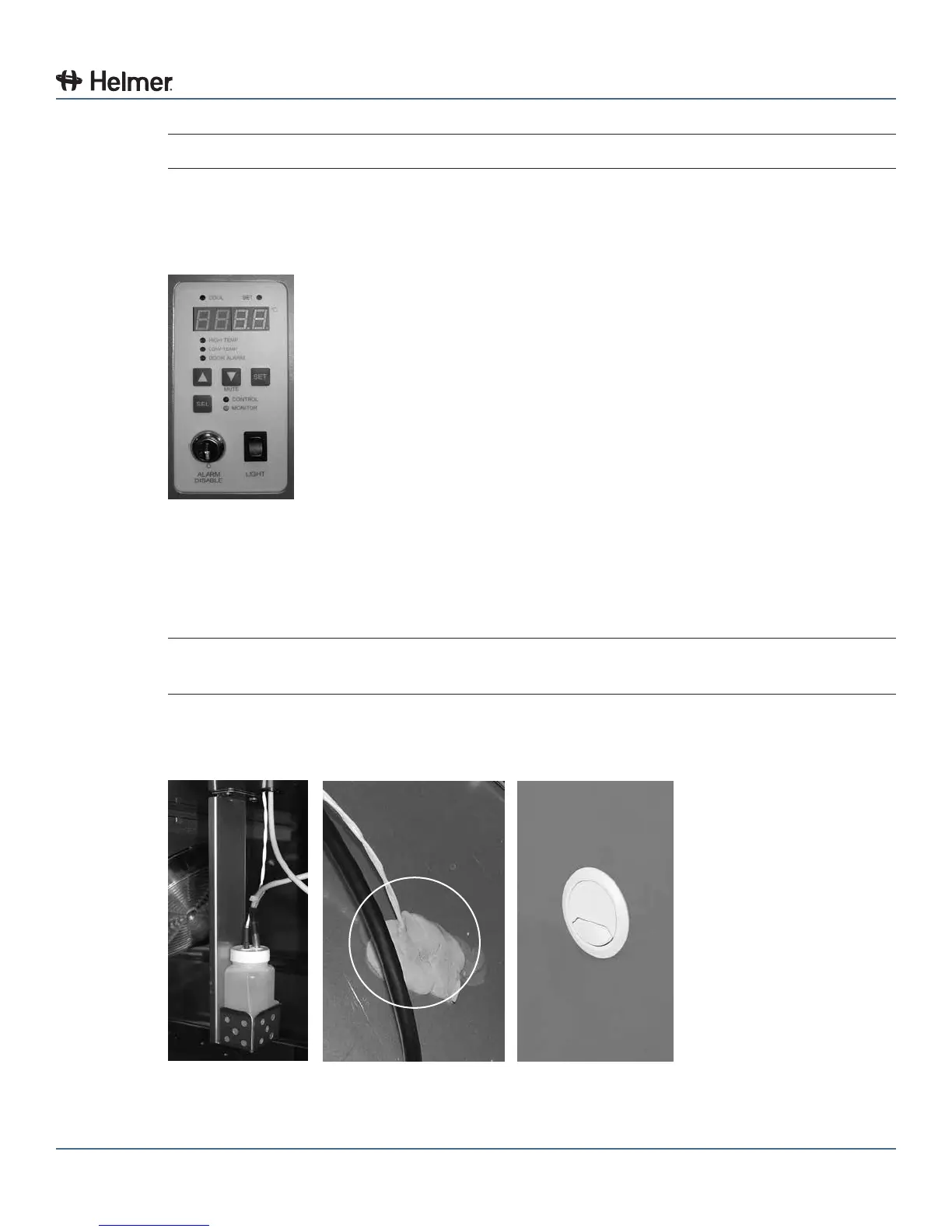

Laboratory monitoring and control system.
3.3 Temperature Probes
Number and location of probes varies by model. External probes may be introduced through existing top
port and immersed in existing probe bottle.
NOTE Probes may also be introduced through the side port (side port availability varies,
depending on model).
For each probe bottle, use:
► Approximately 4 oz. (120 mL) of product simulation solution (10:1 ratio of water to glycerin).
Left: Probe bottle with temperature probe. Center: Access port as seen from top of refrigerator.
Right: Access port as seen from side of refrigerator.
