General Information
3.3.1 Fill Temperature Probe Bottle
NOTICE Temperature probes are fragile; handle with care.
1 Remove all probes from bottle and remove bottle from bracket.
2 Removecapandllwithapproximately4oz.(120mL)ofproductsimulationsolution.
3 Install cap and place bottle in bracket.
4 Replace probes, immersing at least 2” (50 mm) in solution.
3.3.2 Install Additional Probe Through Top Port
1 Peel back putty to expose port.
2 Insert probe through port into chamber.
3 Insert probe into bottle.
4 Replace putty, ensuring a tight seal.
3.3.3 Install Additional Probe Through Side Port
1 Remove the interior and exterior plugs to expose the side access port.
2 Insert probe through port into chamber.
3 Insert probe into bottle.
4 Replace plugs, ensuring a tight seal.
3.4 Internal Outlet
If installed, this duplex outlet, with vapor-proof cover and a GFCI (ground fault circuit interrupter), provides
a power source for operating devices inside refrigerator.

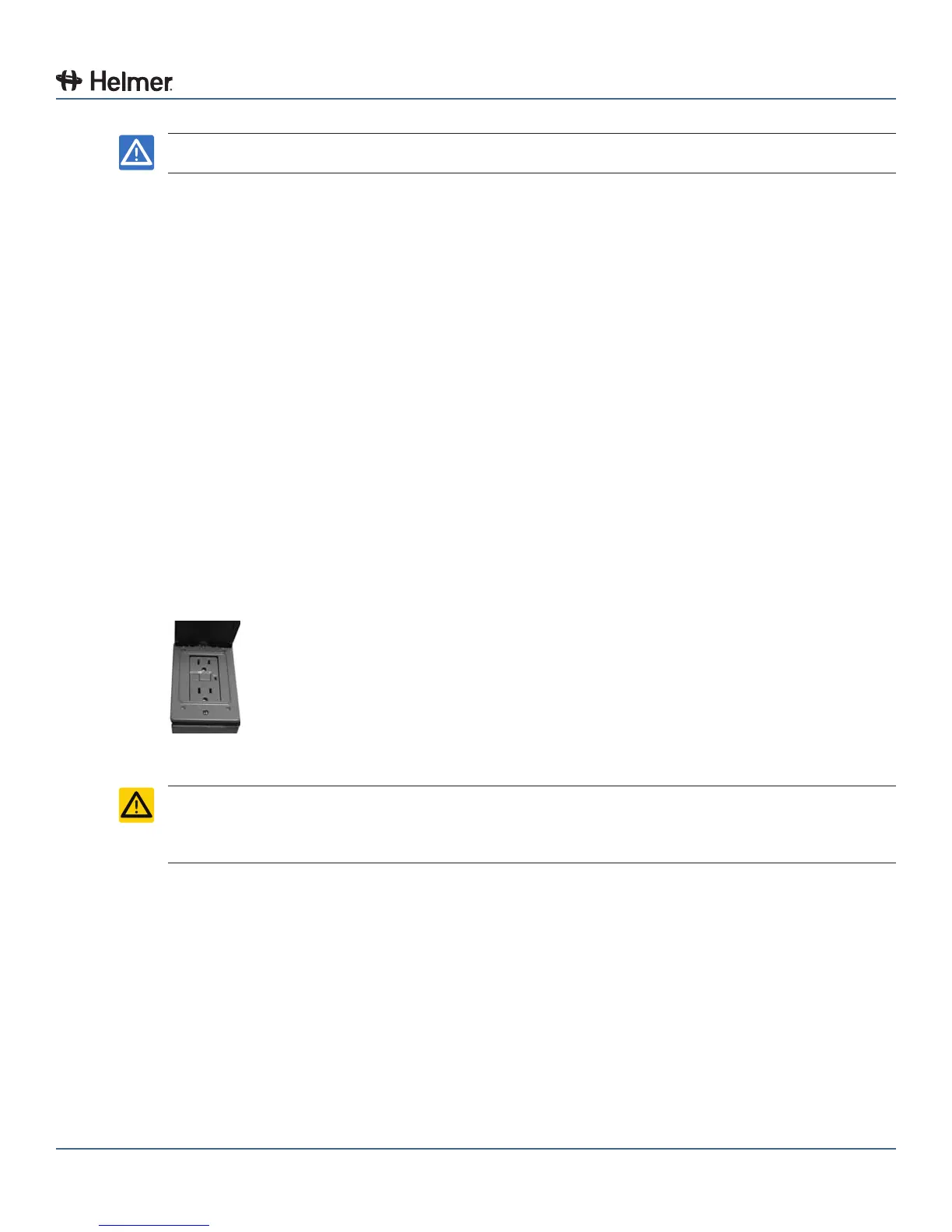

Internal duplex outlet
CAUTION ► The internal outlet is rated for 115 V, 15 A. Do not plug any device into these outlets
that exceeds this rating.
► Test the GFCI periodically to ensure proper, safe operation.
3.5 Chart Recorder
If installed, refer to the Temperature Chart Recorder Operation and Service Manual on CD.
The chart recorder has a battery system, enabling a period of continuous operation if power is lost.
Battery life varies by manufacturer as well as voltage level remaining. Providing full power is available,
backup power for the temperature chart recorder is available for up to 14 hours.
Prior to use:
► Connect the chart recorder to AC power.
► Install battery.
► Add paper.
► Install the chart recorder probe in the probe bottle, through the top port.
► Calibrate chart recorder to match chamber temperature.
