2.1 Procedure
Measurement
Preparations Chapter 2

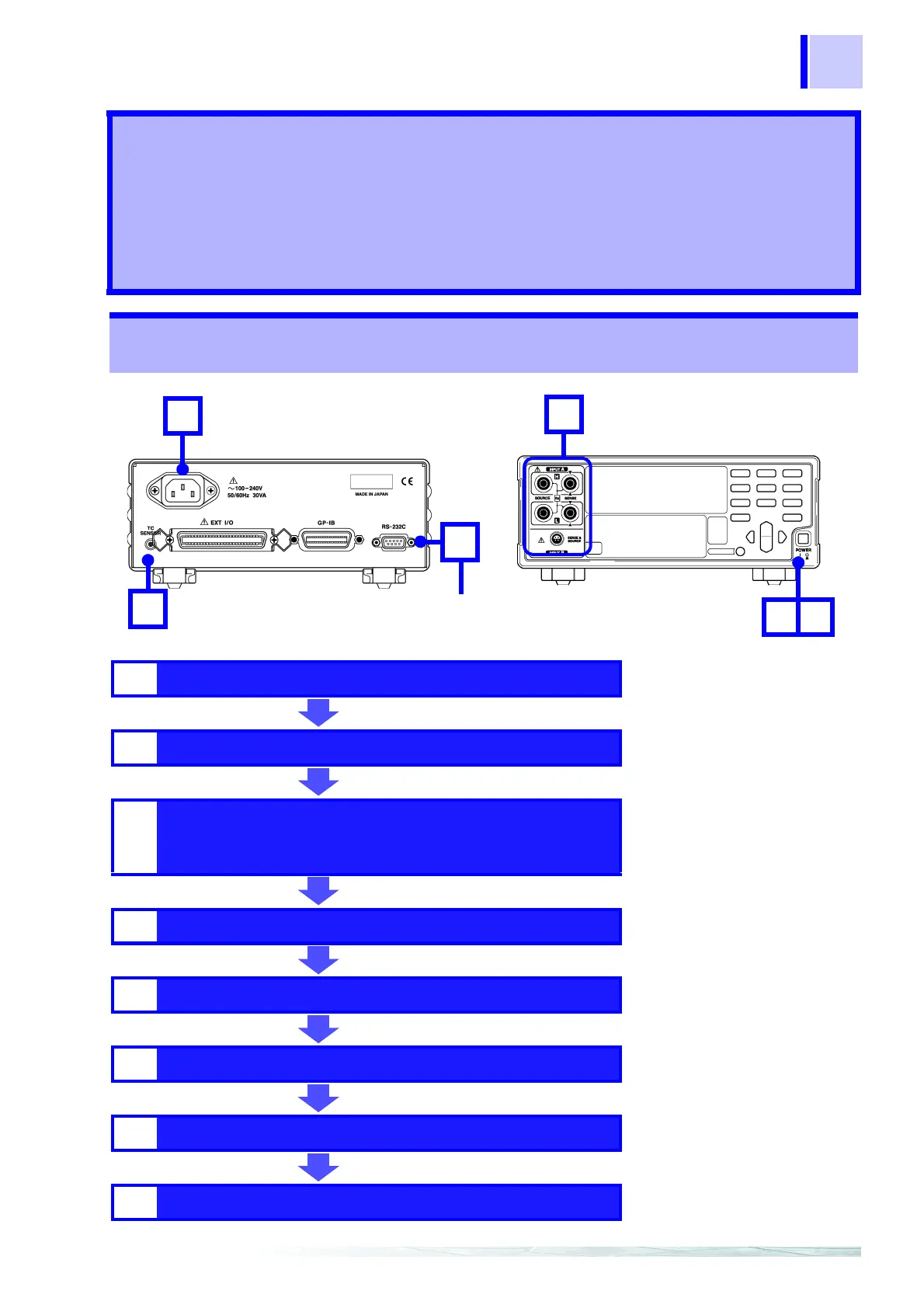

2.1 Procedure
1
Connecting the power cord.
2
Connect the test leads to the instrument.
3
(If Temperature Correction is needed)
Connect the temperature probe, an analog
temperature probe, or 3444/ 3445.
4
Turn the power on.
5
Select the line frequency.
(Page 25)
6
Select the measurement terminals.
(Page 26)
7
Set measurement settings, and measure.
Measurement Example (Page 29)
Settings (Pages 37 and 45)
8
Turn the power off.
Rear Panel
Front Panel
2
Temperature measurement
Temperature Probe (Page 21)
Analog Output Thermometer (Page 22)
1
3
4 8
(Page 19)(Page 18)
(Page 24)
Temperature measurement via
RS-232C interface (3444/3445)
(Page 23)
3
