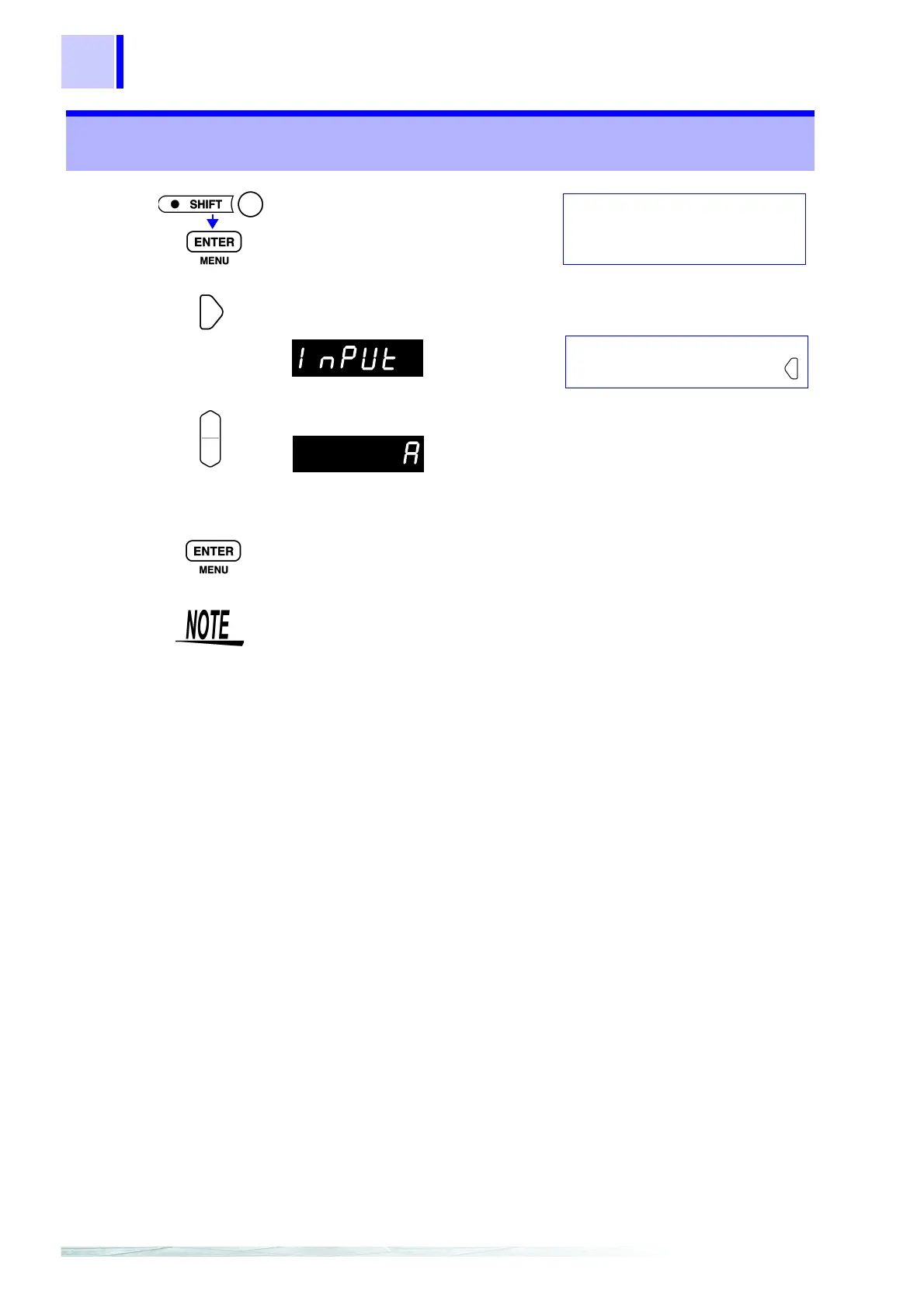

2.9 Selecting the Measurement Terminals
26
2.9 Selecting the Measurement Terminals
1
(SHIFT Lamp lit)
The Menu display appears.
2
Select the Measurement Terminal selection display.
(Refer to the Menu displays (Page 15))
3
Select the measurement terminals to be used.
4
Applies settings and returns to the Measurement display.
When continuing setting from
Line Frequency Selection,
skip this step.
When setting immediately after
Line Frequency setting, press .
(Main Display)
(Sub Display)
A....... INPUT A (with four separate banana jack terminals)
b ....... INPUT B (multipolar connector)
Do not connect test leads to both INPUT A and INPUT B.
SENSE-L and SOURCE -L are always connected. Note that multiple
measurements cannot be performed simultaneously.
To Next Page
