1.3 Names and Functions of Parts
1.3 Names and Functions of Parts

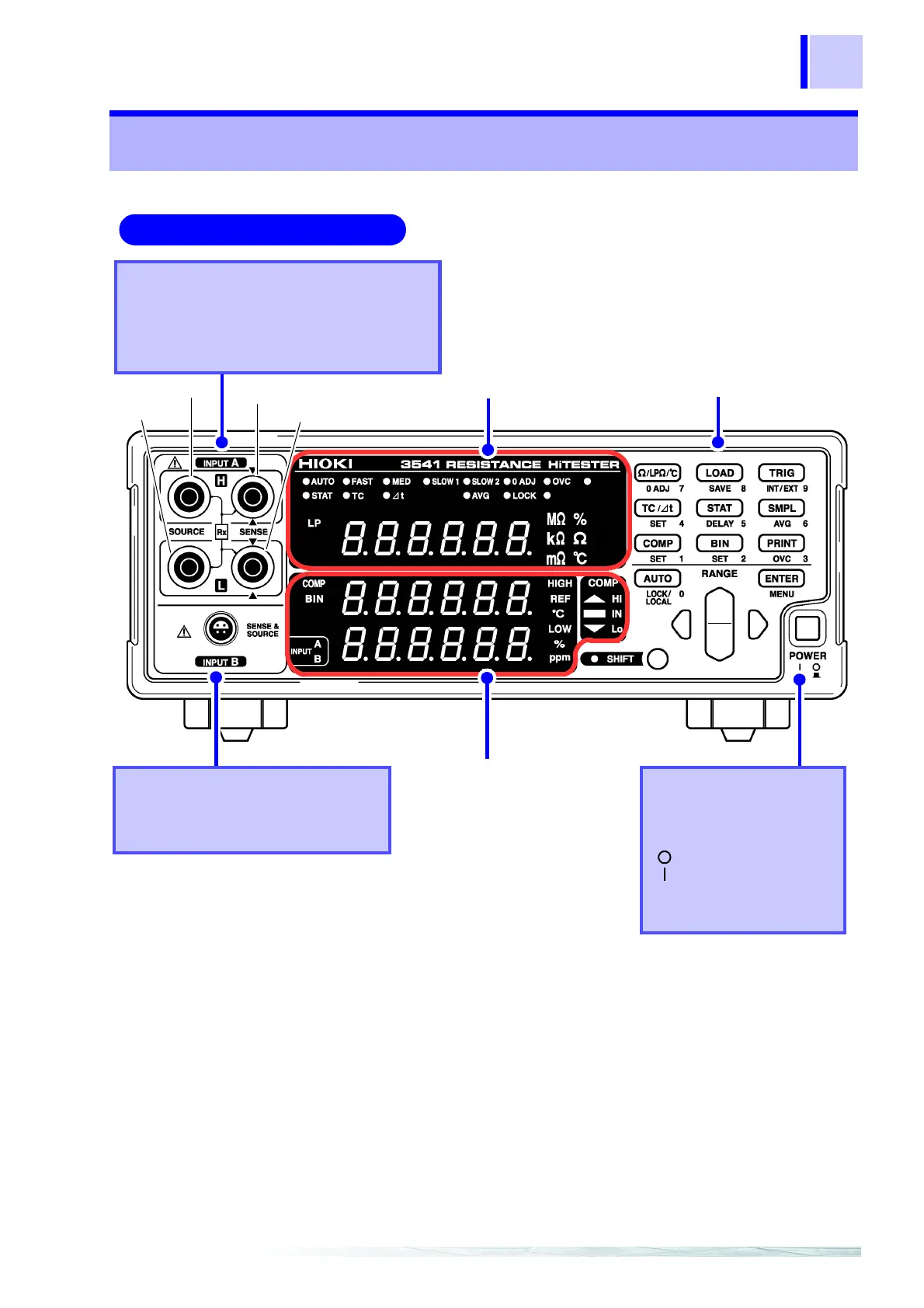

Front Panel
POWER Switch
Turns the instrument on
and off.
: Power OFF
: Power ON
❖ (Page 24)
Input Terminals INPUT A
Connect the supplied 9287 CLIP TYPE
LEAD or optional measurement leads.
❖ Connections: (Page 19)
Operating Keys
❖ (Page 13)
Input Terminals INPUT B
Connect a multipolar plug.
❖ Connections: (Page 19)
Display
Sub Display
❖ (Page 12)
SOURCE-H
SOURCE-L
SENSE-H
SENSE-L
Display
Main Display
❖ (Page 12)
