13

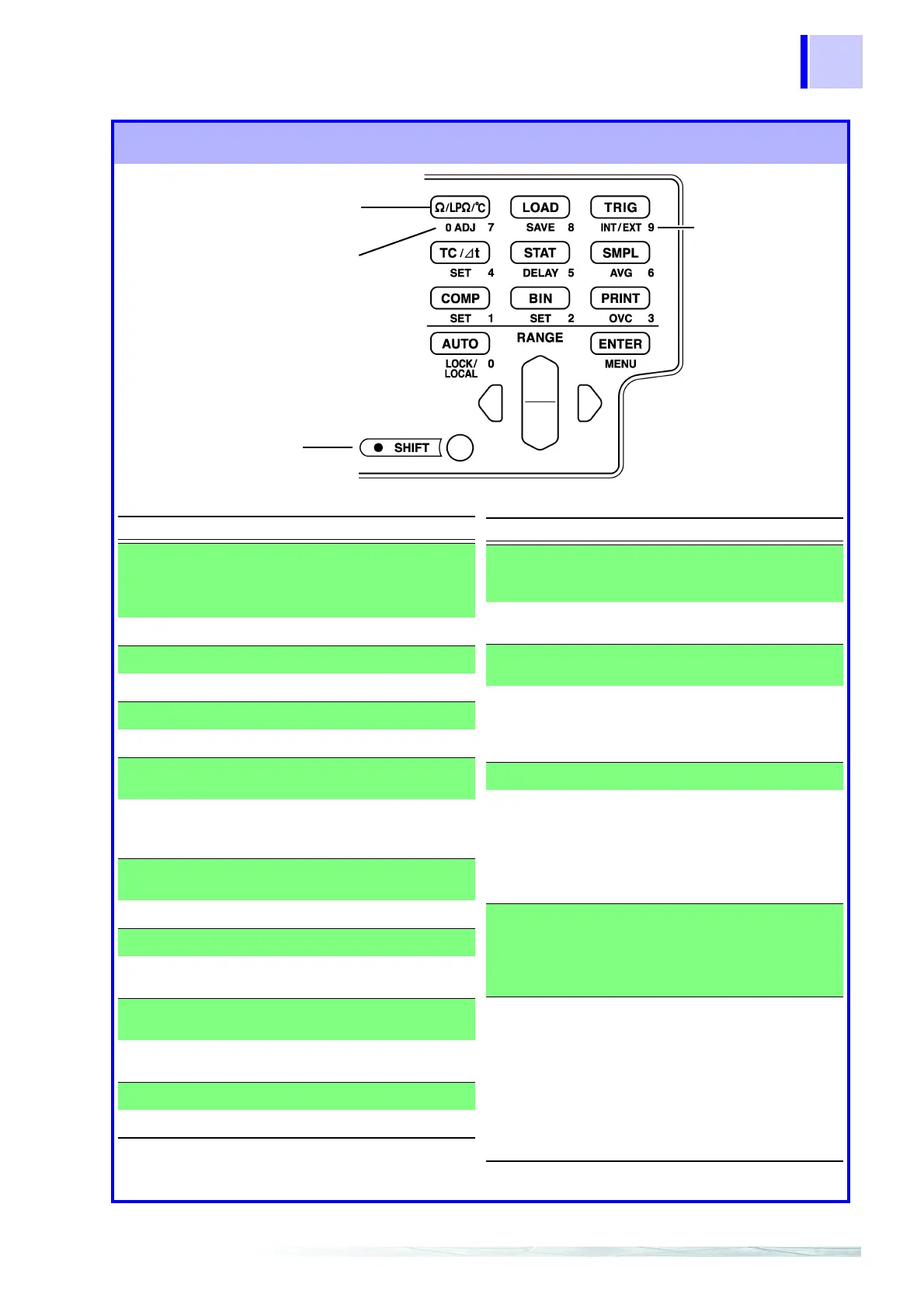

1.3 Names and Functions of Parts
Operating Keys
To use a function marked on a
key, just press the key.
To use a function printed under
a key (blue letter), press the
SHIFT key first (and confirm
the SHIFT lamp is lit),
and then the key.
Operating Key Description
Ω/LPΩ/°C
Select the measurement function (4-
terminal resistance, low-power 4-
terminal resistance or temperature
measurement).
[ 0 ADJ ]
Executes zero-adjustment.
LOAD
Loads saved settings.
[ SAVE ]
Saves settings.
TRIG
Use for manual triggering.
[ INT/EXT ]
Selects internal/external triggering.
TC/∆t
Switches Temperature Correction or
Temperature Conversion on and off.
[ SET ]
Sets parameters for Temperature
Correction or Temperature
Conversion.
STAT
Displays and sets statistical
calculation results.
[ DELAY ]
Sets the trigger delay.
SMPL
Selects the sampling rate.
[ AVG ]
Activates Averaging function
settings.
COMP
Switches the Comparator function on
and off.
[ SET ]
Activates Comparator function
setting.
BIN
Switches the BIN function on and off.
[ SET ]
Activates BIN function setting.
Operating Key Description
PRINT
Sends measurement values and
statistical calculation results to the
printer.
[ OVC ]
Switches the Offset Voltage
Compensation function on and off.
AUTO
Switches between automatic and
manual range selection.
[ LOCAL/
LOCK ]
LOCAL: Reverts from the
communications state.
LOCK: Switches the Key-Lock
function on and off.
ENTER
Applies settings.
[ MENU ]
Selects various items.
(Selects temperature correction/
conversion, calibration on/off, key-
click on/off, interface, line frequency
and setting/system reset)
❖ (Page 15)
RANGE
Up/Down:Changes setting value or
numerical value, and range
selection.
Left/Right: Moves the setting item or
digit.
SHIFT
• Enables the functions of the
operating keys marked in blue.
The lamp is lit when the SHIFT
state is active.
• Cancels settings in various setting
displays. (Returns to the
Measurement display without
applying settings.) However, this
does not apply to Menu display.
SHIFT Lamp
Use as ten-keys to
enter numerical
values.
(Numerical values
can be used with the
RANGE key.)
[ ]: Enabled after pressing the SHIFT key (SHIFT lamp lit).
To Next Page
