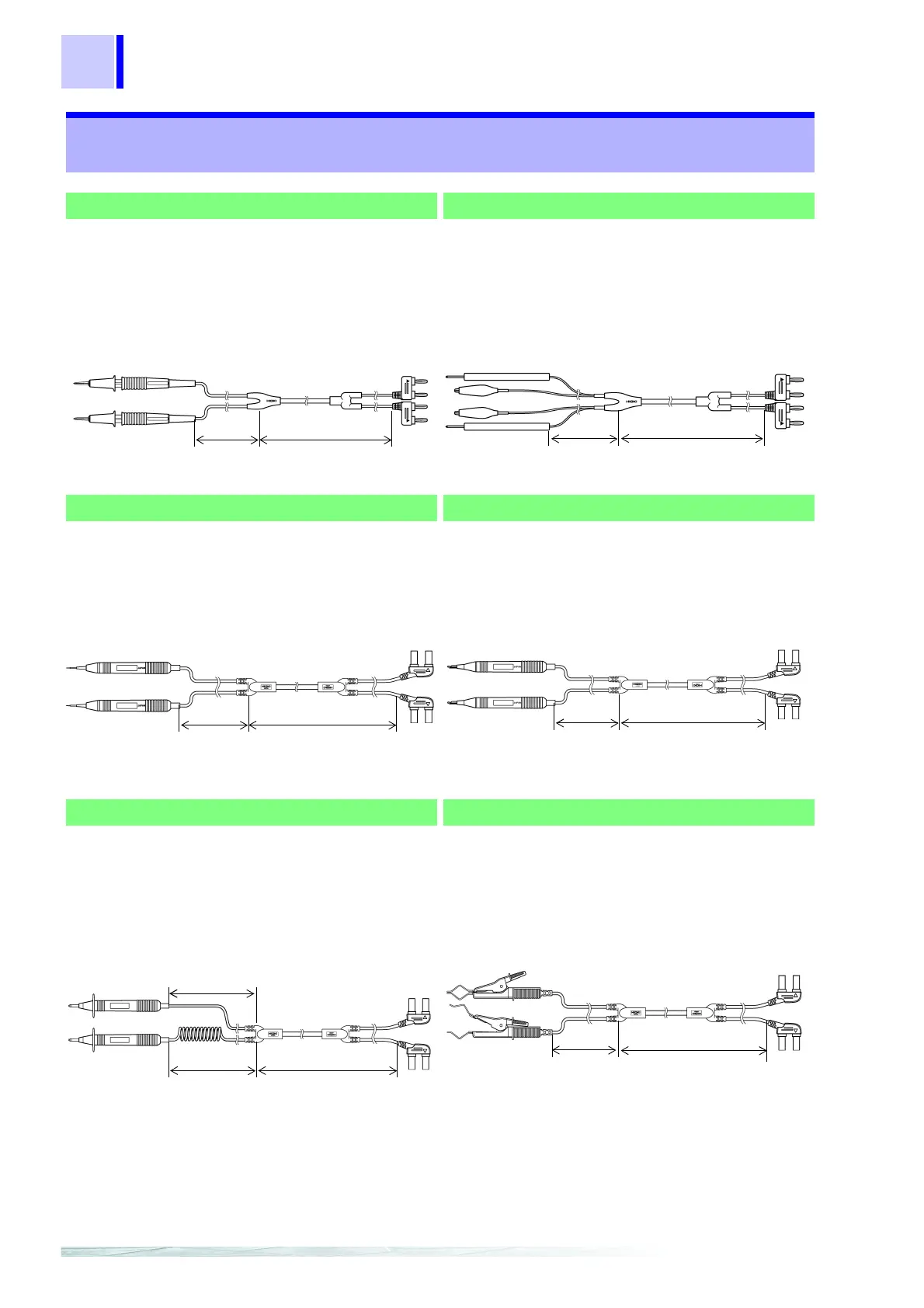

Appendix 6 Test Lead Options
176
Appendix 6 Test Lead Options
9452 CLIP TYPE LEAD 9453 FOUR TERMINAL LEAD
The probes have pincer-type tips.
Allows reliable four-terminal measurements even on
test objects with small contacts such as relay
terminals and connectors.
Bifurcation-to-probe length: approx. 200 mm
Plug-to-bifurcation length: approx. 800 mm
The SOURCE leads of this four-terminal lead set have
covered alligator clips, and the SENSE leads have
standard test probes. Use for measuring printed
circuit board pattern resistance, and where SOURCE
and SENSE leads need to be connected separately.
Bifurcation-to-probe length: approx. 300 mm
Plug-to-bifurcation length: approx. 800 mm
9455 PIN TYPE LEAD 9461 PIN TYPE LEAD
The probe tips have a four-terminal structure
designed for checking for floating IC leads on printed
circuit boards. Correct measurements are obtained
even with very small test objects.
Bifurcation-to-probe length: approx. 250 mm
Plug-to-bifurcation length: approx. 400 mm
These probes are designed to be pressed on flat
contact surfaces unsuitable for clipping, or for test
objects with small contact areas such as relay
terminals and connectors.
Bifurcation-to-probe length: approx. 250 mm
Plug-to-bifurcation length: approx. 400 mm
9465 PIN TYPE LEAD 9467 LARGE CLIP TYPE LEAD
These leads are ideal for large test objects for which
clip leads are unsuitable.
Four-terminal measurements are made just by
pressing the tips on the test object.
Bifurcation-to-probe length: approx. 100 mm
(Coiled-cord lead: approx. 550 mm max.)
Plug-to-bifurcation length: approx. 1700 mm
These leads are designed to attach to test object with
large diameter contacts. Four-terminal measurements
can be made just by clipping.
Bifurcation-to-probe length: approx. 250 mm
Plug-to-bifurcation length: approx. 850 mm
Maximum clip diameter: approx. 29 mm
200 mm 800 mm
300 mm 800 mm
400 mm250 mm
400 mm250 mm
1,700 mm
Max. 550 mm
100 mm
850 mm250 mm
