7.3 Interface Selection
92
Turn the 9670 PRINTER on while holding the FEED button.
Then press SELECT to set as needed according to print results.
The settings are as follows:
International char = Japan
Print mode = Graphic
Character set = 24Dot ANK Gothic type
Select switch = Enabled (ON)
Baud rate =19200 bps
Bit length = 8 bits
Parity = None
Data control = SBUSY
Paper selection = Normal paper
Upright/inverted = Upright printing
Auto power off = Enabled (ON) [as needed]
Battery mode = Disabled (OFF) [as needed]

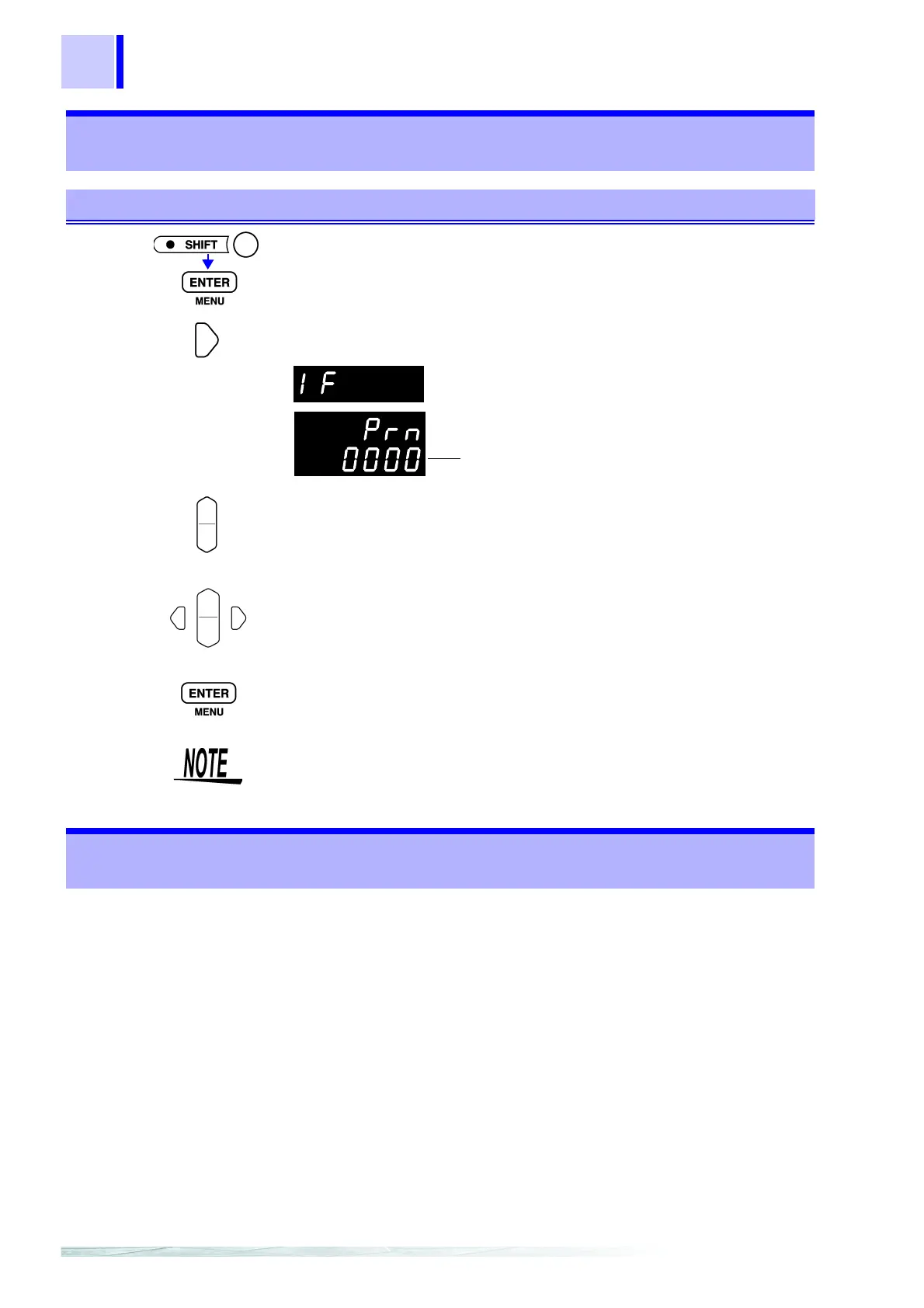

7.3 Interface Selection
Set the Instrument Interface selection to Printer
1
(SHIFT Lamp lit)
The Menu display appears.
2
Select the Interface Selection display.
(Refer to the Menu displays (Page 15))
Select Printer on the Sub Display.
rS.......... RS-232C
GP-Ib.... GP-IB
Prn ....... Printer
3
Set the print interval time.
0000 .............. Interval printing is OFF. (Printing is carried out once
when PRINT key is pressed.)
0001 - 3600 ... Sets the print interval time in seconds.
4
Applies settings and returns to the Measurement display.
(Main Display)
(Sub Display)
Print interval
Or ten-keys
While carrying out temperature measurement via the RS-232C
interface, the printing functions are not available.
❖ Temperature measurement via RS-232C interface (using the 3444/3445
TEMPERATURE HiTESTER+ 3909 INTERFACE PACK) (Page 34)
7.4 Setting of the 9670 PRINTER
