Appendix 7 Rack Mounting
178
By removing the screws on the sides, this instrument can be installed in a rack mounting plate.

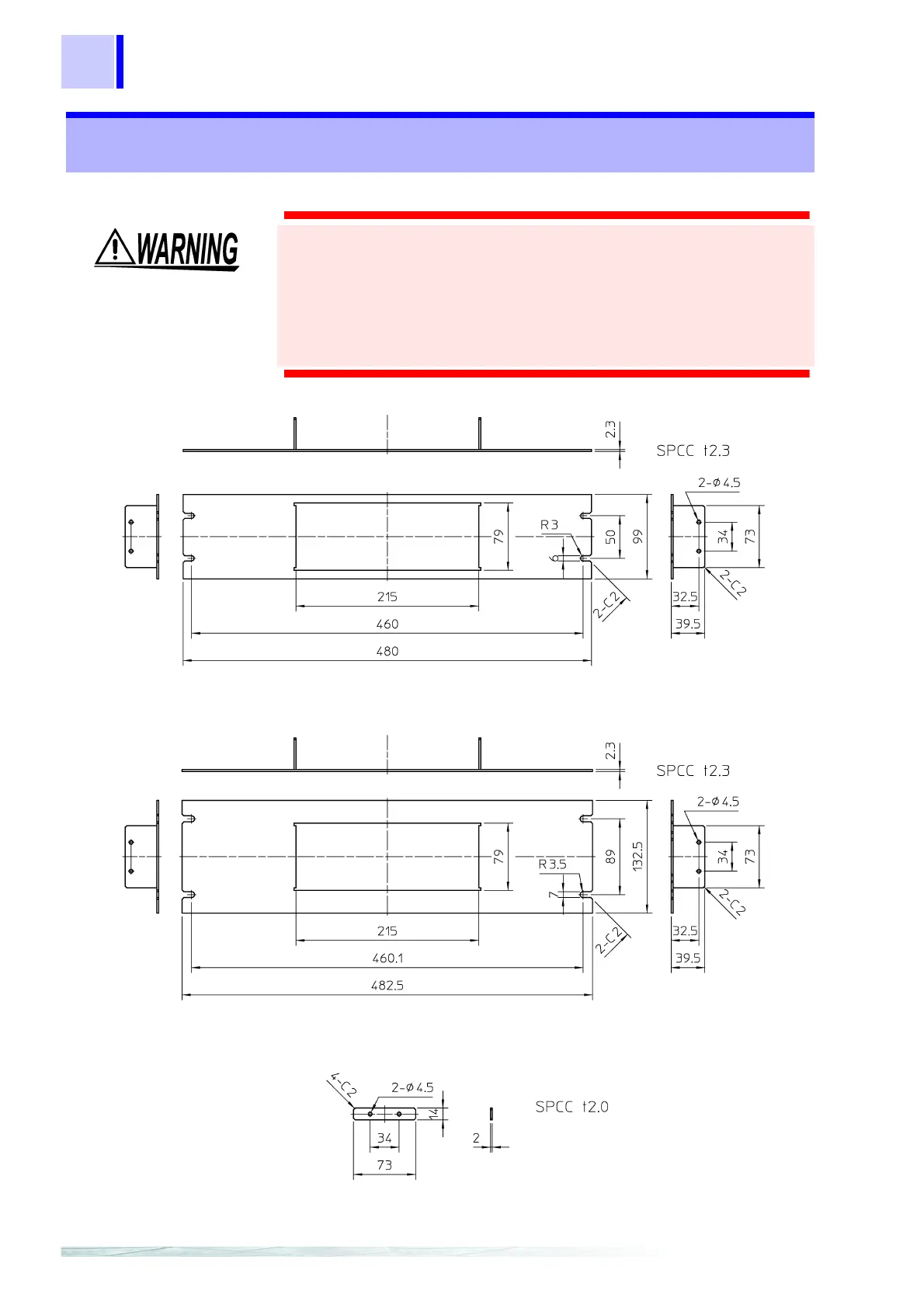

Rack Mounting Plate Template Diagram and Installation Procedure
Appendix 7 Rack Mounting
Observe the following precautions regarding the mounting screws
to avoid instrument damage and electric shock accidents.
• When installing the Rack Mounting Plate, the screws must not
intrude more than 6 mm into either side of the instrument.
• When removing the Rack Mounting Plate to return the
instrument to stand-alone use, replace the same screws that
were installed originally. (Feet: M3 x 6 mm, Sides: M4 x 6 mm)
Rack Mounting Plate (JIS)
Rack Mounting Plate (EIA)
Spacer (Two Required)
