5.13 Panel Load Function
72
Function
Description
Loads the measurement settings saved by the Panel Save function
from internal non-volatile memory.
5.13 Panel Load Function

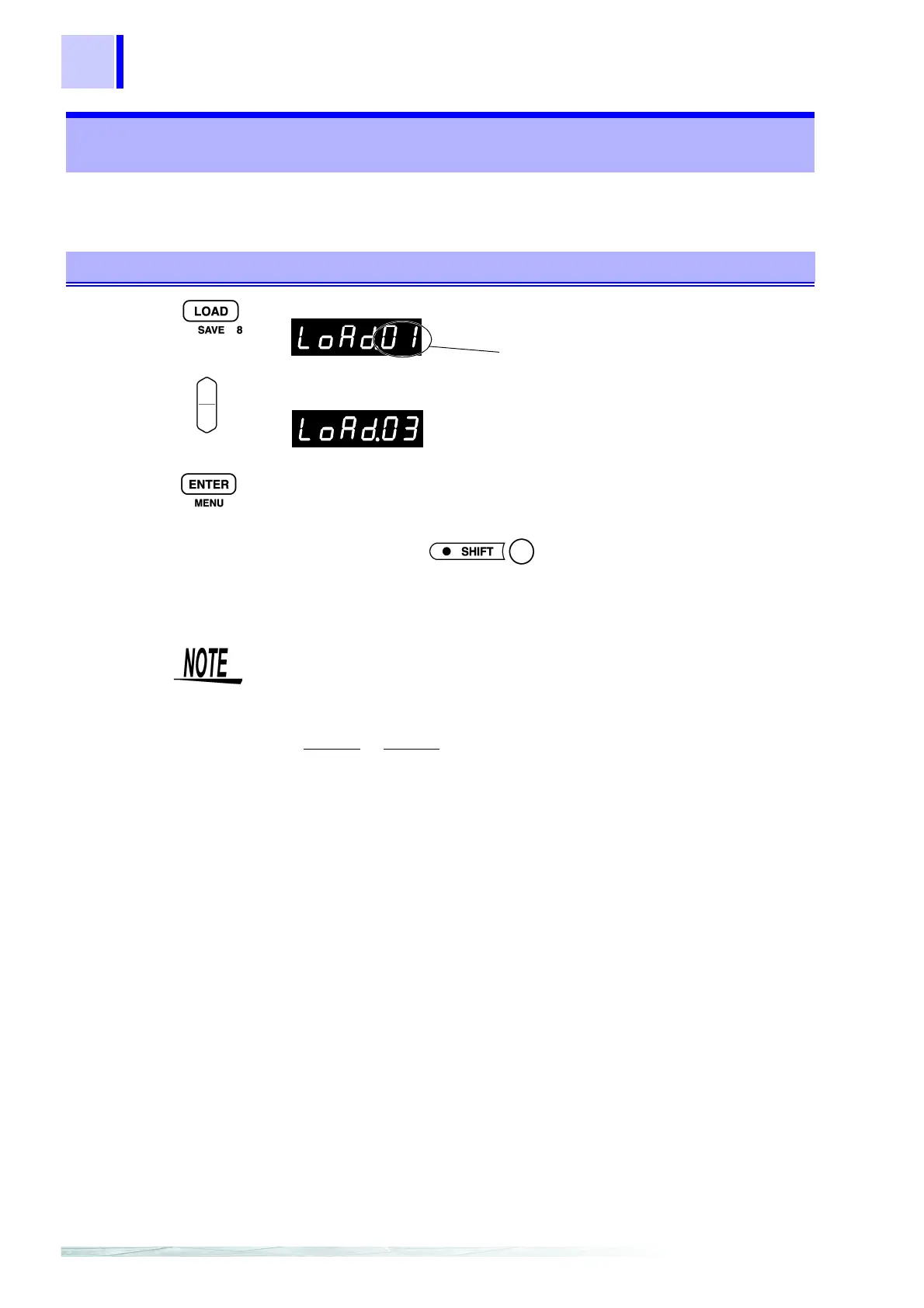

Loading Saved Measurement Settings
1
The Panel Loading display appears. The panel number blinks.
2
Select the panel number to load.
3
Loads the measurement setting state and returns to the Measurement
display.
To cancel loading:
Returns to the Measurement display without loading the measurement
setting state.
• If an unsaved Panel No. is selected, a warning beep sounds when
you press ENTER.
• When selecting a Panel No. with the up/down RANGE keys, only
the numbers of previously saved panels appear.
• Loading can also be executed using the TRIG signal and the
LOAD0
to LOAD4 pins of the EXT I/O interface.
❖ Chapter 6 External Control; Input Signals (Page 79)
(Main Display)
Panel No.
Or ten-keys
(Main Display)
(To load measurement settings
from Panel No.3)
